Hayward ECLI15MA - Exploded View and Spare Parts; Addendum

28
6. APPENDIX (continued)
6.3 Exploded view and spare parts / Addendum
ECLI15MA / 20MA / 30MA / 40MA (*)
2

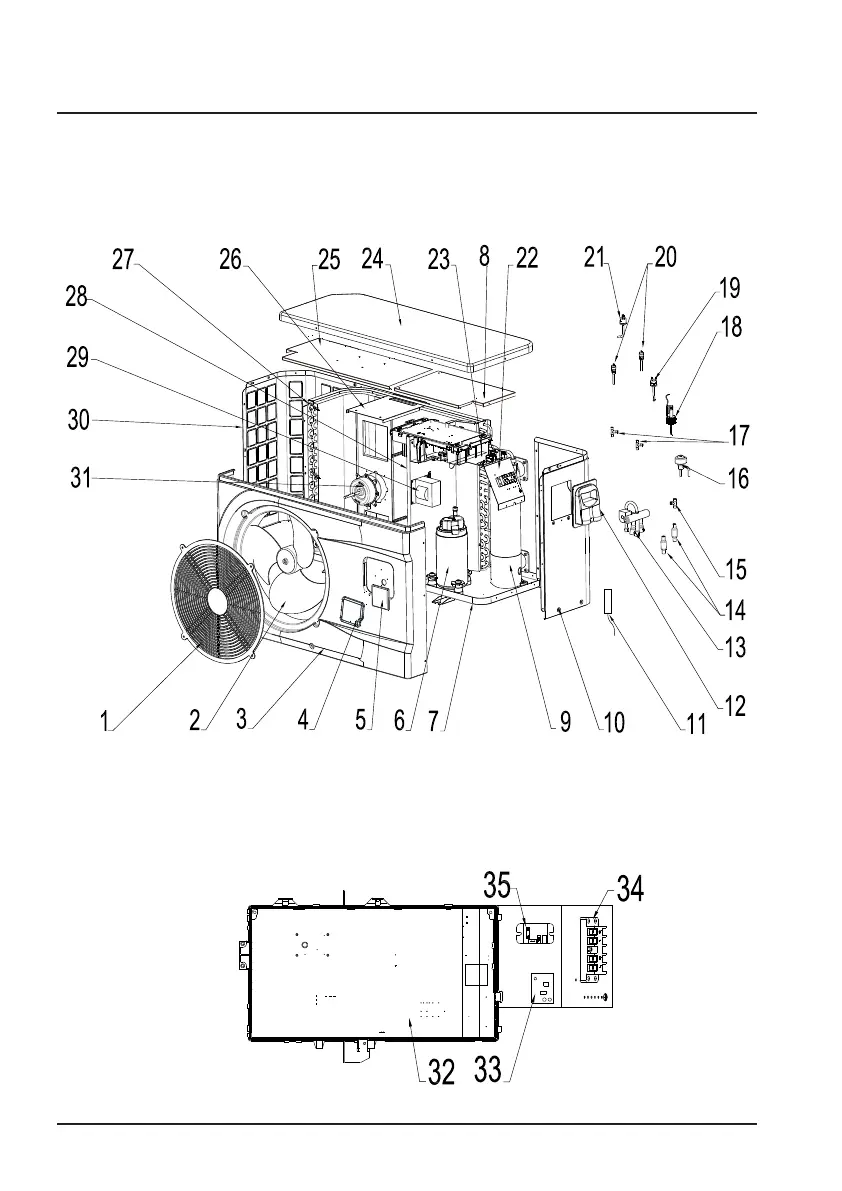

Exploded DiagramExploded Diagram
Model : ECLI15MA
1
No.
1
2
3
4
5
6
7
8
10
12
13
14
15
16
17
18
19
20
Note
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
Code
20000-220245
301030-00000006
80900099
80900320
82300038
20000-110448
80700961
80600037
80700445
32009-220029
2004-1437
20000-140178
304030-00000002
20000-140570
2000-1460
83000012
20000-360157
Part name
Fan blade
Front frame
Waterproof box of CP203
CP203
Compressor
Chassis assembly
Titanium tube heat exchanger
Right plate
Junction box
Four - way va lve
Filter
Tee
EEV
Tee
Water flow switch
Pressure switch
Fan protection net
SPEC
461 ABS+30%GF B
ABS 3mm anti UV black stripe
Gray 7024
Diwen MXL230
SVB140FCAMC
Black 8032
9.52 5m 110
Galvanized sheet 1 black 8032
B ABS black
Sanhua-SHF-9H-35U-P
9.52-2 6.35(T) 1.0
DPF(B)1.65C-007
6.5-2 6.5(T) 0.75 T2M
PSL-1 3/4inner thread
405 134- 8(7) 3
9.7- 9.7( 19) T2M
0.30MPa/0.15MPa 0.05 normally open
40mm 1/2
21
22
23
25
26
27
28
29
30
31
32
33
34
35
2
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
20000-140150
2001-3605
80701502
80900055
80702345
80700218
301060-20250002
80700215
82500006
80700446
80200018
82300052
82600008
4000-3901
20000-360297
Pressure switch
Support frame
Top cover
Top support plate
Motor supporter
Finned heat exchanger
Median septum
Reactor
Rear net
DC motor
Driver board
Switch power supply
5-Position wire holder
Relay
Needle valve
normally3.2MPa/4.4MPa 0.15 closed
Galvanized sheet 1 black 8029
ABS 3mm anti UV black stripe
Galvanized sheet 1 black 8029
black 8029
650 245 550 7 1
Galvanized sheet 1 black 8029
R1650FNKZ 16A 50Hz 5mH
Galvanized sheet 1 black 8032
ZWS40-E51
EPS-15-12m
RS9101C-5(450V~ 4mm2 )
HATF903AS30AC220 AC220V 30A
24
72200094 82300052+82400021 1 Electric control
2AC32I13WO1
80702344
Top support plate
Galvanized sheet 1 black 8029
9
11
11
11
11
11
1
1
1
1
83000044
83000049
83000050
83000052
Suction temp sensor
Ambient temp sensor
Water outlet sensor
Exhaust temperature sensor
Coil temperature sensor
Water intlet sensor
150-502-98674(5K) 560mm
150-502-98674(5K) 350mm
150-502-98674(5K) 410mm
150-502-98674(5K) 850mm
11
1
83000026
150-503-96115(50K) 660mm
1
83000051
150-502-98674(5K) 680mm
