Hayward ECLI15MA User Manual

6
2. TECHNICAL SPECIFICATIONS (continued)

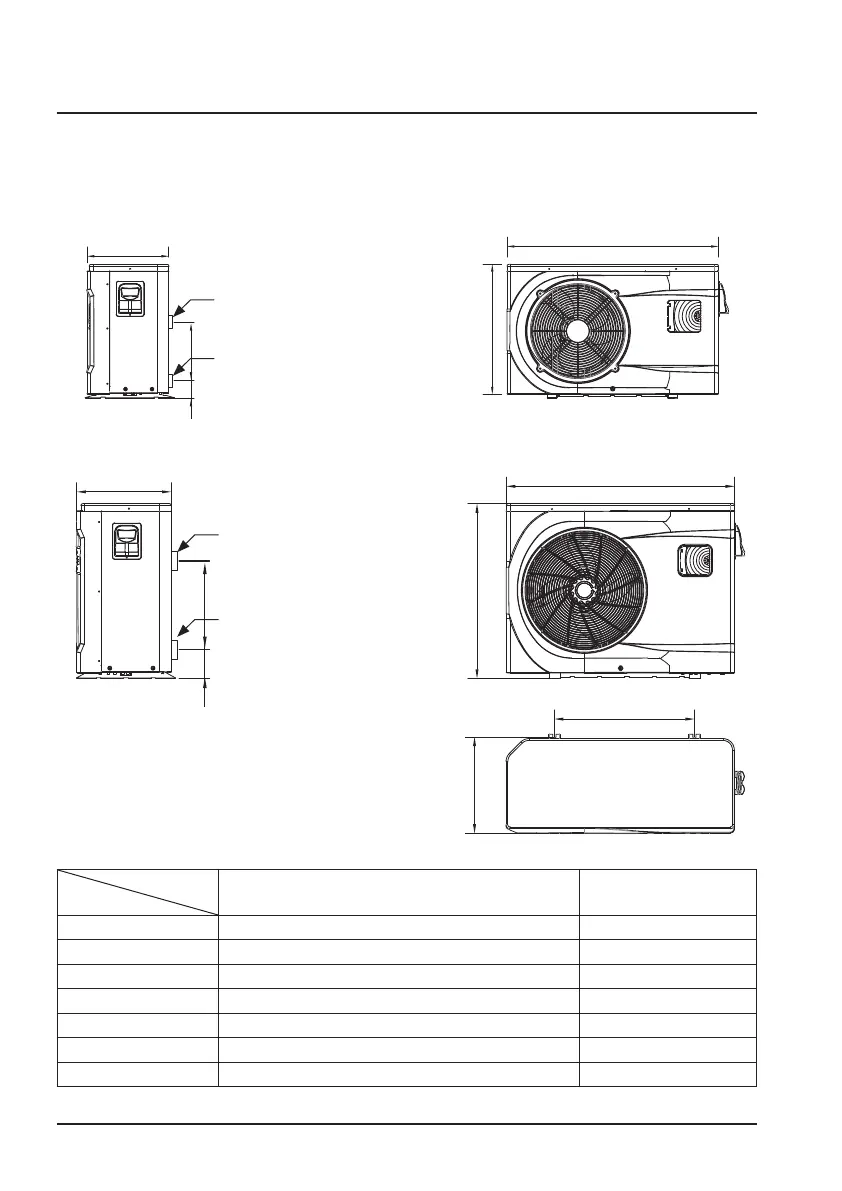

2.3 Dimensions
Models:
ECLI15MA / ECLI20MA / ECLI30MA*
A
C
D
E
B
A
F
G
C
D
E
B
Water inlet Ø 50 mm
Water outlet Ø 50 mm
Water outlet Ø 50 mm
Unit: mm
Type(*)
Size
ECLI15MA / ECLI20MA / ECLI30MA ECLI40MA
A 956 1002
B 360 415
C 605 767
D 350 350
E 98 101
F 545 615
G 380 442
Water inlet Ø 50 mm
ECLI40MA*
(*) Check the machine references on the conversion table (see label on the cover of the manual).

Hayward ECLI15MA Specifications

General

Model	ECLI15MA
Type	Inverter
Output Current	15A
Enclosure Rating	IP65
Input Frequency	60 Hz
Protection Features	Overvoltage, Overcurrent, Short Circuit
