Hayward EcoStar - Page 34

Inspect filter,
skimmer and
pump basket,
clear debris
and retry
NO

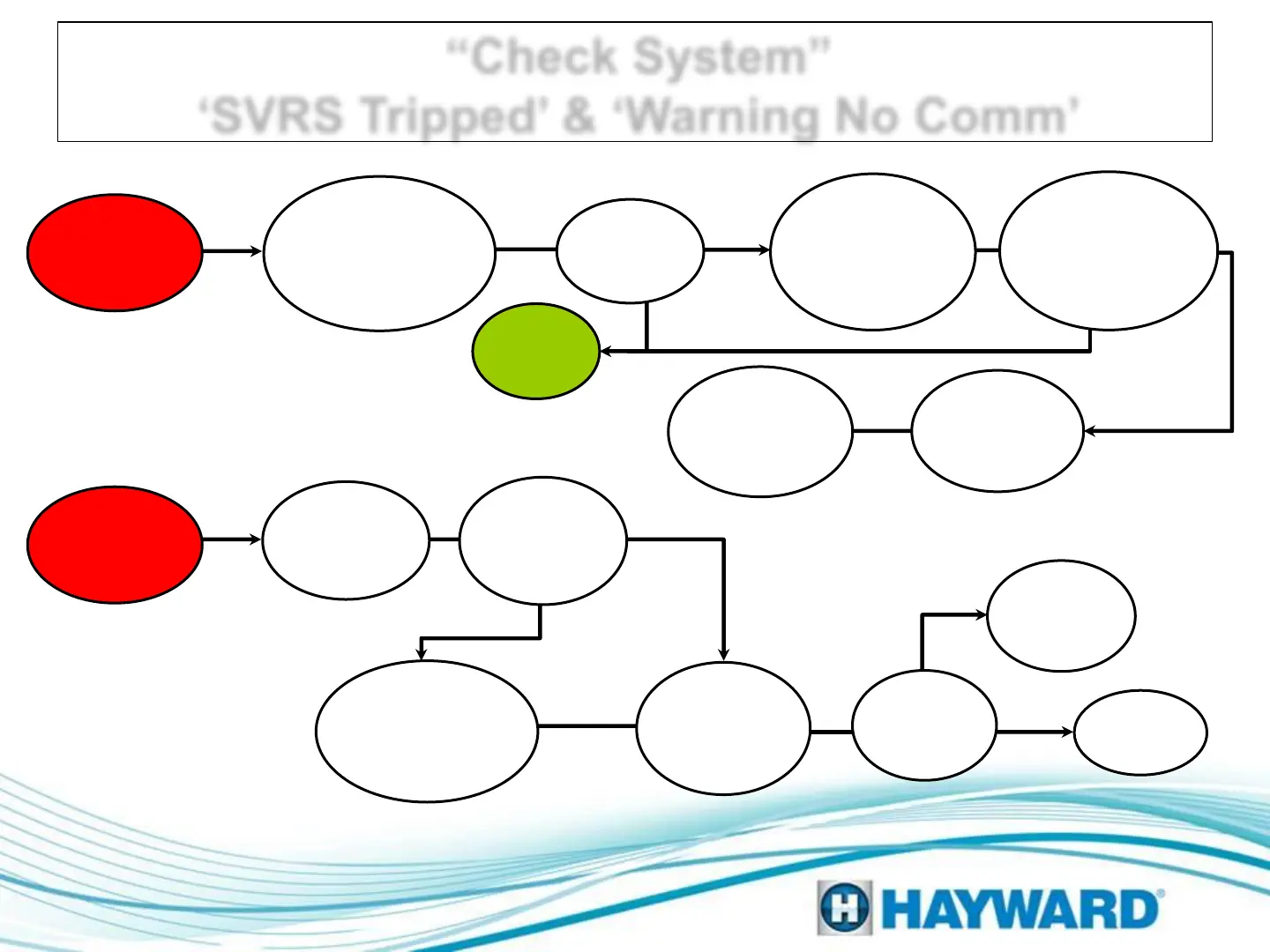

“Check System”
‘SVRS Tripped’ & ‘Warning No Comm’
Problem
solved
Inspect and
reconnect
data wire
YES
Is the
display
mounted on
the pump?
Warning No
Comm
(pg. 20-21)
SVRS
Tripped
(pg. 18-19)
NO
Check
diagnostics
under Drive
Rev.
Does trip
reappear?
YES
Is rev
reading
0.00?
Divert features
that affect
vacuum
pressures
NO
YES
Does trip
reappear AND
pump is hooked
up to Hayward
Automation?
Adjust Freeze
Protection, if
necessary
Enable ‘Filter
Off, Valve
Change’
YES
Replace
Drive
NO
Replace
wiring (off
pump only)
Remove display
from wall, plug
directly into
pump
Page 32
