USE ONLY HAYWARD GENUINE REPLACEMENT PARTS 7

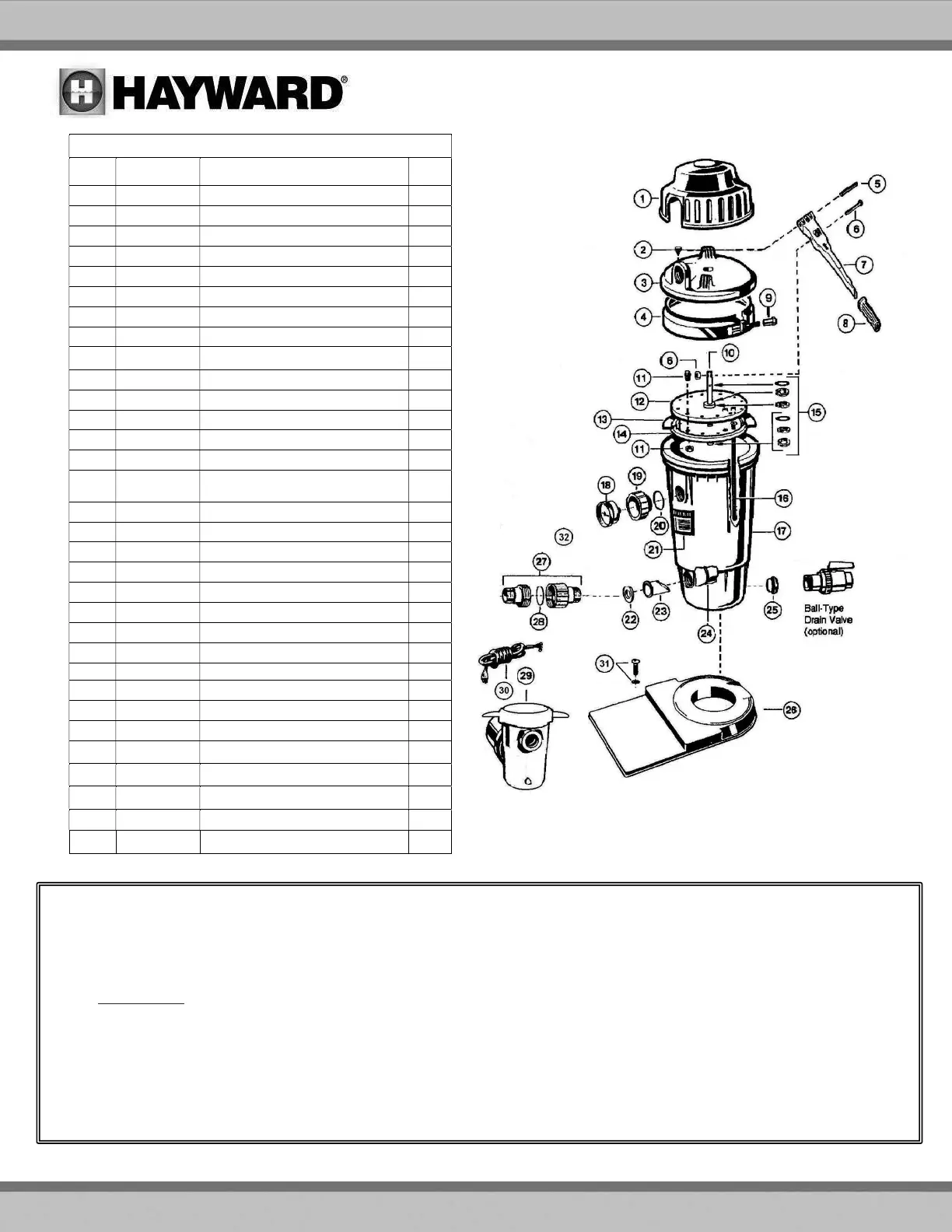

REPLACECMENT PARTS (WITH METAL-TYPE CLAMP)
REF. PART NO. D E SC R IPT I ON QTY
1 ECX5000D Bump Mechanism Cover 1
2 ECX1322A Vent Valve with O-ring 1
3 ECX5000BP Filter Head with Vent Valve 1
4 ECX5000C Clamp Assembly with Spring 1
5 ECX100Z9 Pivot Pin (long) 1
6 ECX4236A Shoulder Screw and Nut set 1
7 ECX1040 Bump Handle 1
8 ECX1037B Bump Handle Grip 1
9 ECX360JN Nickel Plated Sleeve Nut, 5/16” 1
10 ECX5000F Bump Shaft, 1/2" 1
11 SPX1500NYA Tube Sheet Bolt and Nut Set 12
12 ECX1004A Tube Sheet Top 1
13 ECX5000G Diaphragm Gasket 1
14 ECX1004 Tube Sheet Bottom 1
15 ECX1014A
(Includes 2 each O-ring, Retainer, Thrust
1
16 ECX1032PAK10
Flex-Tube Assembly (Set of 10) 72
17 ECX5000AP Filter Body w/Flow Diffuser 1
18 ECX27091 Pressure Gauge, back mount 1
19 ECX12866 Gauge/Inspection Port Adapter 1
20 ECX1287 O-ring for Gauge Adapter 1
21 ECX5029 Decal -Operation 1
22 SPX1055 Flow Controller 1
23 ECX4077B1 Check Valve 1
24 ECX1256 Flow Diffuser with Check Valve 1
25 SP1022C Drain Plug with Gasket 1
26 ECX1161 Platform Base 1
27 SP1480 1-1/2" Male Union 1
28 SPX142576 O-Ring 1
29 — Hayward Pool Pump 1
30
SPX1250WA 6 ft. Cord Set 1
31
ECX1108A Pump Mounting Screw Set (2) 1
SP0723 Ball-Type Drain Valve with Nipple 1
