PREVENTIVE MAINTENANCE
While Perflex filters are basically resistant to the difficulties often encountered as a result of chemical build-up in swimming pools, it is important to
keep in mind that the mineral content in a pool increases every day as a result of the chemicals and the normal water evaporation process. If the
concentration of minerals is allowed to get too high, the minerals will form deposits on the Flex-Tubes inside the filter, and will eventually result in
shortened filter cycles. To guard against this, a yearly chemical cleaning (soaking) of the Flex-Tube assembly is suggested. Use commercially
available 20% muriatic acid added to water in 1 to 1 ratio; or use other commercial filter element cleaner mixed according to the package
instructions. Use a plastic container.
CAUTION: Chemical Hazard –Chemicals can cause personal or property damage, to avoid use personal protective
gear when handling.
After cleaning, thoroughly flush all affected parts with cold water. Always wear gloves and eye protection when handling cleaning agents.
WINTERIZING
In areas where sub-freezing temperatures can be expected, the filter should be drained and removed from its operating location and stored indoors.
Prior to removal, cycle the filter as described under CLEANING.

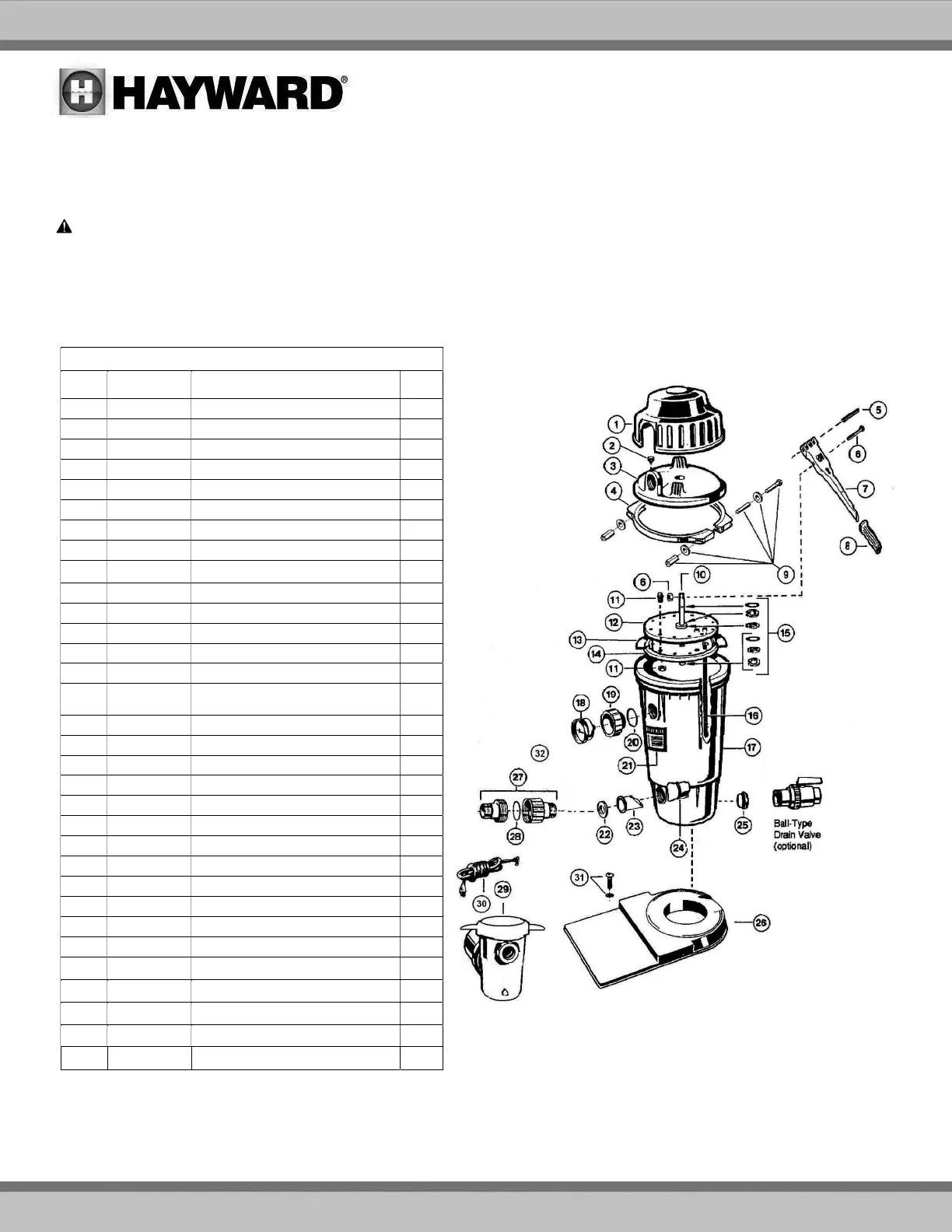

REPLACECMENT PARTS (WITH PLASTIC-TYPE CLAMP)
REF. PART NO. DESCR IP T ION QTY
1 ECX5000D Bump Mechanism Cover 1
2 ECX1322A Vent Valve with O-ring 1
3 ECX5000BP Filter Head with Vent Valve 1
4 ECX4000C Clamp Assembly with Hardware 1
5 ECX100Z9 Pivot Pin (long) 1
6 ECX4236A Shoulder Screw and Nut set 1
7 ECX1040 Bump Handle 1
8 ECX1037B Bump Handle Grip 1
9
ECX4000CHK
Hardware Kit for Clamp Assembly 1
10 ECX5000F Bump Shaft, 1/2" 1
11 SPX1500NYA Tube Sheet Bolt and Nut Set 12
12 ECX1004A Tube Sheet Top 1
13 ECX5000G Diaphragm Gasket 1
14 ECX1004 Tube Sheet Bottom 1
15 ECX1014A
(Includes 2 each O-ring, Retainer, Thrust
1
16 ECX1032PAK10
Flex-Tube Assembly (Set of 10) 72
17 ECX5000AP Filter Body w/Flow Diffuser 1
18 ECX27091 Pressure Gauge, back mount 1
19 ECX12866 Gauge/Inspection Port Adapter 1
20 ECX1287 O-ring for Gauge Adapter 1
21 ECX5029 Decal -Operation 1
22 SPX1055 Flow Controller 1
23 ECX4077B1 Check Valve 1
24 ECX1256 Flow Diffuser with Check Valve 1
25 SP1022C Drain Plug with Gasket 1
26 ECX1161 Platform Base 1
27 SP1480 1-1/2" Male Union 1
28 SPX142576 O-Ring 1
29 — Hayward Pool Pump 1
30
SPX1250WA 6 ft. Cord Set 1
31
ECX1108A Pump Mounting Screw Set (2) 1
SP0723 Ball-Type Drain Valve with Nipple 1
