Hayward S166T User Manual

IS210T Rev J
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS 6
SPECIFICATIONS (Table 2)
MODEL NUMBER
EFFECTIVE FILTRATION
AREA
MAXIMUM WORKING
PRESSURE @75°F
REQUIRED CLEARANCE MEDIA CAPACITY INSTALLED
HEIGHT
SIDE ABOVE TYPE AMOUNT
FT
2
M
2
PSI BAR INCH MM INCH MM FILTER SAND** LBS KG INCH MM
S144T (14”) 1.1 .10 50 3.45 18 460 18 460 0.45-0.55mm 50 22 32 815
S166T (16”) 1.4 .13 50 3.45 18 460 18 460 0.45-0.55mm 100 45 33 840
S180T (18”) 1.8 .17 50 3.45 18 460 18 460 0.45-0.55mm 150 68 35 890
S210T / S210T2 (21”) 2.2 .20 50 3.45 18 460 18 460 0.45-0.55mm 200 90 38 965
S220T / S220T2 (22”) 2.6 .25 50 3.45 18 460 18 460 0.45-0.55mm 250 115 41 1040
S244T / S244T2 (24”) 3.1 .29 50 3.45 18 460 18 460 0.45-0.55mm 300 135 42 1070
S270T / S270T2 (27”) 3.7 .34 50 3.45 18 460 18 460 0.45-0.55mm 350 160 43 1090
S310T2 (31”) 4.9 .46 50 3.45 18 460 18 460 0.45-0.55mm 500 225 48 1220
S360T2 (36”) 7.1 .66 50 3.45 18 460 18 460 0.45-0.55mm 700 315 53 1350

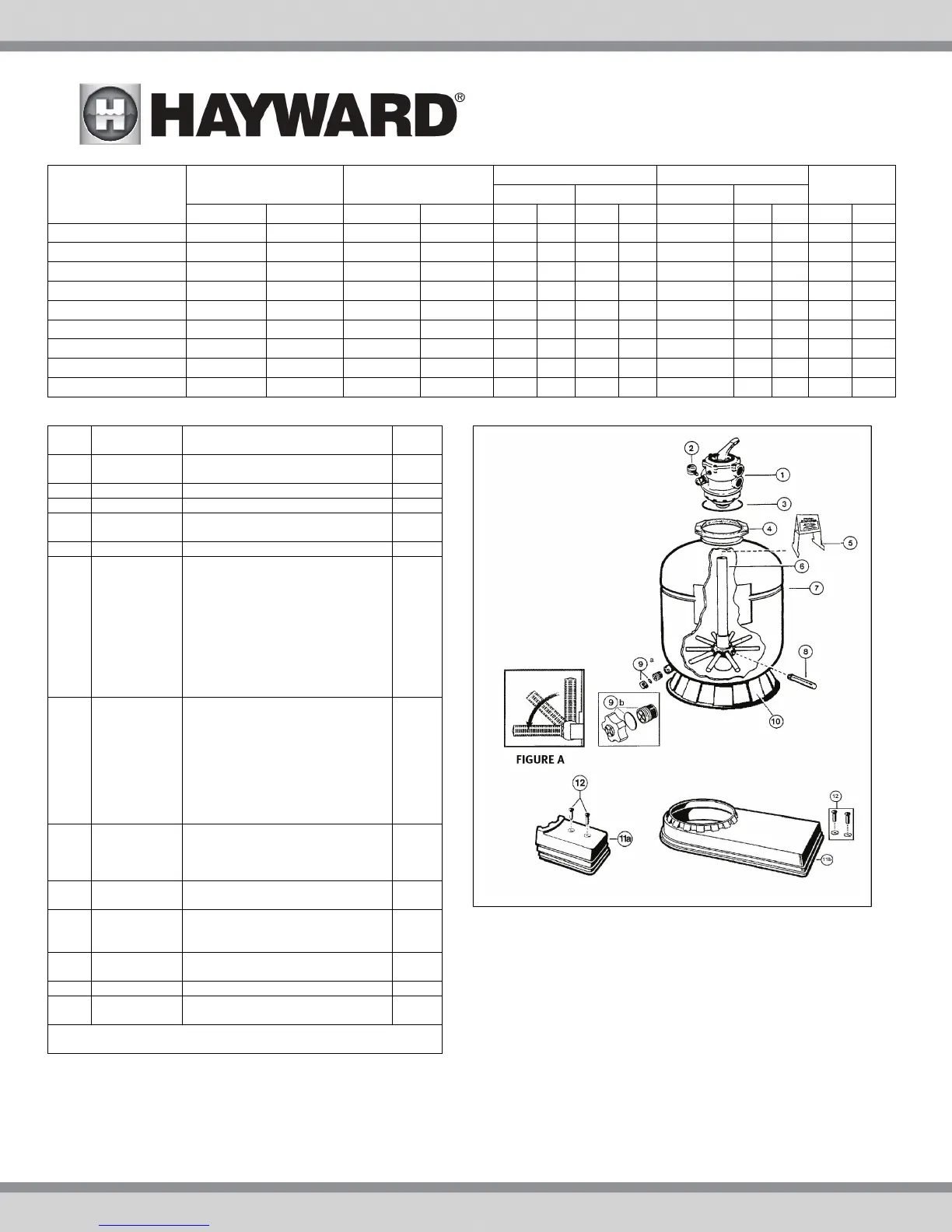

SPARE PARTS
REF
NO
PART
NO.
DESCRIPTION NO.
REQ
1 SP0714T
SP071620T
1 ½” Vari-Flo XL Control Valve
2” Vari-Flo XL Control Valve
1
2 ECX270861 Pressure Gauge 1
3 GMX600F Valve/Tank O-ring 1
4 GMX600NM
SX310N
Flange Clamp (Plastic)
Flange Clamp (Stainless Steel)
1
5 SX202S Sand Shield –Corrugated 1
6 SX144DA
SX164DA
SX180DA
SX210DA
SX220DA
SX244DA
SX244DA2X
SX270DA2X
SX310DA2
SX360DA
Folding Lateral Assy 14”
Folding Lateral Assy 16”
Folding Lateral Assy 18”
Folding Lateral Assy 21”
Folding Lateral Assy 22”
Folding Lateral Assy 24”, 27”
Folding Lateral Assy 24” T2
Folding Lateral Assy 27” T2
Folding Lateral Assy 31”
Folding Lateral Assy 36”
1
7 SX144AA1
SX164AA1
SX180AA1
SX210AA1
SX220AA1
SX244AA1
SX270AA1
SX310AA1
SX360AA2
Filter Assy less valve & clamp 14”
Filter Assy less valve & clamp 16”
Filter Assy less valve & clamp 18”
Filter Assy less valve & clamp 21”
Filter Assy less valve & clamp 22”
Filter Assy less valve & clamp 24”
Filter Assy less valve & clamp 27”
Filter Assy less valve & clamp 31”
Filter Assy less valve & clamp 36”
1
8 SX200SNPAK1
0
SX200QNPAK10
SX240DNPAK10
SX310HNPAK1
0
14” Lateral with Ball end (10)
16”,18”,21”,22” Lateral Ball end (10)
24”,27” Lateral Ball end (10)
30”,36” Lateral Ball end (10)
1
1
1
1
9a
9b
SX180HG
SX180LA
Drain Cap Kit (Round)
Drain Cap Assy
1
1
10 SX164B
SX200J
SX310J
14” & 16” Filter Base
18”-27” Filter Base
30” & 36” Filter Base
1
11a
11b
SX164C
SX180J
14” & 16” Pump Base
System base 18”, 21”, 23”
12 ECX1108A Pump mounting screw kit
13 SX160Z4KIT
SX201Z1KIT
26” Hose Kit (14”,16” System)
33” Hose Kit (18”, 21”, 23” System)
Note: S210T2, S220T2, S244T2, S270T2, S310T2 and S360T2 are
equipped with 2” valves
