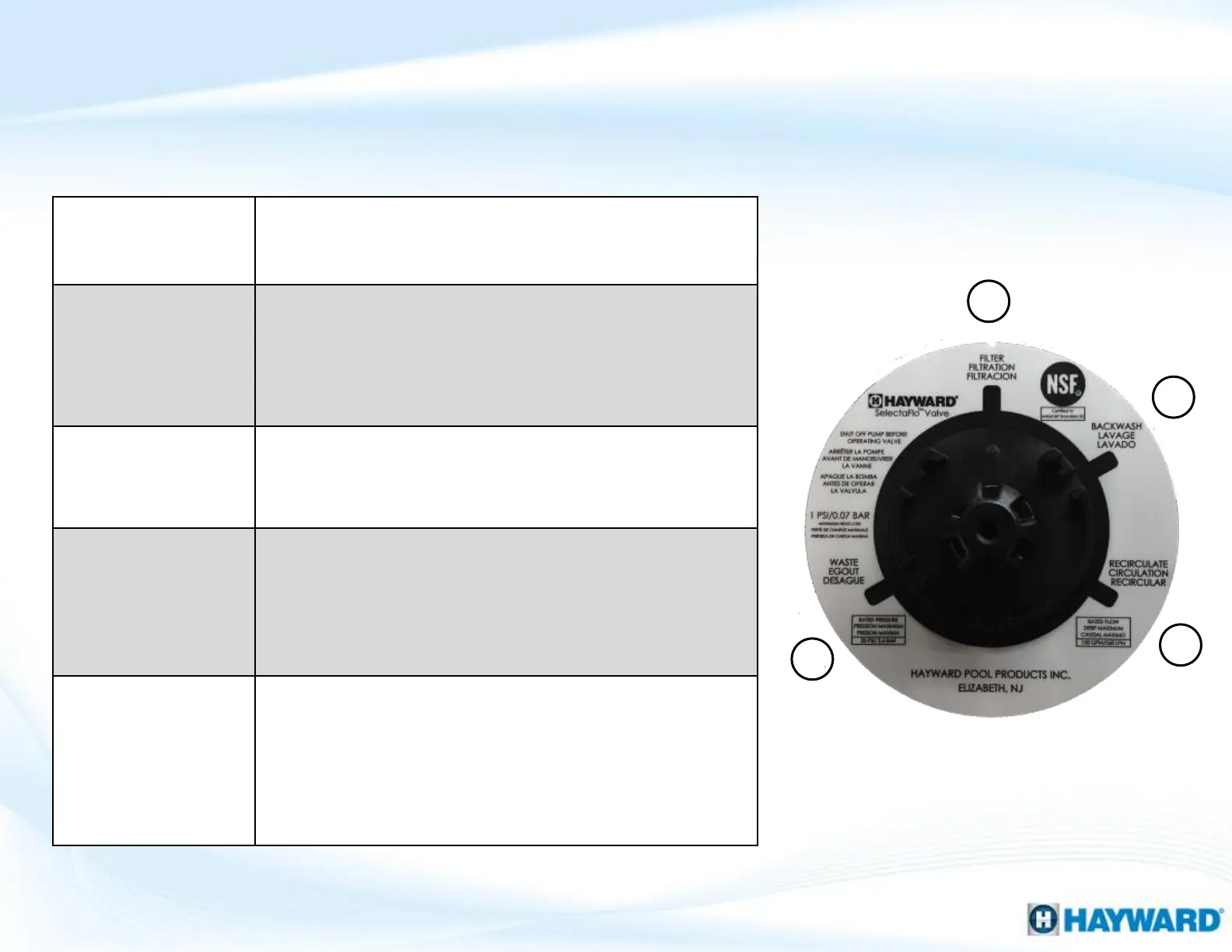

Hayward SelectaFlo - Function of Valve Positions

Valve: Function of Valve Positions
5
ALWAYS turn off pump before changing valve position.
VALVE
SETTING
FLOW DIRECTION THROUGH VALVE
(1)
FILTER
PUMP
– THROUGH FILTER – RETURN
For normal filtration and vacuuming pool
through filter.
(2)
BACKWASH
PUMP
– THROUGH FILTER – WASTE
For cleaning filter.
(3)
RECIRCULATE
PUMP
– THROUGH VALVE – RETURN
For bypassing filter, but circulating
pool
water.
(4)
WASTE
PUMP
– THROUGH VALVE ONLY –
WASTE
For vacuuming directly to waste, lowering
pool level and/or
draining pool.
1
2
3
4
