7

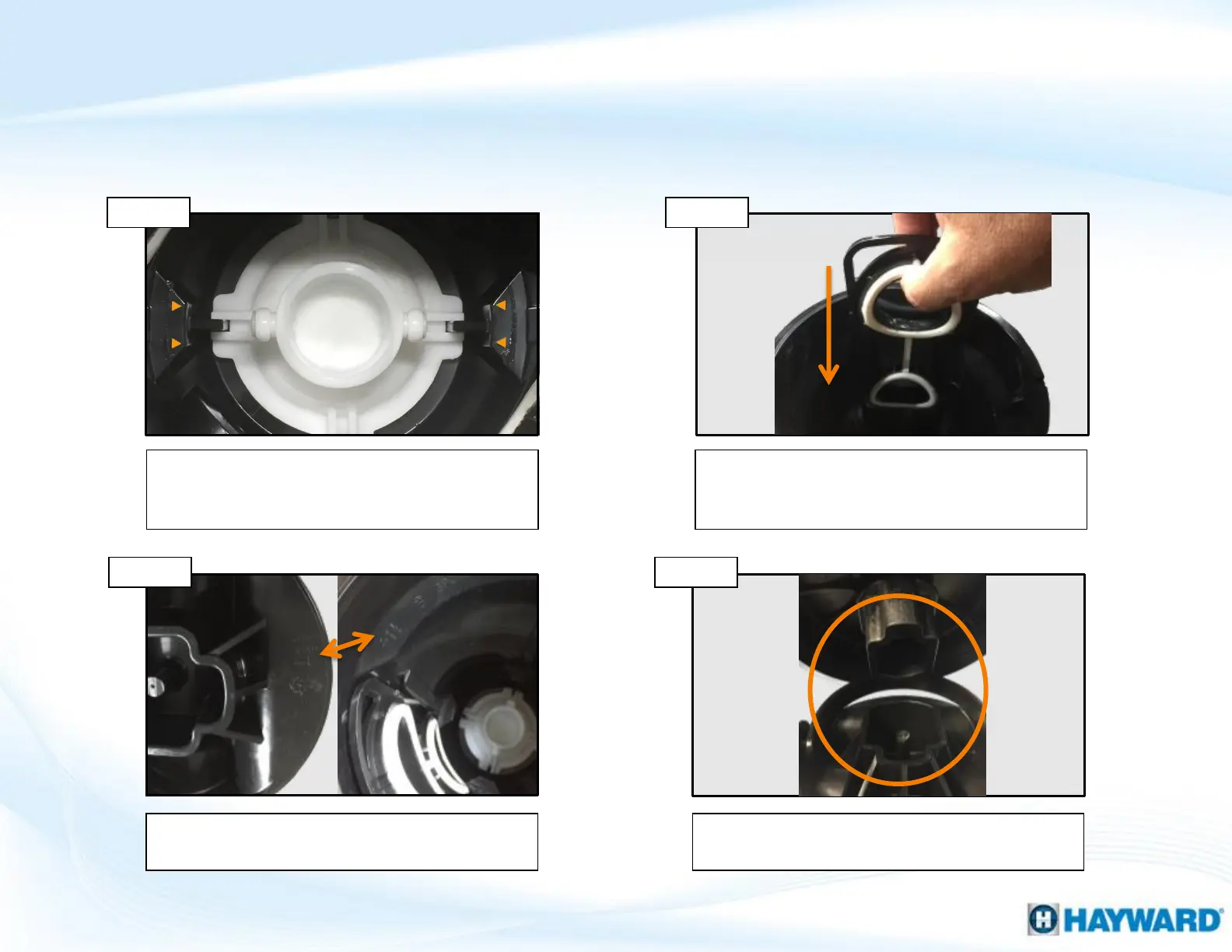

Use the steps provided to install the valve assembly.
Install waste port seal carrier by aligning the
locating features (arrows) on the carrier and
the bottom of the valve body
Lubricate inward facing seals with silicon lube
and install seal carriers by firmly pressing them
down into their slots.
Install Hub Assembly into valve body by
aligning the locating features (arrows).
Step 2
Step 1
Valve: Assembly
Fold handle down and install the cover by
aligning cover and hub locating features.
Step 4 Step 3
To Next Page
