USE ONLY HAYWARD GENUINE REPLACEMENT PARTS 10

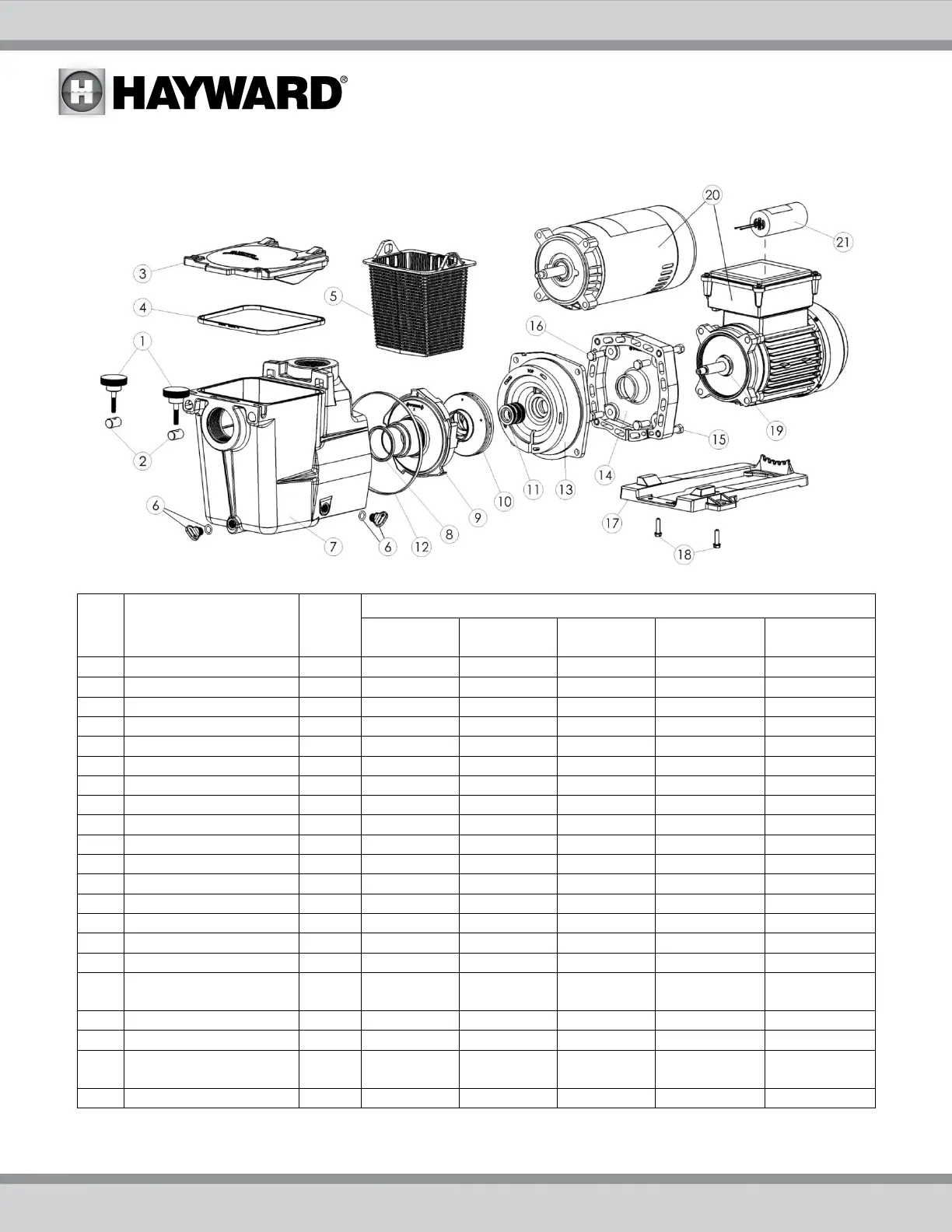

Replacement Parts
Parts Diagram
Parts Listing
REF # DESCRIPTION
NUMBER
REQ’D
PART NUMBER
MODEL
SP2670007X10
MODEL
SP2600X5
MODEL
SP2605X7
MODEL
SP2607X10
MODEL
SP2607X102S
1 HAND KNOB 2 SPX1600P SPX1600P SPX1600P SPX1600P SPX1600P
2 SWIVEL NUT 2 SPX1600N SPX1600N SPX1600N SPX1600N SPX1600N
3 STRAINER COVER 1 SPX1600D SPX1600D SPX1600D SPX1600D SPX1600D
4 STRAINER COVER GASKET 1 SPX1600S SPX1600S SPX1600S SPX1600S SPX1600S
5 BASKET 1 SPX1600M SPX1600M SPX1600M SPX1600M SPX1600M
6 DRAIN PLUG W/ GASKET 2 SPX4000FG SPX4000FG SPX4000FG SPX4000FG SPX4000FG
7 PUMP/STRAINER HOUSING 1 SPX1620AA SPX1620AA SPX1620AA SPX1620AA SPX1620AA
8 DIFFUSER GASKET 1 SPX1600R SPX1600R SPX1600R SPX1600R SPX1600R
9 DIFFUSER 1 SPX2600B SPX2600B SPX2600B SPX2600B SPX2600B
10 IMPELLER 1 SPX2607C SPX2600C SPX2605C SPX2607C SPX2607C
11 SEAL ASSEMBLY 1 SPX1600Z2VIT SPX1600Z2 SPX1600Z2 SPX1600Z2 SPX1600Z2
12 HOUSING GASKET 1 SPX1600T SPX1600T SPX1600T SPX1600T SPX1600T
13 SEAL PLATE 1 SPX2600E5 SPX2600E5 SPX2600E5 SPX2600E5 SPX2600E5
14 MOTOR MOUNTING PLATE 1 SPX1600F5 SPX1600F5 SPX1600F5 SPX1600F5 SPX1600F5
15 HOUSING CAP SCREW 4 SPX1600Z4 SPX1600Z4 SPX1600Z4 SPX1600Z4 SPX1600Z4
16 MOTOR CAP SCREW 4 SPX0125Z4 SPX0125Z4 SPX0125Z4 SPX0125Z4 SPX0125Z4
17
MOUNTING FOOT [WILL INCLUDE
SCREWS( ITEM #18)] 1 SPX2600G1 SPX2600G1 SPX2600G1 SPX2600G1 SPX2600G1
18 MOUNTING FOOT CAP SCREW 2 SPX1600J SPX1600J SPX1600J SPX1600J SPX1600J
19 SLINGER 1 SPX0125F SPX0125F SPX0125F SPX0125F SPX0125F
20
MOTOR- [WILL INCLUDE
SLINGER (ITEM #19)] 1 SPX2607Z1MTG SPX1600Z1M SPX1605Z1M SPX1607Z1M SPX1607Z2MSC
21 CAPACITOR SET, 1 HP TEFC, DOE 1 * SPX2600CAP3 --- --- --- ---
* Item #21, Capacitor Set, SPX2600CAP3 is only for pump model SP2670007X10 built AFTER 7/19/21. For replacement capacitors for pump model
SP2670007X10 built BEFORE 7/19/21, please contact technical services.
