Hayward TC Series User Manual

Hayward Flow Control www.haywardflowcontrol.com 1-888-HAY-INDL (1-888-429-4635)
TCIS Rev D 5/15/18
Pg. 8 of 11

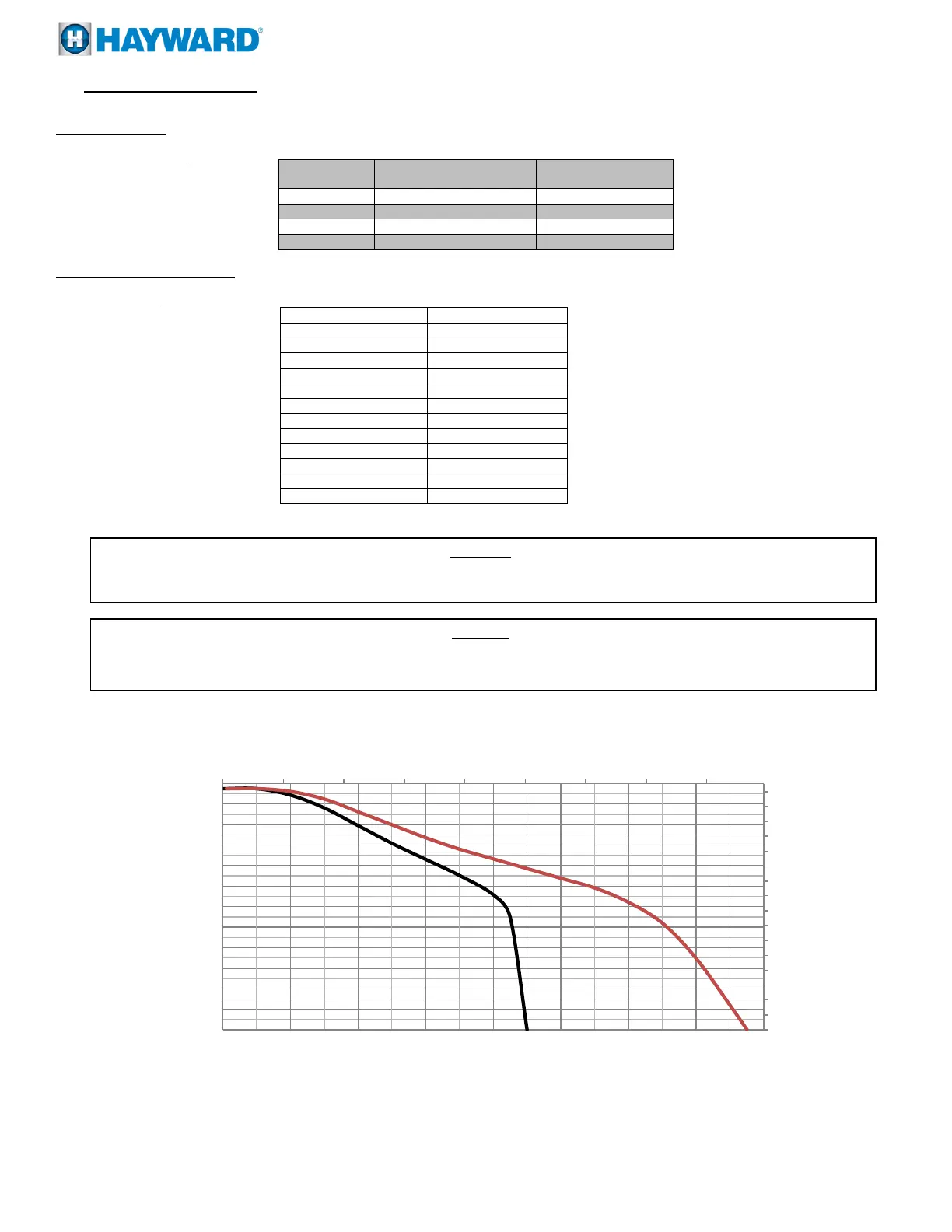

5.0 PRODUCT SPECIFICATIONS:
Maximum Pressure: Refer to Chart 1 and Chart 2 for pressure ratings.
Operating Temperature:
Maximum System Flow Velocity: 8 ft/s (2.4 m/s) for thermoplastic piping systems
Flow Capacity; Cv:
Size
Cv
1/4” (DN8)
1.0
3/8” (DN10)
3.0
1/2” (DN15)
4.8
3/4” (DN20)
7.7
1” (DN25)
11.0
1-1/4” (DN32)
25.0
1-1/2” (DN40)
45.0
2” (DN50)
130.0
2-1/2” (DN65)
170.0
3” (DN80)
250.0
4” (DN100)
400.0
6” (DN150)
340.0
Chart 1: Operating pressures at elevated temperatures for PVC and CPVC up to 2” valve size
Material
Minimum Operating
Temperature
Maximum Operating
Temperature
PVC
34°F (1.1°C)
140°F (60.0°C)
CPVC
34°F (1.1°C)
190°F (87.8°C)
PP
20°F (-6.7°C)
180°F (82.2°C)
PVDF
20°F (-6.7°C)
240°F (115.6°C)
CAUTION
Published operating requirements are based on testing of new valves using clean water at 70°F. Valve performance is
affected by many factors including fluid chemistry, viscosity, specific gravity, flow rate, and temperature. These should be
considered when sizing systems using Hayward products.
WARNING
The maximum recommended fluid velocity through any plastic piping system is eight feet per second (8 ft/s). Higher fluid
velocity can create excess water hammer effect, resulting in property damage, personal injury, or even death.
Pressure (KPa)
15 25 35 45 55 65 75 85 95
0
100
200
300
400
500
600
700
800
900
1000
1100
1200
1300
1400
1500
1600
0
20
40
60
80
100
120
140
160
180
200
220
240
60 80 100 120 140 160 180 200 220
Pressure (psi)
Temperature (ºF)
Temperature (ºC)
CPVC
PVC
