Hayward TriStar VS 900 User Manual

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 15 of 36 TriStar VS 900 Pump IS32900VSP Rev-B

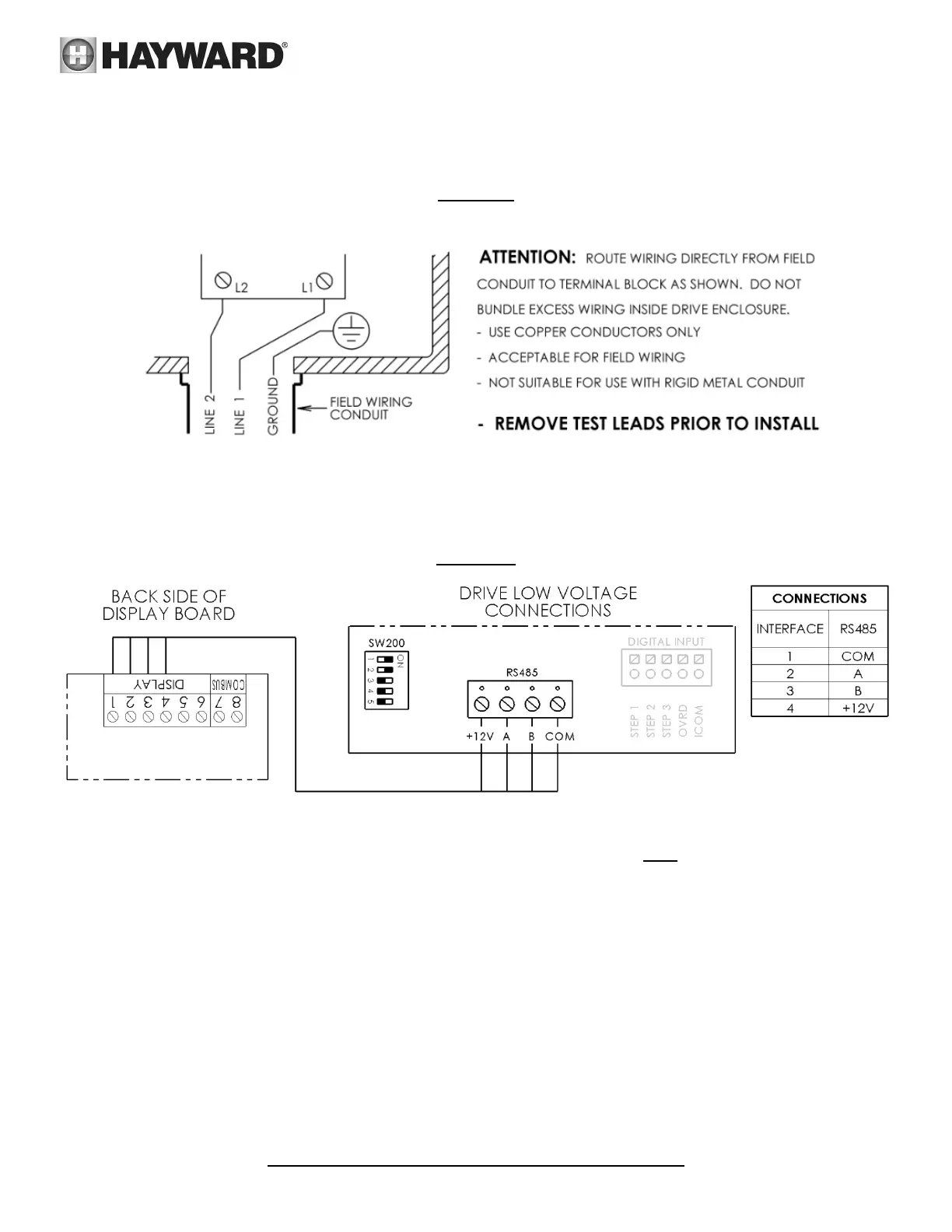

5. Wiring Diagrams
5.1. Input Power Wiring (Required)
Figure 5.1-1
DRIVE HIGH VOLTAGE CONNECTIONS
5.2. Wall Mounted Digital Control Interface Wiring (Optional)
Figure 5.2-1
Connection wire must be rated for a minimum of 300V, and may be up to 500 feet in length. Use removable
4-position terminal block connectors for wiring connection to interface and motor drive PCB’s taking care to note the
wire colors and corresponding numbers next to the connectors. Terminal block must be installed with screws facing
up to ensure proper connection. SW200 DIP switch #1 and #2 must be “ON”.

Hayward TriStar VS 900 Specifications

General

Voltage	230V
Energy Efficiency	Energy Star Certified
Model	TriStar VS 900
Maximum Flow Rate	90 GPM
Speed Range	600-3450 RPM
Motor Type	Permanent Magnet, Totally Enclosed Fan Cooled (TEFC)
Type	Variable Speed Pump
Port Size	2 in. x 2 1/2 in.
Maximum Head	90 ft
Wet End Material	Reinforced Thermoplastic
Motor Enclosure	Totally Enclosed Fan Cooled (TEFC)
Control Interface	Digital
Control	Programmable Digital Control Interface
