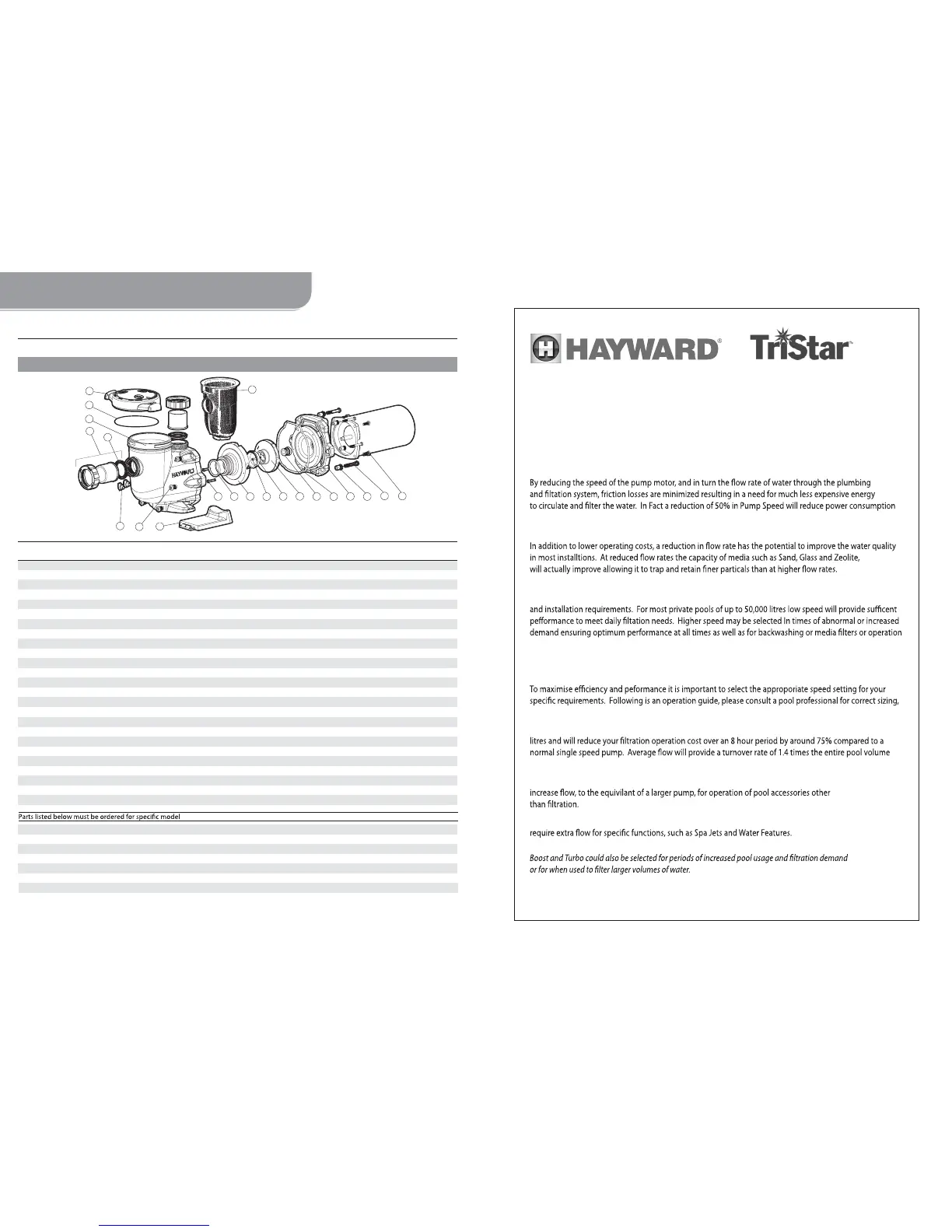

Parts for Pump Models: TS270, TS350, TS350-E, TS425, TS475, TS525, TS600
18
17
16
15
1210
9
8
7
14
13
11
3
5
4
6
1
2
19
16
20
1 SPX3200UNKIT Union Connector Kit (Includes Nut, Connector, Gasket)
2 SPX3200UG Union Gasket (T-Seal), 50 duro EPDM
3 SPX3200A Pump Strainer Housing, 2” X 2” with Drain Plugs, threaded style
4 SPX3200DLS Strainer Cover Kit (Includes Strainer Lexan Cover, Lock Ring, O-Ring)
5 SPX3200S Strainer Cover O-Ring
6 SPX3200M Strainer Basket
8 SPX4000Z1 Diffuser O-Ring
9 SPX3200B3 Diffuser
10 SPX3200Z1 Impeller Screw
11 SPX3021R Impeller Ring
12 SPX3207C Impeller with Impeller Screw - Suits TS270
12 SPX3210C Impeller with Impeller Screw - Suits TS350
12 SPX3215C Impeller with Impeller Screw - Suits TS425
12 SPX3220C Impeller with Impeller Screw - Suits TS475
12 SPX3230C Impeller with Impeller Screw - Suits TS525
13 SPX4000SA Shaft Seal Assembly
14 SPX3200T Housing O-
Ring
15 SPX3200E Seal Plate
16 SPX3200Z211 Housing
Insert & Seal Plate Spacer Kit
17 SPX3200Z3
18 SPX3200Z5 Motor Bolt
19 SPX4000FG Drain Plug with O-Ring
20 SPX3200GA Motor Support Bracket
SPX3207AQM MOTOR-TRISTAR
- Suits TS270
SPX3210AQM MOTOR-TRISTAR - Suits TS350
SPX3215AQM MOTOR-TRISTAR - Suits TS425
SPX3220AQM MOTOR-TRISTAR - Suits TS475
SPX32302AQM MOTOR-TRISTAR - Suits TS525
Ref # Code Description
12 SPX3230CU Impeller with Impeller Screw - Suits TS600
SPX3230UAQM MOTOR-TRISTAR - Suits TS600
TriStar
TM
SP3200 PUMP SERIES REPLACEMENT PARTS
3 SPEED OPERATION (3 Speed Models Only)
WORLD LEADING 8 STAR ENERGY EFFICIENCY
Hayward 3 Speed Pumps incorporate Superior Wet End Design characteristics, providing
Industry Leading Performance and Energy Savings that allow Hayward Pumps to out perform and
out last most competitors with ease.
REDUCES ENERGY CONSUMPTION AND OPERATING COST
by UP TO 75%!
IMPROVED WATER QUALITY
FLEXIBILTY OF 3 SPEEDS
Hayward 3 Speed Pumps have been designed to provide an appropriate setting to suit various functions
of water features.
SELECTING THE CORRECT SPEED SETTING
model selection, and installation advice.
Filter (Low Speed) - This speed will meet the daily requirements for most private use pools up to 50,000
in an average days operation.
Boost (Medium Speed) - This speed can be used for operation of Automatic Pool Cleaners or to
Turbo (High Speed) - Designed for backwashing and operation of accessories that may
www.haywardpool.com.au
SPX3210ADEM MOTOR-TRISTAR - Suits TS350-E
, , ,
Housing Bolt
7 SPX3200Z8 Diffuser Screws (2 per)
