19"W LCD Color Monitor HCL HCM9LWAN21
9

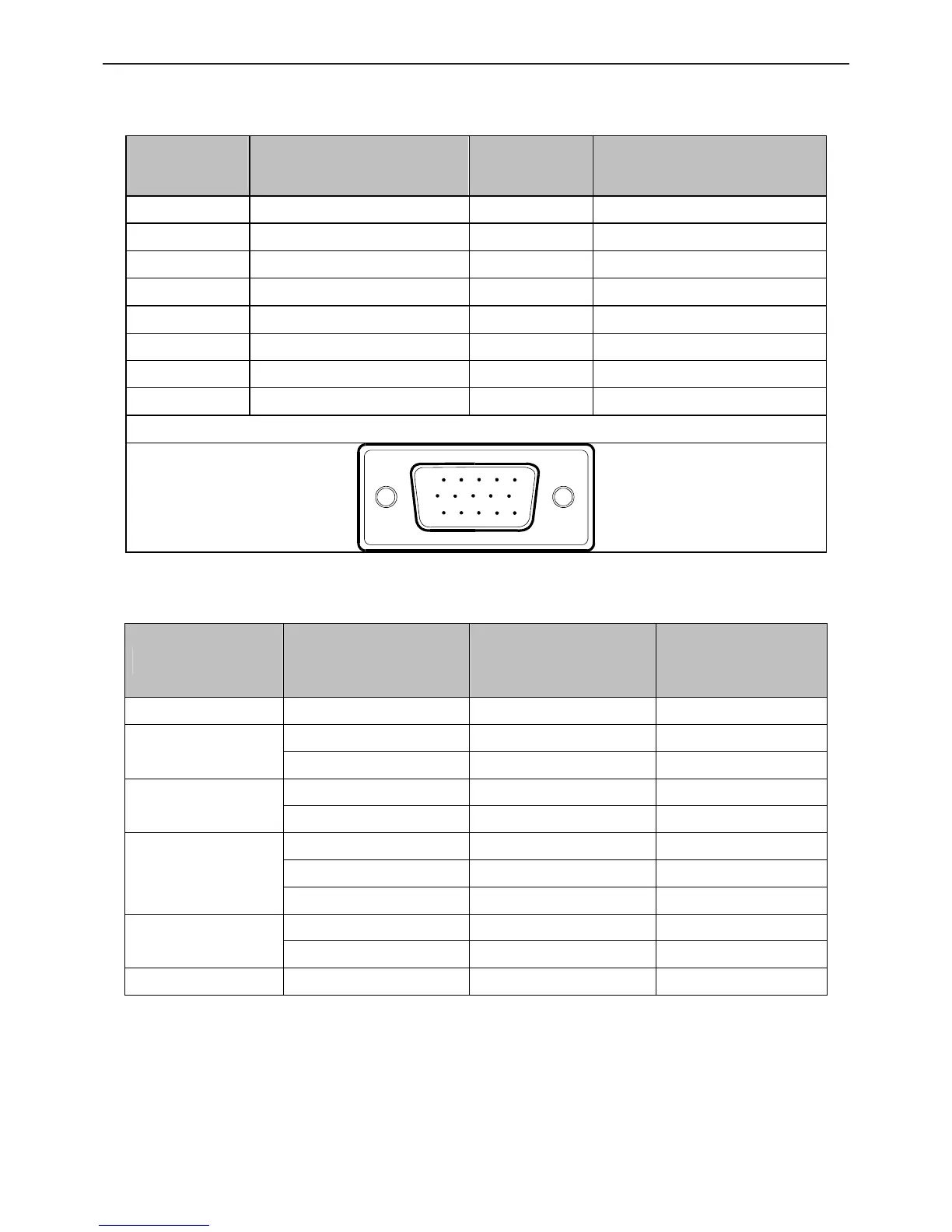

4. Input/Output Specification
4.1 Input Signal Connector
Pin No.
Description
Pi N No.
Description
1. Red 9. +5V
2. Green 10. Detect Cable
3. Blue 11. Ground
4. Ground 12. DDC-Serial Data
5. Ground 13. H-Sync
6. R- Ground 14. V-Sync
7. G- Ground 15. DDC-Serial Clock
8. B- Ground
15 - Pin Color Display Signal Cable
15
6
10
11 15
4.2 Factory Preset Display Modes
Stand Resolution
Horizontal
Frequency(KHz)
Vertical
Frequency(Hz)
Dos-mode 720×400 31.47kHz 70.0Hz
640×480 31.47kHz 60.0Hz
VGA
640×480 37.50kHz 75.0Hz
800×600 37.879kHz 60.0Hz
SVGA
800×600 46.875kHz 75.0Hz
1024×768 48.363kHz 60.0Hz
1024×768 56.476kHz 70.0Hz
XGA
1024×768 60.021kHz 75.0Hz
1280 × 1024 64.000kHz 60.0Hz
SXGA
1280 × 1024 80.000kHz 75.0Hz
WXGA+ 1440×900 55.935kHz 59.8Hz
