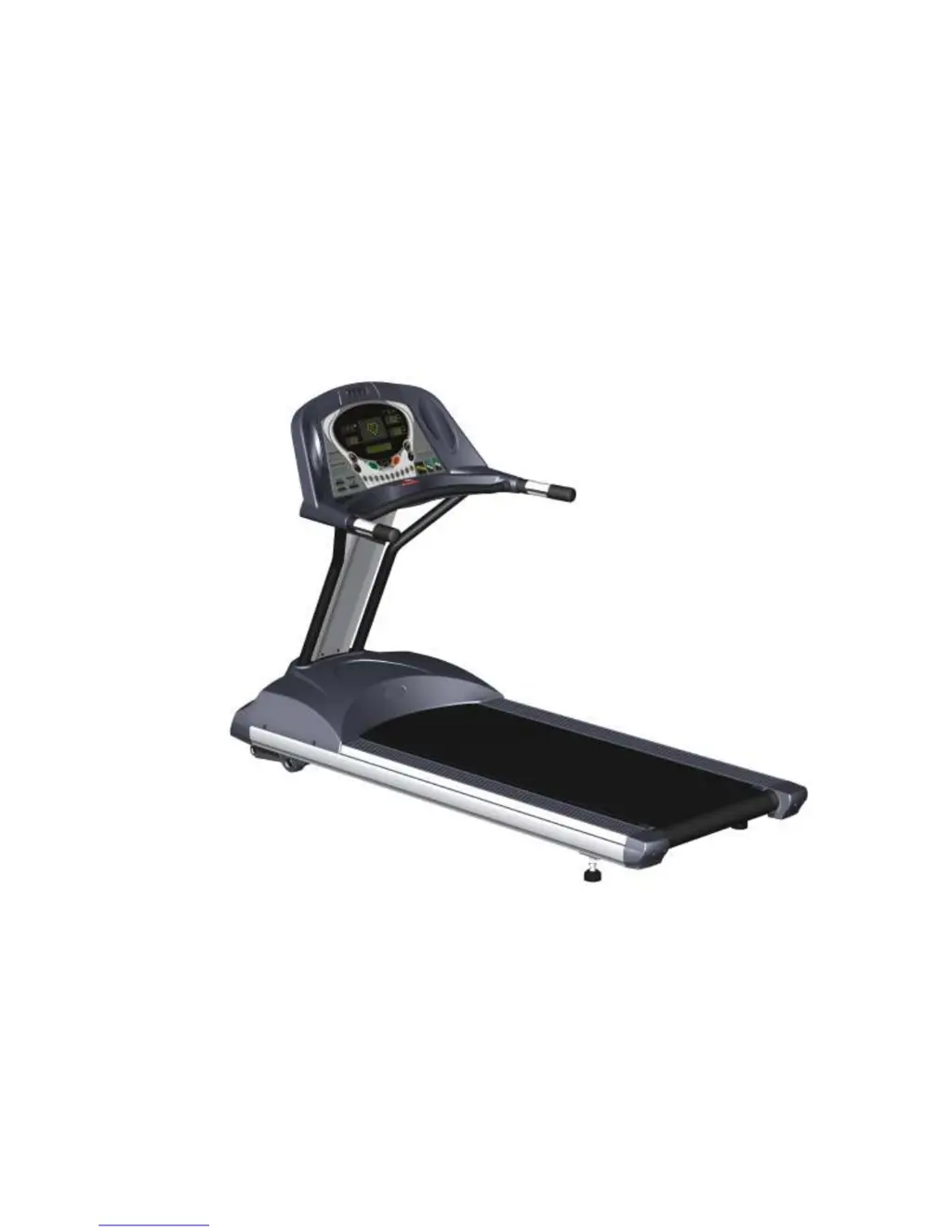

T790 Treadmill

1dmill

Customer Support Services

SERVICE MANUAL

Questions and Answers:

J
Jacob GillespieAug 12, 2025
What to do if Healthstream Treadmill shows Err5 Incline motor error?
- A
  Angelica RomanAug 12, 2025
  If your Healthstream Treadmill displays an Err5 Incline motor error, there are several potential causes and solutions: 1. A time delay issue might be the problem, in which case performing a calibration could resolve it. 2. The incline motor sensor cable may have a problem. Inspect all wire connections. 3. If the VR of the incline motor sensor is defective or the incline motor is damaged, consider replacing the incline motor. 4. If the incline motor is overloaded or overheated, eliminate human factors that may be contributing to the issue.
D
Danielle HallAug 16, 2025
What to do if Healthstream T790 shows Err20 Over current error?
- A
  amandaadamsAug 16, 2025
  If your Healthstream Treadmill displays an Err20 Over current error, cool the motor and motor controller for about 30 minutes. Also, check the deck and belt lubrication.
B
banksjessicaAug 20, 2025
What to do if Healthstream T790 shows Err21 Over heat error?
- E
  Ernest LeeAug 20, 2025
  If you are seeing Err21 Over heat error on your Healthstream Treadmill, cool the treadmill for more than 1 hour and try again. You should also check the deck and belt lubrication.

Healthstream T790 Specifications

General

Brand	Healthstream
Model	T790
Category	Treadmill
Language	English

Summary

SECTION I TROUBLESHOOTING GUIDE

ELECTRONIC PROBLEMS

Identifies and resolves electronic issues like error codes and system malfunctions.

ELECTRICAL PROBLEMS

MECHANICAL PROBLEMS

Addresses mechanical failures such as belt slips, noise, and roller issues.

SECTION II OPERATING CONSOLE

SECTION III HOW TO... SERVICE AND REPAIR GUIDE

HOW TO REPLACE THE RUNNING BELT AND DECK

Step-by-step guide for replacing the running belt and deck assembly.

HOW TO ADJUST THE RUNNING BELT TENSION

HOW TO REPLACE THE DRIVE MOTOR

Instructions for removing and installing the treadmill's drive motor.

HOW TO REPLACE THE INCLINE MOTOR

Detailed procedure for replacing the incline motor unit.

SECTION IV ELECTRONIC OVERVIEW AND WIRING BLOCK DIAGRAM

ELECTRONIC OVERVIEW – T790 CONSOLE

ELECTRONIC OVERVIEW – MOTOR CONTROLLER PCB

WIRING DIAGRAM (CE VERSION)

SECTION V PARTS IDENTIFICATION

EXPLODED DRAWING

PART LIST

SECTION VI MISCELLANEOUS INFORMATION

PREVENTIVE MAINTENANCE SCHEDULE

IMPORTANT SAFETY INSTRUCTIONS

Critical safety guidelines for treadmill placement, operation, and environment.
