03/03/97
6
Four green lights means your battery is nearly
full (80-100% charged).
A single flashing red light means it's nearly discharged.
Light bar scaling is independently settable. As the Link 20 comes
from the factory, it is set to show a flashing red light whenever your
battery is more than 80% discharged (20% charged). The default
setting usually indicates enough energy remains with two yellow lights
showing to start an engine driven charging source. If desired, you
may scale the light bar to show a flashing red light when your battery
is more than 40% discharged, however, this is not recommended. To
set a discharge floor other than 100%, see Page 22, Function F09.

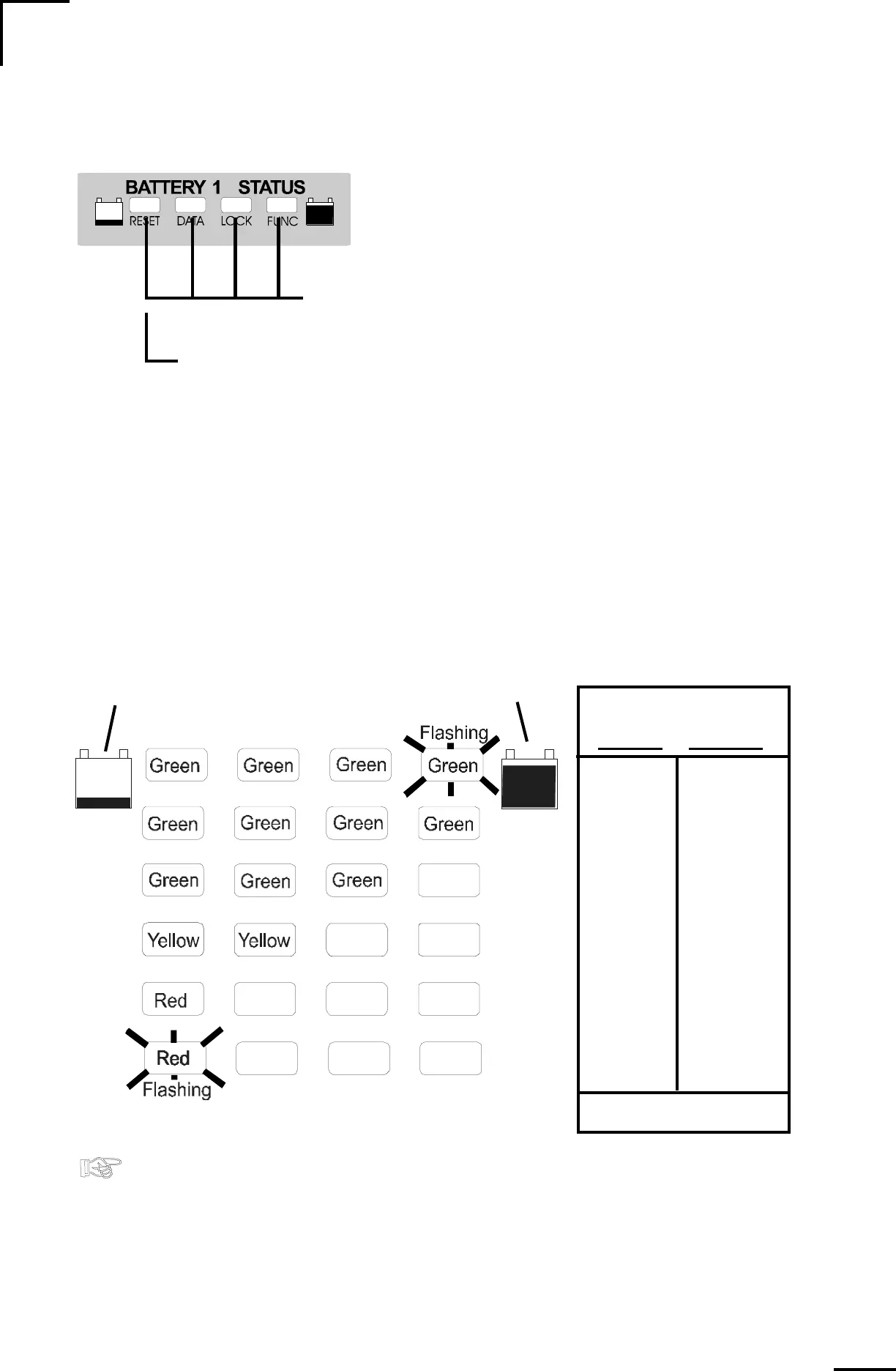

READING THE LIGHT BARS
Above the Link 20 numeric display
are two light bars, each with four
lights. They show you battery state-
of-charge at a glance.
EMPTY Symbol FULL Symbol
Percent Full
Default Optional
100% 100%
80-99.9 90-99.9
60-79.9 80-89.9
40-59.9 70-79.9
20-39.9 60-69.9
0-19.9 50-59.9
The Light Bars operate on rate corrected Amp-hours. If you have heavily discharged
a battery bank, the light bar may tell you to charge before you would normally make that
decision based on the Amp-hour display. See High Discharge Rates, Page 26.
WE RECOMMEND: Charge your batteries when the Light Bars tell you to!
100%
floor
50%
floor
To Next Page
