FEATURES
• Bright, energy saving LED light
• Automatically comes on when motion is detected.
UNPACKING
Be sure to remove all contents from packaging and verify
all items are present before assembling this light xture.
is package includes the following items:
• Security Light
• Owner’s Manual
• Mounting Hardware
© 2020 HeathCo LLC 208800-03A
Motion Sensor
Light Control
Model: 5868

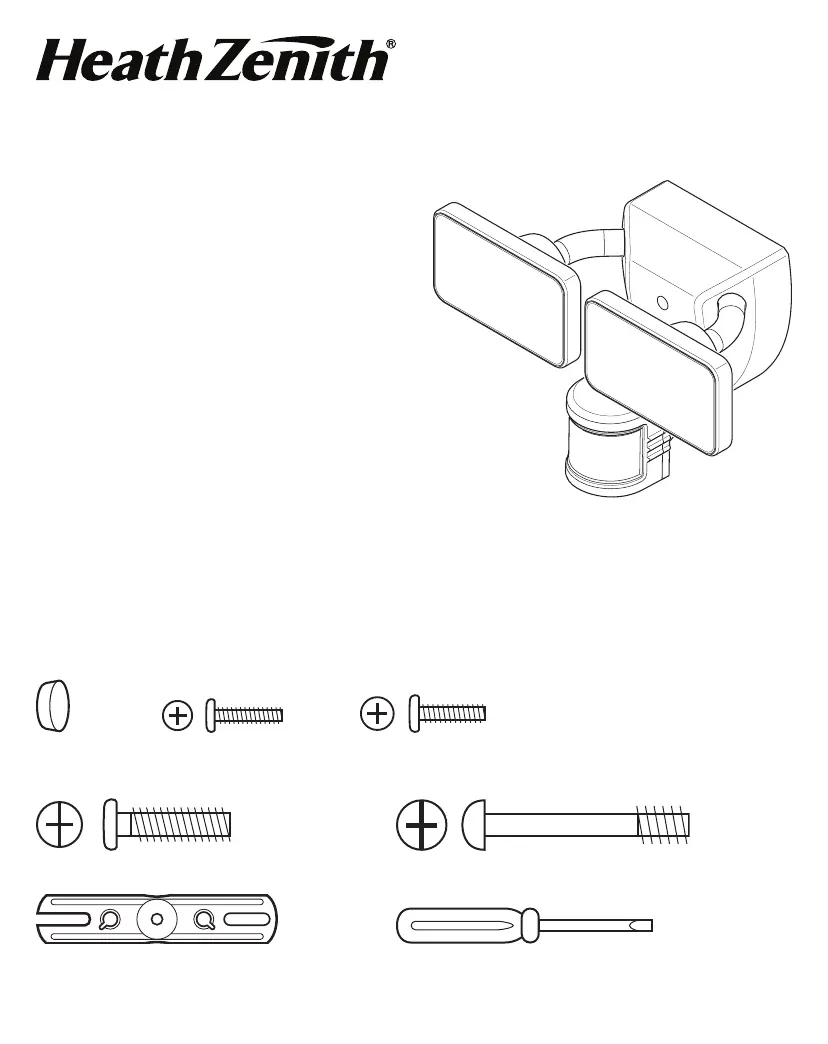

HARDWARE INCLUDED
Note: Six mounting bracket screws are included. e installation will only require two. Discard the unused mounting
bracket screws after installation.
Plastic plug #6 Mounting Bracket #8 Mounting Bracket
Screw (x2) Screw (x2)
Mounting Bolt Mounting Bolt (Pre-Installed in Light Fixture)
FRONT
Mounting Bracket Mini Screwdriver
180°
