INSTALLATION
For best performance, mount the fixture about 7ft (2.1
m) above the ground.
❒ Turn the power to the lighting circuit off at the
fuse or circuit breaker box.
❒ Remove the existing light fixture.

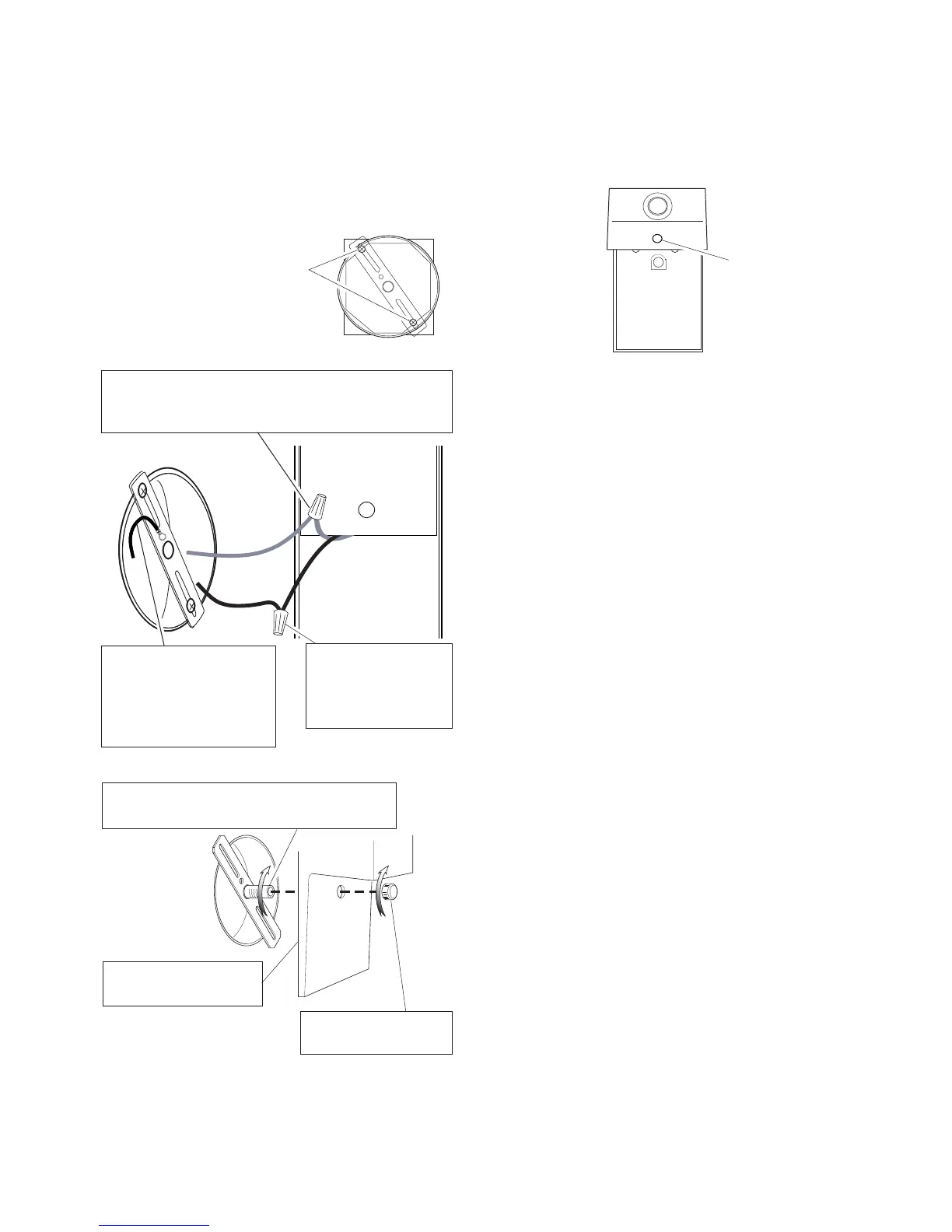

❒ Install the mounting strap
into the junction box. Ori-
entation of the strap may
be different.
❒ Strip about 5/8 in. (15 mm)
insulation off of the existing
junction box wiring.
❒ Connect the white (neutral) junction box wire to the
white Entryway Light wire. Twist the wires together
and secure with a wire connector.
❒ Connect the green or
bare (ground) mounting
strap wire to a grounded
wire or to a grounded
metal box.
❒ Connect the black
(hot) junction box
wire to the black En-
tryway Light wire.
❒ Install the mounting stem into the strap so
that it extends out about 3/4 in. (19 mm).
❒ Install the fixture over
the mounting stem.
❒ Install and tighten the
mounting stem nut.
Holding Screw
for Globe or Jar
❒ Caulk the back edge of the light and mounting
surface with silicone weather sealant.
❒ Install a 60 Watt maximum light bulb into the lamp
holder. Do not overtighten. Higher wattages will
void warranty.
❒ Loosen the front holding screw so the globe or jar
cover can be installed. Secure by tightening the
screw. Do not overtighten.
