2
200477-02
Junction
Box
5. Attach X-Bar to
junction box
Due to the size and weight of the fixture, you
may find it helpful to have an assistant hold the
fixture in place while connecting the wires.
MAX
SENS
MIN
4. Set sensitivity control on back
of fixture to mid-position.
ON-TIME Switch at 1,
5, or 10 minutes
Mode Switching Summary
Flip light switch
off for one second
then back on*
* If you get confused while switching modes,
turn the power off for 1
1
/
2
minutes, then
back on. After the calibration time the con-
trol will be in the AUTO mode.
DualBrite
®
Dimmer Control
Light comes on half bright for selected time af-
ter dusk (Off, 3 hr., 6 hr., until dawn). Selecting
OFF disables this feature. The motion sensing
features will continue to work as described
in this manual. If motion is sensed, the light
turns on full bright for the ON-TIME (1, 5, or
10 minutes) then returns to dim mode.
INSTALLATION
Estimated Installation Time: 30 minutes
Items needed for installation (not included):
• Phillipsandatheadscrewdrivers
• Pliers • Wirestrippers/cutters
• Safetyglasses • Lightbulb
• Siliconecaulk
For best performance, mount the fixture about
6 feet (1.8 m) above the ground.

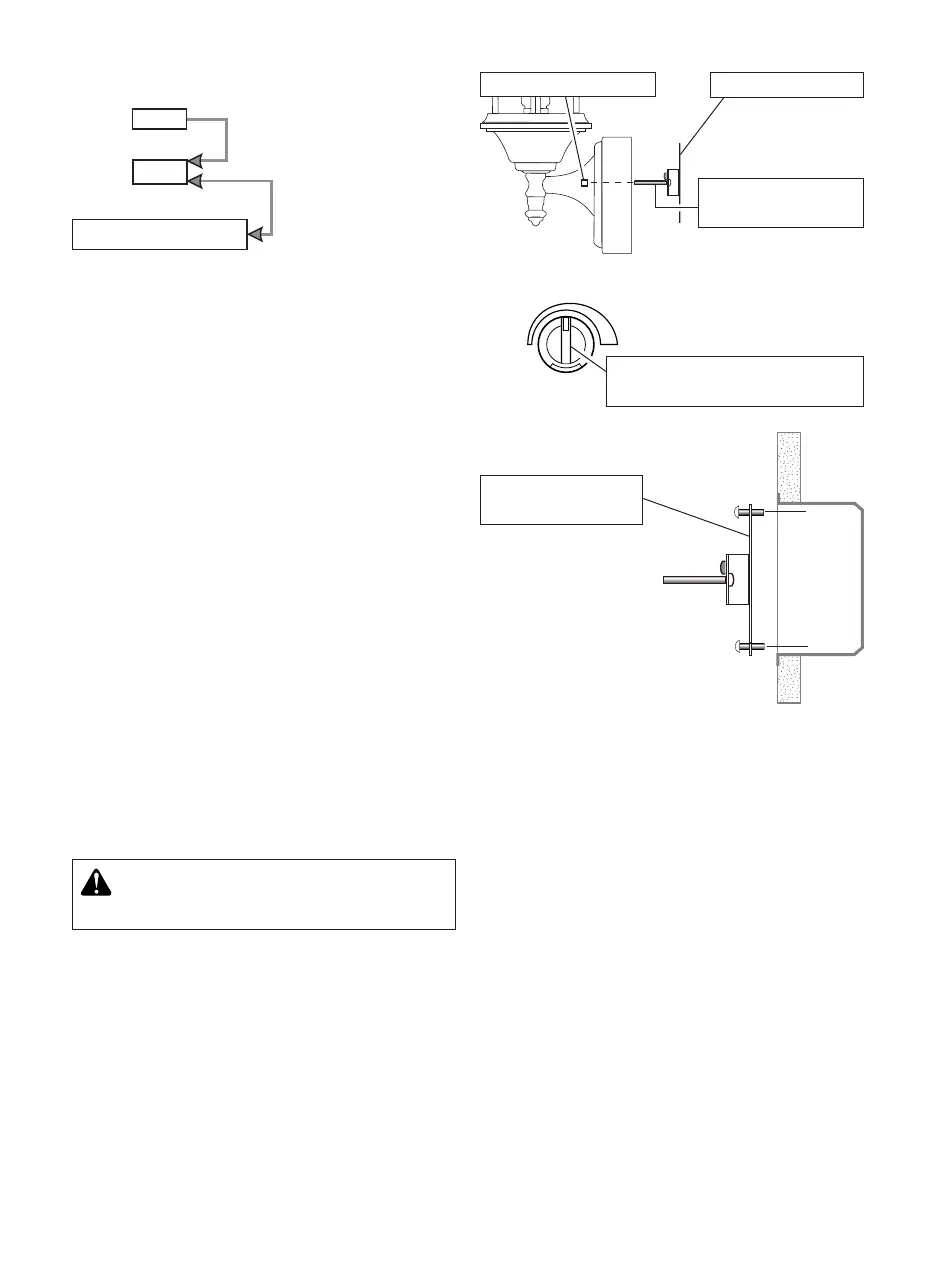

1. Remove two nuts.
3. Tighten screws
finger tight.
2. Remove X-bar.
WARNING: Turn power off at circuit
breaker or fuse.
To Next Page
