Page
8

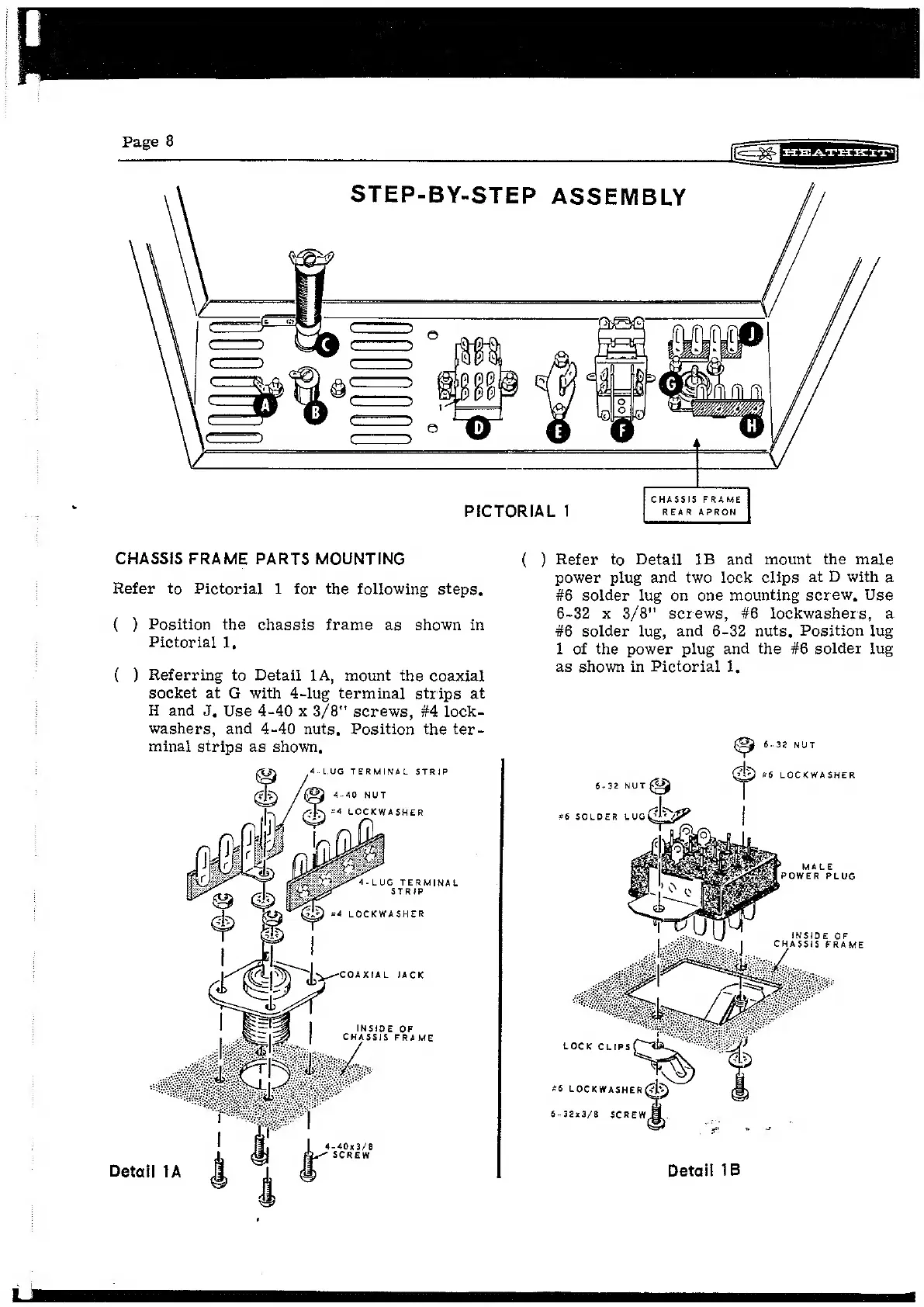

STEP-BY-STEP
HHBATHEIT'
ASSEMBLY
PICTORIAL
1
CHASSIS
FRAME
PARTS
MOUNTING
Refer
to
Pictorial
1
for
the
following
steps,
( )
Position
the
chassis
frame
as
shown
in
Pictorial
1,
(
~
Referring
to
Detail
1A,
mount
the
coaxial
socket
at
G
with
4-lug
terminal
strips
at
H
and
J,
Use
4-40
x
3/8"
screws,
#4
lock-
washers,
and
4-40
nuts,
Position
the
ter-
minal
strips
as
shown,
4-LUG
TERMINAL
STRIP
4-40
NUT
Gip
<4
bogkwasner
CHASSIS
FRAME
REAR
APRON
(
)
Refer
to
Detail
1B
and
mount
the
male
power
plug
and
two
lock
clips
at
D
with
a
#6
solder
lug
on
one
mounting
screw,
Use
6-32
x
3/8''
screws,
#6
lockwashers,
a
#6
solder
lug,
and
6-32
nuts,
Position
lug
1
of
the
power
plug
and
the
#6
solder
lug
as
shown
in
Pictorial
1,
S
6-32
NUT
2S) #6
LOCKWASHER
6.32
NUT
EQ
;
ie
#6
soLDER
LuGGley
LOCK
CLIPS
#6
LOCKWASHER
aD)
6-32x3/8
screw)
<
“yy
ow
Detail
1B
