Gp 6-32 NUT
#6 LOCKWASHER
PHONO SOCKET
INSIDE OF
CHASSIS FRAME
& j 6.32x1/4 SCREW

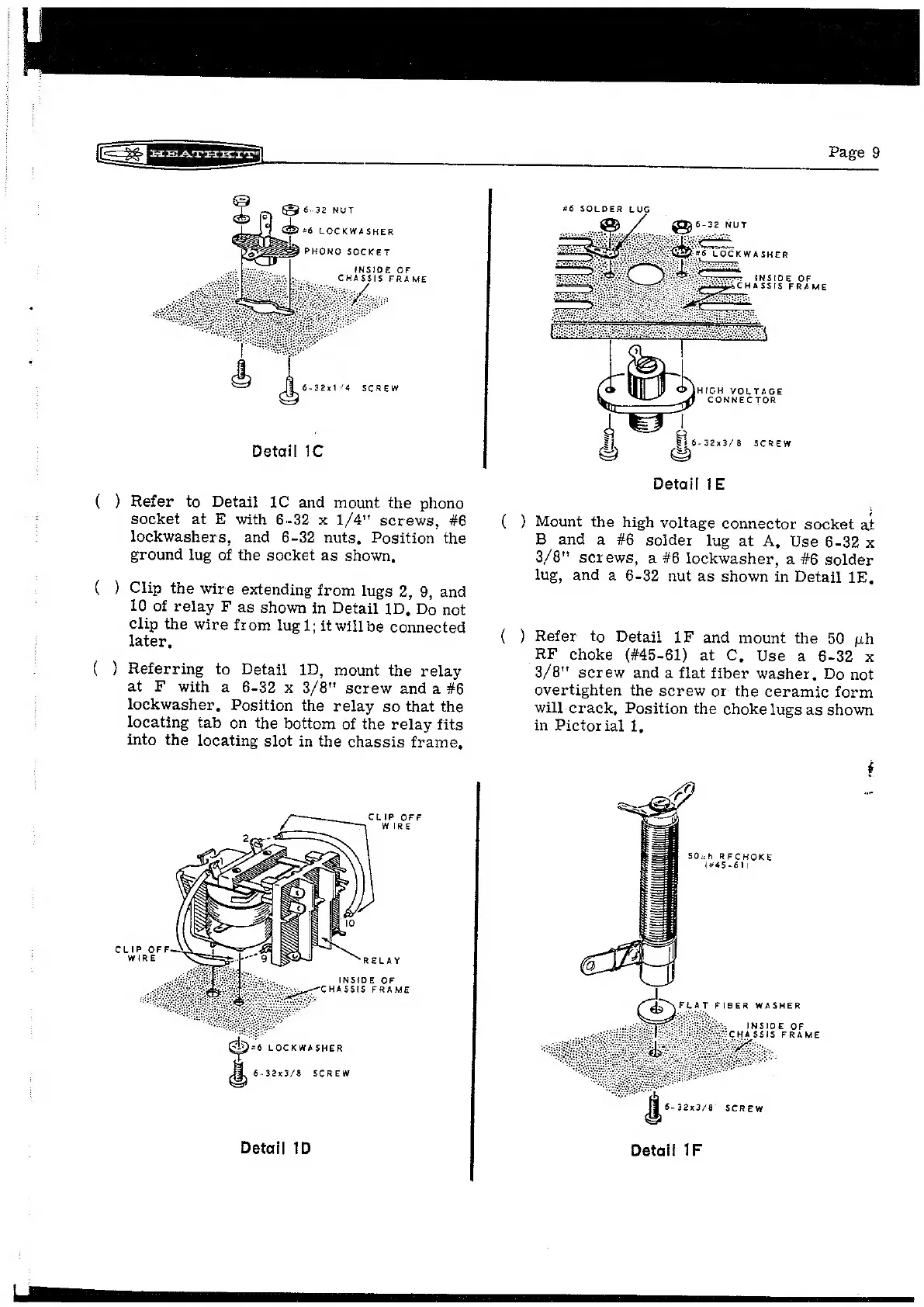

Detail 1C
Refer to Detail 1C and mount the phono
socket at E with 6.32 x 1/4" screws, #6
lockwashers, and 6-32 nuts, Position the
ground lug of the socket as shown,
Clip
the
wire
extending
from
lugs
2,
9,
and
10
of
relay
F
as
shown
in
Detail
1D,
Do
not
clip
the
wire
from
lug
1;
it
willbe
connected
later,
Referring to Detail 1D, mount the relay
at F with a 6-32 x 3/8" screw and a #6
lockwasher, Position the relay so that the
locating
tab
on
the
bottom
of
the
relay
fits
into the locating slot in the chassis frame,
CLIP OFF
WIRE
RELAY
INSIDE OF
CHASSIS FRAME
GE -6 LocKWASHER
& 6-32x3/8 SCREW
Detail 1D
Page 9
#6 SOLDER LUG
i
|
6-32x3/8 SCREW
Pica
@
Detail 1E
)
Mount
the
high
voltage
connector
socket
at
B
and
a
#6
solder
lug
at
A,
Use
6-32
x
3/8"
screws,
a
#6
lockwasher,
a
#6
solder
lug,
and
a
6-32
nut
as
shown
in
Detail
1E,
Refer to Detail 1F and mount the 50 uh
RF choke (#45-61) at C, Use a 6-32 x
3/8" screw and a flat fiber washer. Do not
overtighten the screw or the ceramic form
will
crack,
Position
the
choke
lugs
as
shown
in Pictorial 1,
S0uh RFCHOKE
(#45-611
FIBER WASHER
INSIOE OF
1S FRAME
Geom SCREW
Detail 1F
