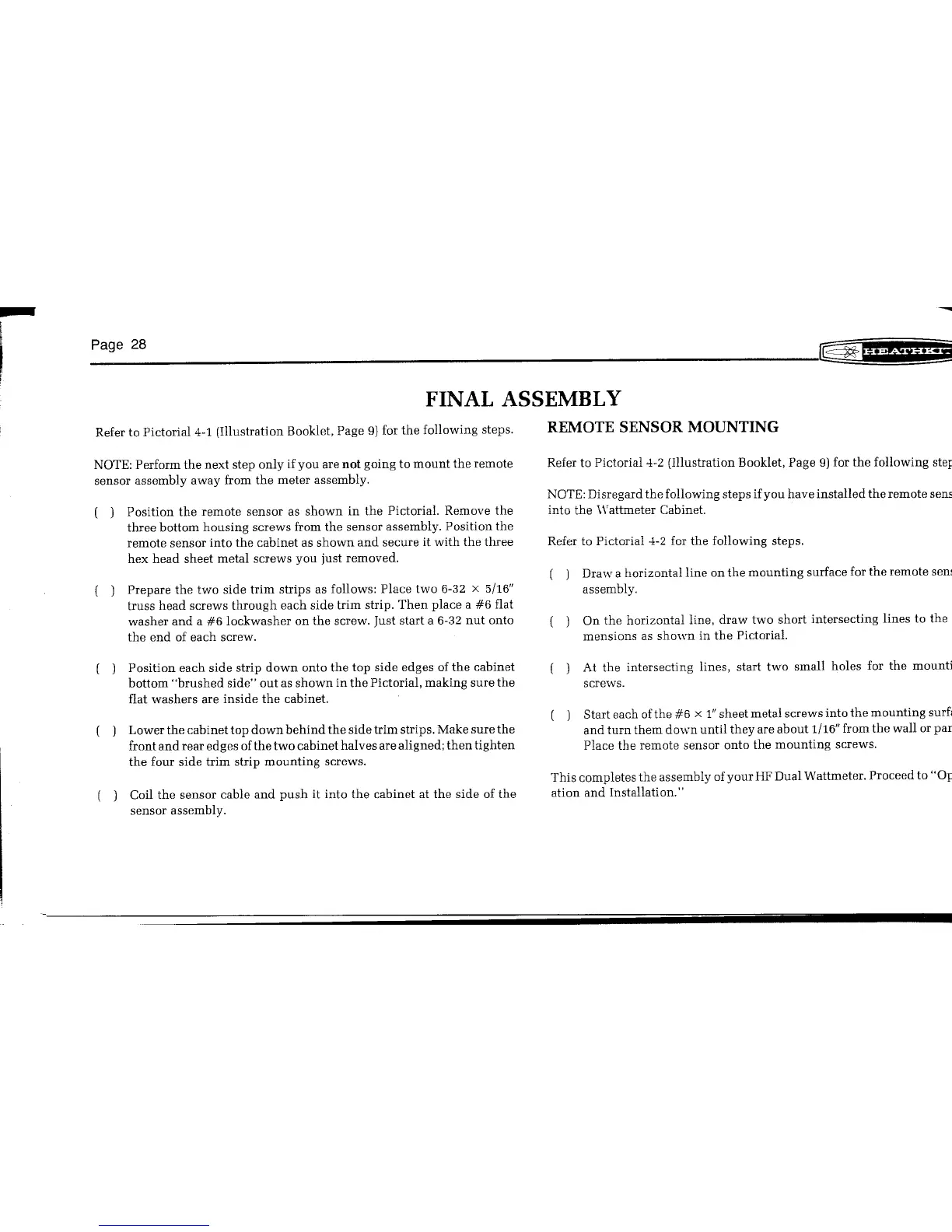

_p_a_ge_2_8 .~
NOTE:Perform the next step only if you are
not
going to mount the remote
sensor assembly away from the meter assembly.
( ) Position the remote sensor as shown in the Pictorial. Remove the
three bottom housing screws from the sensor assembly. Position the
remote sensor into the cabinet as shown and secure
it
with the three
hex head sheet metal screws you just removed.
( ) Prepare the two side trim strips as follows: Place two 6-32 x 5/16"
truss head screws through each side trim strip. Then place a #6 flat
washer and a #6 lockwasher on the screw. Just start a 6-32 nut onto
the end of each screw.
( ) Position each side strip down onto the top side edges of the cabinet
bottom "brushed side" out as shown in the Pictorial, making sure the
flat washers are inside the cabinet.
( ) Lower the cabinet top down behind the side trim strips. Make sure the
front and rear edges ofthe two cabinet halves are aligned; then tighten
the four side trim strip mounting screws.
( ) Coil the sensor cable and push it into the cabinet at the side of the
sensor assembly.
NOTE:Disregard the following steps ifyou have installed the remote sens
into the \\' attmeter Cabinet.
( ) Draw a horizontal line on the mounting surface for the remote sem
assembly.
( ) On the horizontal line, draw two short intersecting lines to the
I
mensions as shown in the Pictorial.
( ) At the intersecting lines, start two small holes for the mounti
screws.
( ) Start each ofthe #6 x 1"sheet metal screws into the mounting surff
and turn them down until they are about 1/16"from the wall orpall
Place the remote sensor onto the mounting screws.
This completes the assembly ofyour HF Dual Wattmeter. Proceed to "Op
ation and Installation."
