_,--------------------------p-a-
g
e-7

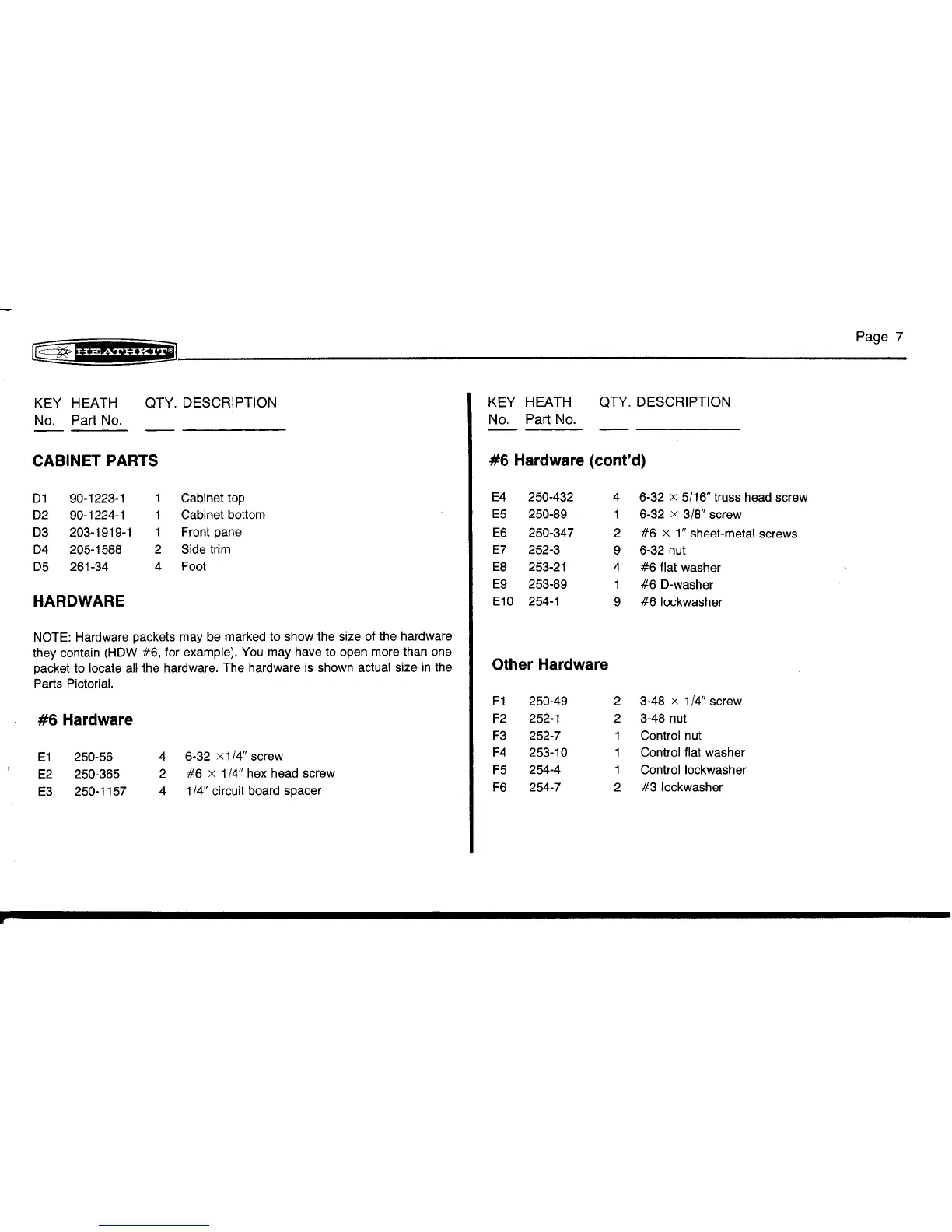

KEY HEATH QTY. DESCRIPTION
No. Part No.
KEY HEATH QTY. DESCRIPTION
No. Part No.
01 90-1223-1
02 90-1224-1
03 203-1919-1
04 205-1588
05 261-34
1 Cabinet top
1 Cabinet bottom
1 Front panel
2 Side trim
4 Foot
E4 250-432
4
6-32 x 5/16" truss head screw
E5 250-89
1 6-32 x 3/8" screw
E6 250-347
2
#6 x 1" sheet-metal screws
E7 252-3
9
6-32 nut
E8 253-21
4
#6 flat washer
E9 253-89
1 #60-washer
E10 254-1
9 #610ckwasher
NOTE: Hardware packets may be marked to show the size of the hardware
they contain (HOW #6, for example). You may have to open more than one
packet to locate all the hardware. The hardware is shown actual size in the
Parts Pictorial.
E1 250-56
E2 250-365
E3 250-1157
4 6-32 x 1/4" screw
2 #6 x 1/4" hex head screw
4 1/4" circuit board spacer
F1 250-49
F2 252-1
F3 252-7
F4 253-10
F5 254-4
F6 254-7
2 3-48 x 1/4" screw
2 3-48 nut
1 Control nut
1 Control flat washer
1 Control lockwasher
2 #3 lockwasher
