Heathkit HW-12 - Page 22

3/4" seal eee ae he
eS
ane CR Be
| Coy

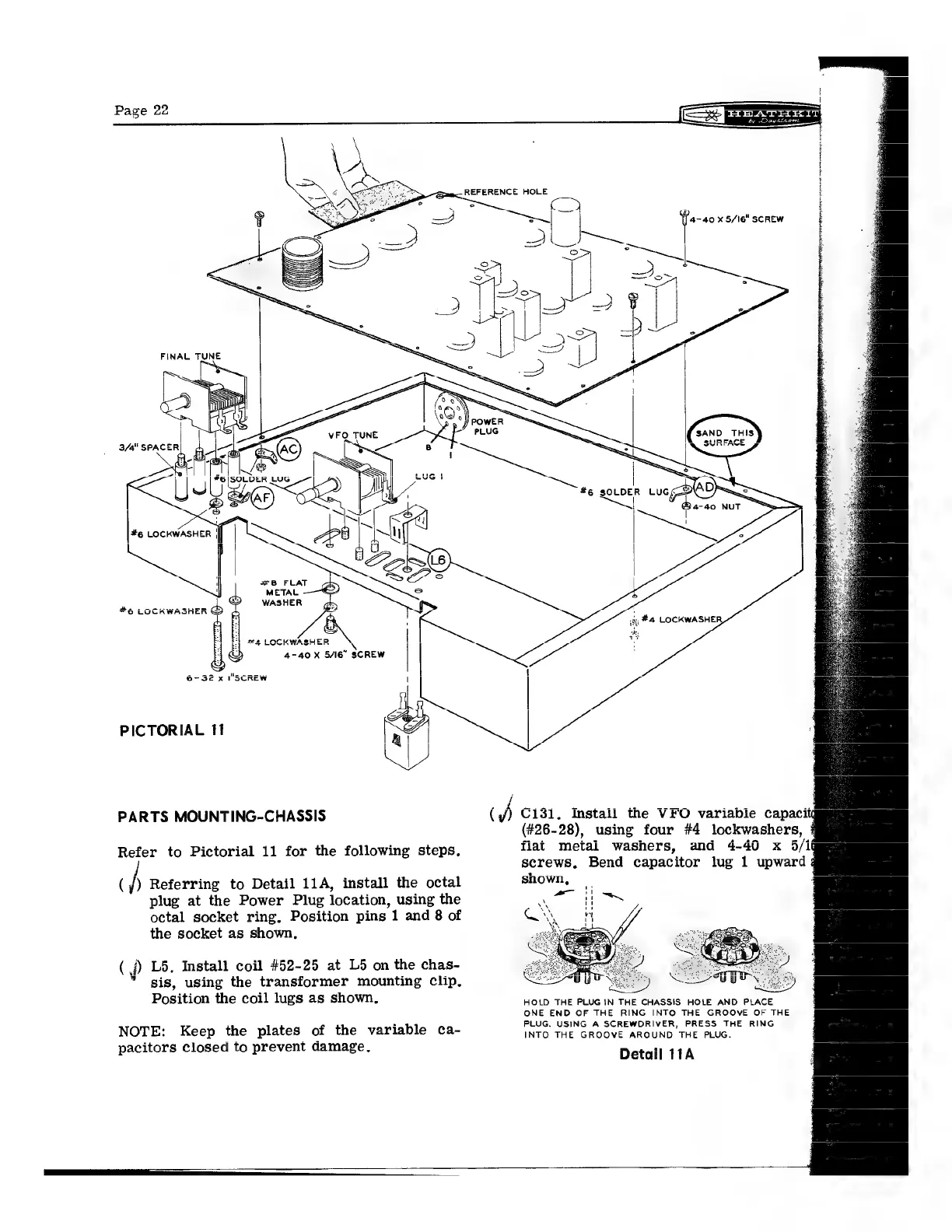

PICTORIAL 11
PARTS MOUNTING-CHASSIS
Refer to Pictorial 11 for the following steps.
(jf) Referring to Detail 114, install the octal
plug at the Power Plug location, using the
octal socket ring. Position pins 1 and 8 of
the socket as shown,
(, ) L5. Install coil #52-25 at L5 on the chas-
¥ sis, using the transformer mounting clip,
Position the coil lugs as shown,
NOTE: Keep the plates of the variable ca-
pacitors closed to prevent damage,
REFERENCE HOLE
POWER
PLUG
en
—
ao
cle
ad
ae
acl
Me
yee
>
AG
ca ia
(y) C131. Install the VFO variabie capac
i
(#26-28), using four #4 lockwashers, _
fiat metal washers, and 4-40 x 5/1
screws, Bend capacitor lug 1 upward |
shown,
HOLD THE PLUGIN THE CHASSIS HOLE AND PLACE
ONE END OF THE RING INTO THE GROOVE OF THE
PLUG. USING A SCREWDRIVER, PRESS THE RING
INTO THE GROOVE AROUND THE PLUG.
Detail 11A
