(,/) Install the pilot lamp mounting bracket to
” the chassis, using 6-32 x 1/4"' screws, a#6
solder lug, #6 lockwashers, and 6-32 nuts,
Position the solder lug against lug 1 of coil
L5.
( ) Mount the pilot lamp sockets to the pilot
lamp mounting bracket, using a 6-32 x
1/4" screw, #6 lockwasher, and a 6-32 nut,
WKS
A
ome
Refer to Detail 16A for the following steps,
KGS
6-32 NUT
"sg X 174" SCREW
#6 SOLDER LUG
gr ™
j- -
as
x aviee
Fs -----§--
/
#6 LOCKWASHER
6-32 NUT
8-6
- --@—_
i

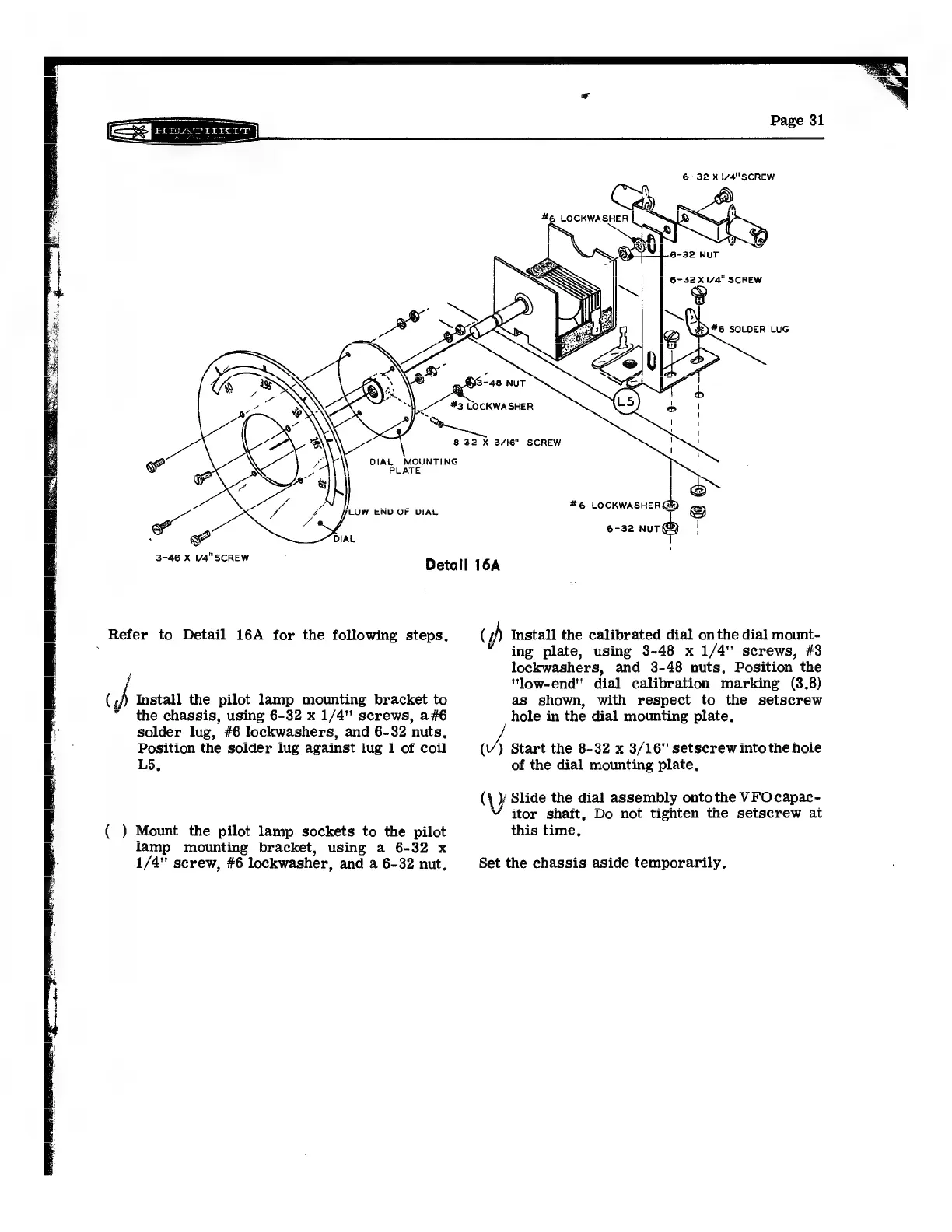

Detail 16A
(7/) Install the calibrated dial on the dial mount-
“ing plate, using 3-48 x 1/4" screws, #3
lockwashers, and 3-48 nuts, Position the
"low-end" dial calibration marking (3.8)
as shown, with respect to the setscrew
hole in the dial mounting plate.
/ ; ce os
(V) Start the 8-32 x 3/16" setscrew into the hole
of the dial mounting plate,
(\ ¥ Slide the dial assembly onto the VFO capac-
Y itor shaft, Do not tighten the setscrew at
this time,
Set the chassis aside temporarily.
