START
..,.
15 Q (brown-green-black),
15 Q' (brown-green-black).
10 kQ (brown-black-orange).
10 kQ (brown- black-orange).
4700 Q (yellow-violet-red),
56 kQ (green-blue-orange),
( ) ,68 IJ-F electrolytic capacitor.
NOTE: Position the positive (+)
lead as shown.
MAY BE MARKED WITH POSITIVE
SIGN (+) OR COLOR DOT
( ) Solder all the leads to the
foil and cut off the excess
lead lengths,
IDENTIFICATION DRAWING
PART NUMBER
The steps on this page are
done in this area of the cir-
cuit board,

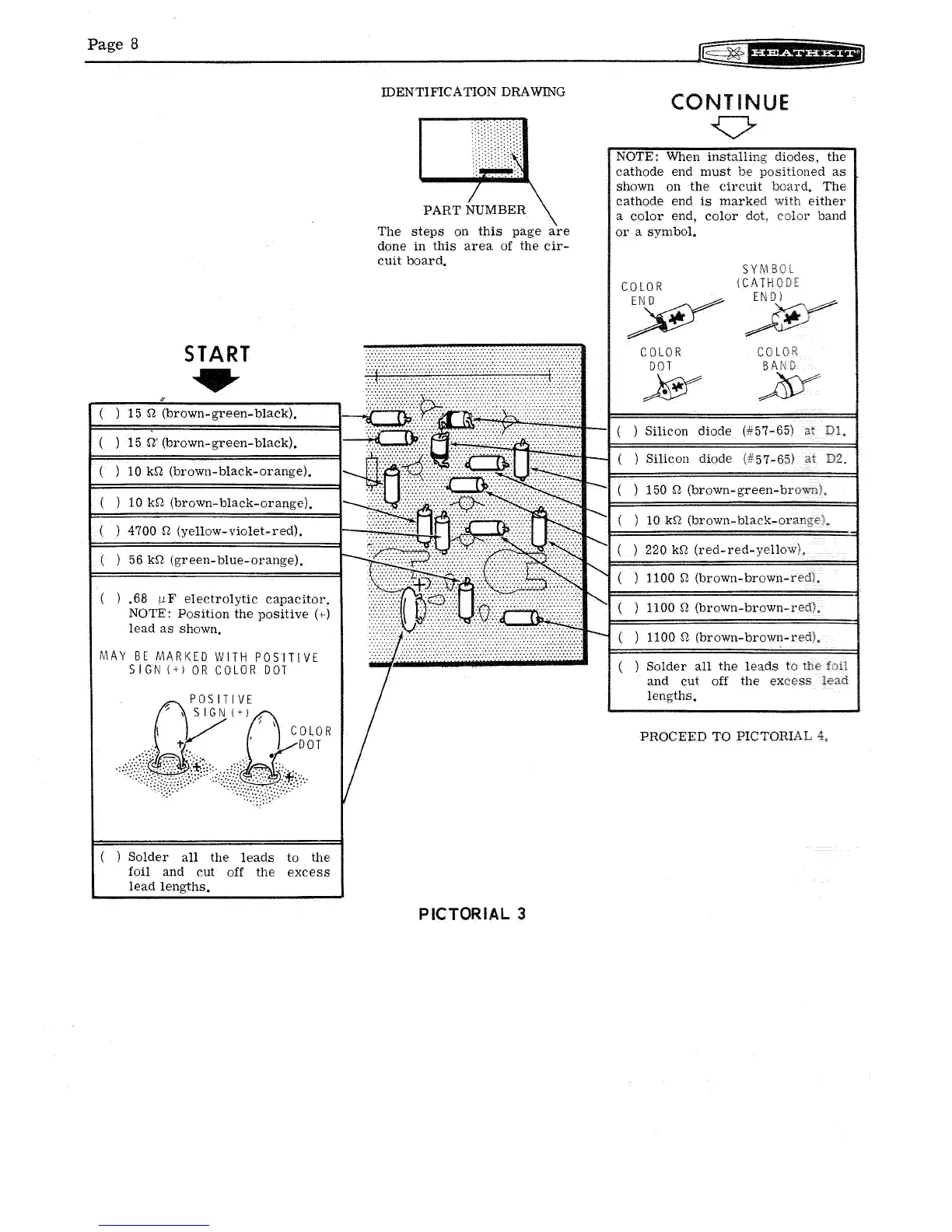

PICTORIAL 3
CONTINUE
o
NOTE: When installing diodes, the
cathode end must be positioned as
shown on the circuit board, The
cathode end is marked either
a color end, color dot. band
or a symbol.
CO LO R
~
COLOR
001
)!fr
SYM
(CATHO
END~
~
COLO
BAND
~
) Silicon diode (#57-65)
Silicon diode (#57-65)
150 Q (brown-green-brownl.
10 kQ (brown-black-orange),
220 kQ (red-red-yellow).
1100 Q (brown-brawn-red),
1100 Q (brown-brown-red).
1100 Q (brown-brown-red).
Solder all the leads to
and cut off the excess
lengths.
PROCEED TO PICTORIAL
