Heathkit IG-18 User Manual

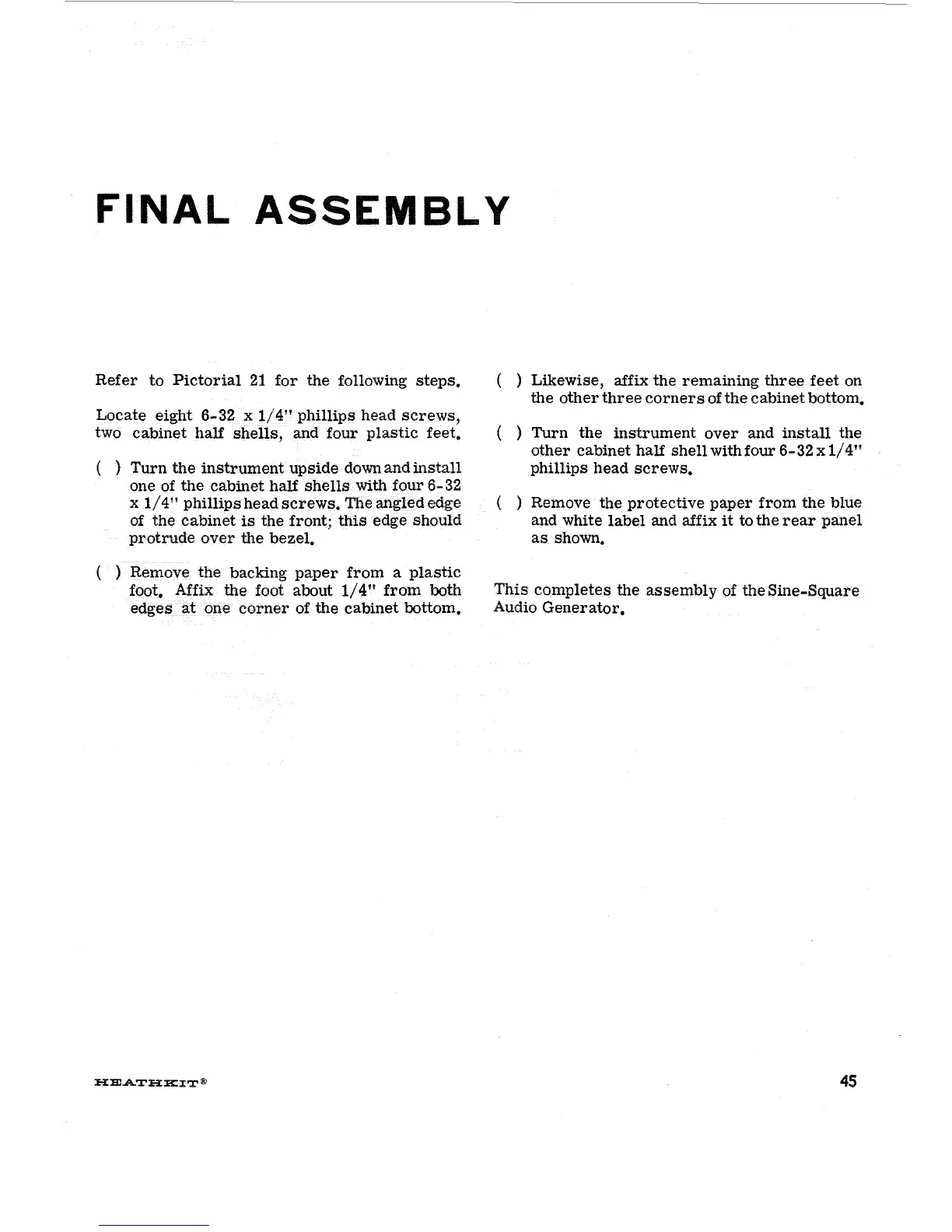

FINAL ASSEMBLY
Refer to Pictorial 21 for the following steps.
Locate eight 6-32 x 1/4" phillips head screws,
two cabinet half shells, and four plastic feet.
( ) Turn the instrument upside down and install
one of the cabinet half shells with four 6-32
x
1/4" phillips head screws. The angled edge
of
the cabinet is the front; this edge should
protrude over the bezel.
) Remove
the backing paper from a plastiC
foot. Affix the foot about
1/4" from both
edges
at one corner of the cabinet bottom.
HE.ATHKIT@
(
Likewise, affix the remaining three feet on
the
other three corners of the cabinet bottom.
Turn the instrument over and install the
other cabinet half shell with four 6- 32 x 1/4"
phillips head screws.
Remove the protective paper from the blue
and white
label and affix it to the rear panel
as shown.
This completes the assembly of the Sine-Square
Audio Generator.
45
