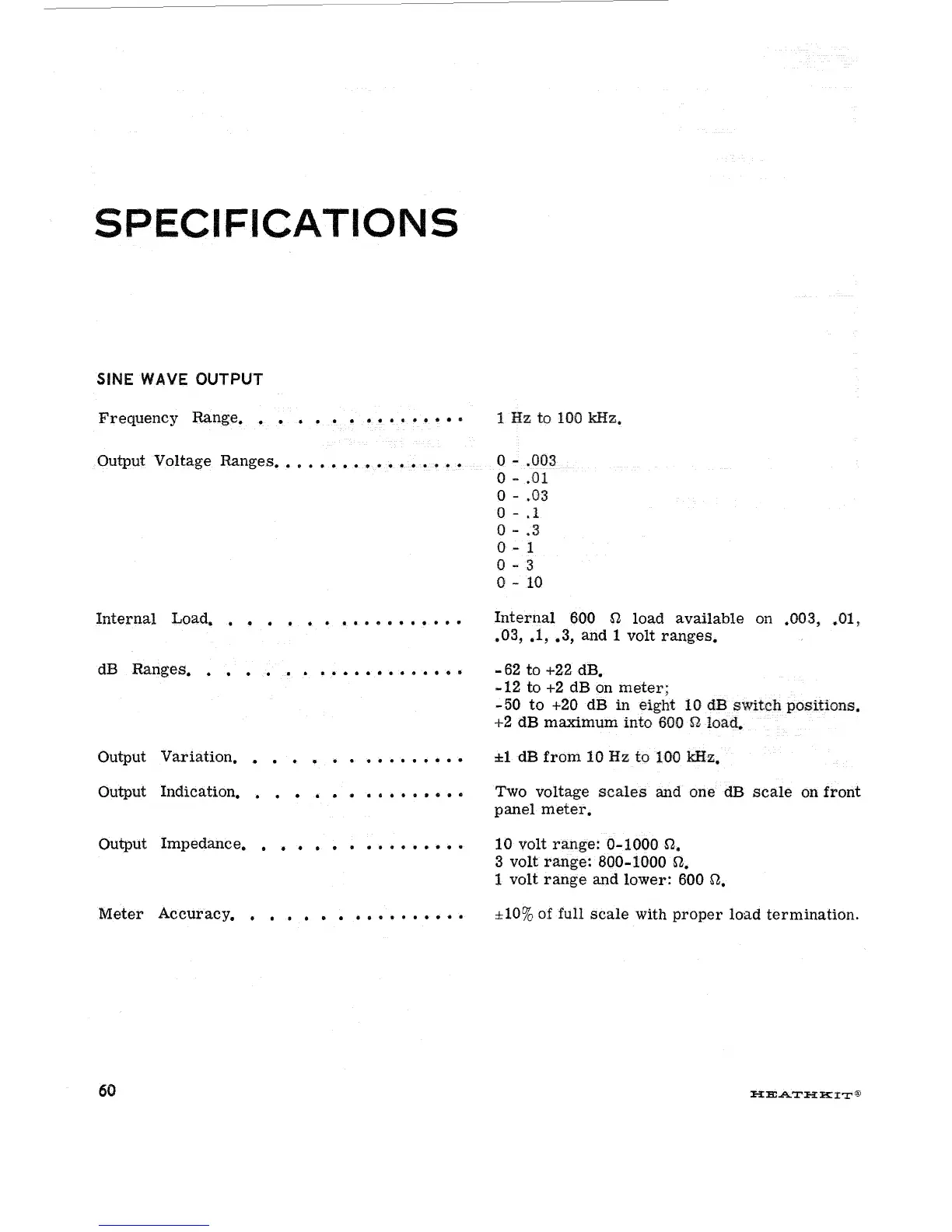

SPECIFICATIONS
SINE WAVE OUTPUT
Frequency Range. • • • • • • • ••••••••
Output Voltage Ranges •••••••••••••••••
Internal Load.
. . . . . . . ......... .
dB Ranges. •
. . . . . . ........... .
Output Variation.
. . . ....... .
Output Indication. •
. . .
.........
Output Impedance. • • • • • • • ••••••••
Meter Accuracy. • • • • • • • •••••••••
60
1 Hz to 100 kHz.
o - .003
0-.01
o - .03
o - .1
o - .3
o - 1
0-3
o - 10
Internal 600 0 load available on .003, .01,
.03, .1, .3, and 1 volt ranges.
- 62 to +22 dB.
-12 to +2 dB on meter;
- 50 to +20 dB in eight 10 dB switch positions.
+2 dB maximum into 600 0 load.
±1 dB from 10 Hz to 100 kHz.
Two voltage
scales and one dB scale on front
panel meter.
10 volt range: 0-1000 O.
3 volt range: 800-1000 O.
1 volt range and lower: 600 O.
±10% of full scale with proper load termination.
HEATHKIT@
