Heathkit IG-18 User Manual

Page 61
~:: N 11111111 111111111 111111111 11111 ill I
Hz:::
<=>
<=>
<=>
o 0 00
o 0 00
o 0 00
N 1"""\ '"=t~
.,.
<=>
<:>

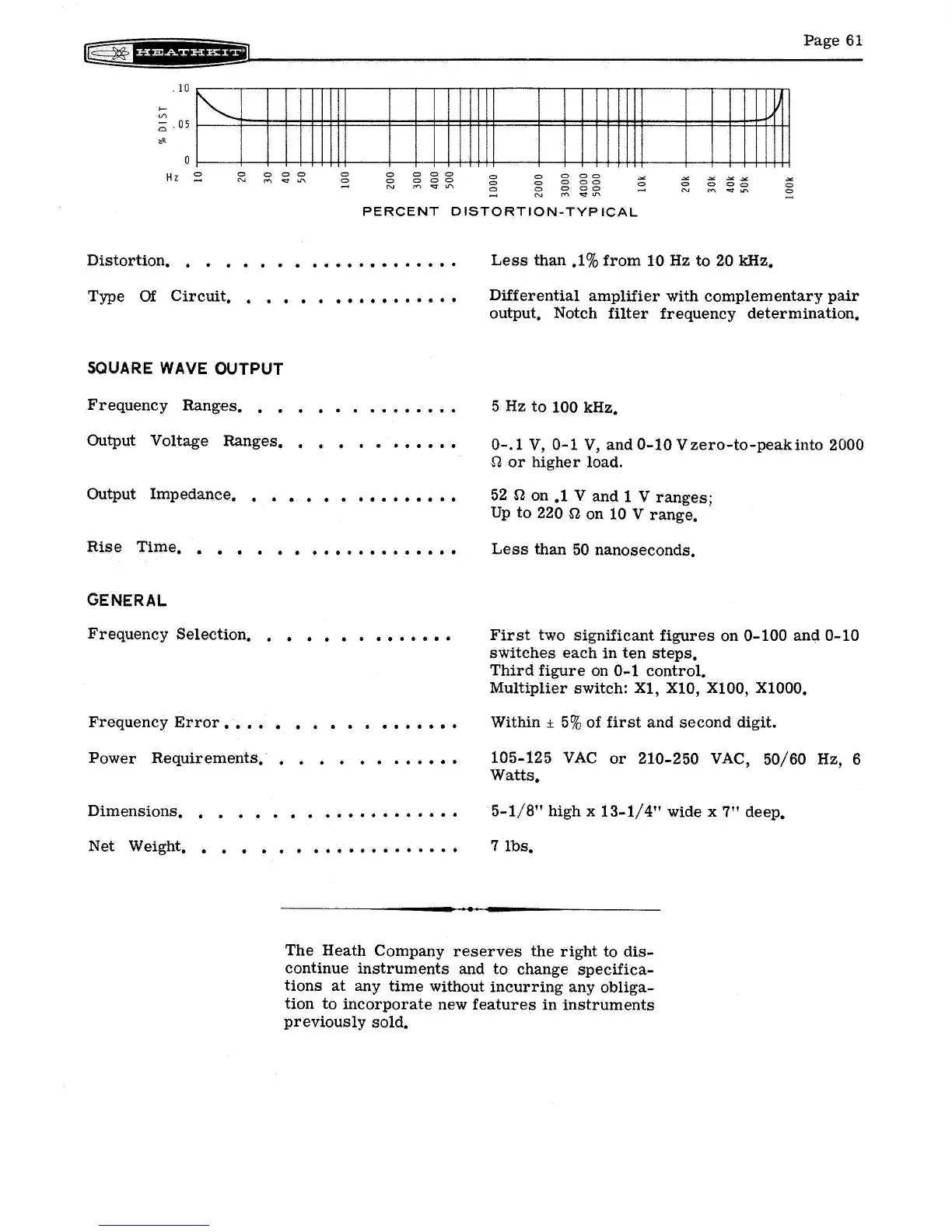

PERCENT DISTORTION-TYPICAL
Distortion. • • • •
. . . ............ .
Type Of Circuit. •
. . . . .......... .
SQUARE WAVE OUTPUT
Frequency Ranges. • •
Output Voltage Ranges. •
. . ..... .
Output Impedance.
. . . . . . . ....... .
Rise Time. . • • . • . . ...........•
GENERAL
Frequency Selection.
. . . . . . . ..... .
Frequency Error. • •• •
. . . . . . ..... .
Power Requirements.
. . . . . .....
Dimensions.
. . . . . ........... .
Net Weight. •
. . . . . . ........... .
Less than .1% from 10 Hz to 20 kHz.
Differential amplifier with complementary pair
output. Notch filter frequency determination.
5 Hz to 100 kHz.
0-.1 V, 0-1 V, and 0-10 Vzero-to-peakinto 2000
n
or higher load.
52 non .1 V and 1 V ranges;
Up to 220 n on 10 V range.
Less than 50 nanoseconds.
First two significant figures on 0-100 and 0-10
switches each in ten steps.
Third figure on 0-1 control.
Multiplier switch: Xl, XI0, X100, XI000.
Within ± 5% of first and second digit.
105-125
VAC or 210-250 VAC, 50/60 Hz, 6
Watts.
5-1/8" high x 13-1/4" wide x 7" deep.
7lbs.
The Heath Company reserves the right to dis-
continue instruments and to change specifica-
tions at any time without incurring any obliga-
tion to incorporate new features in instruments
previously sold.
