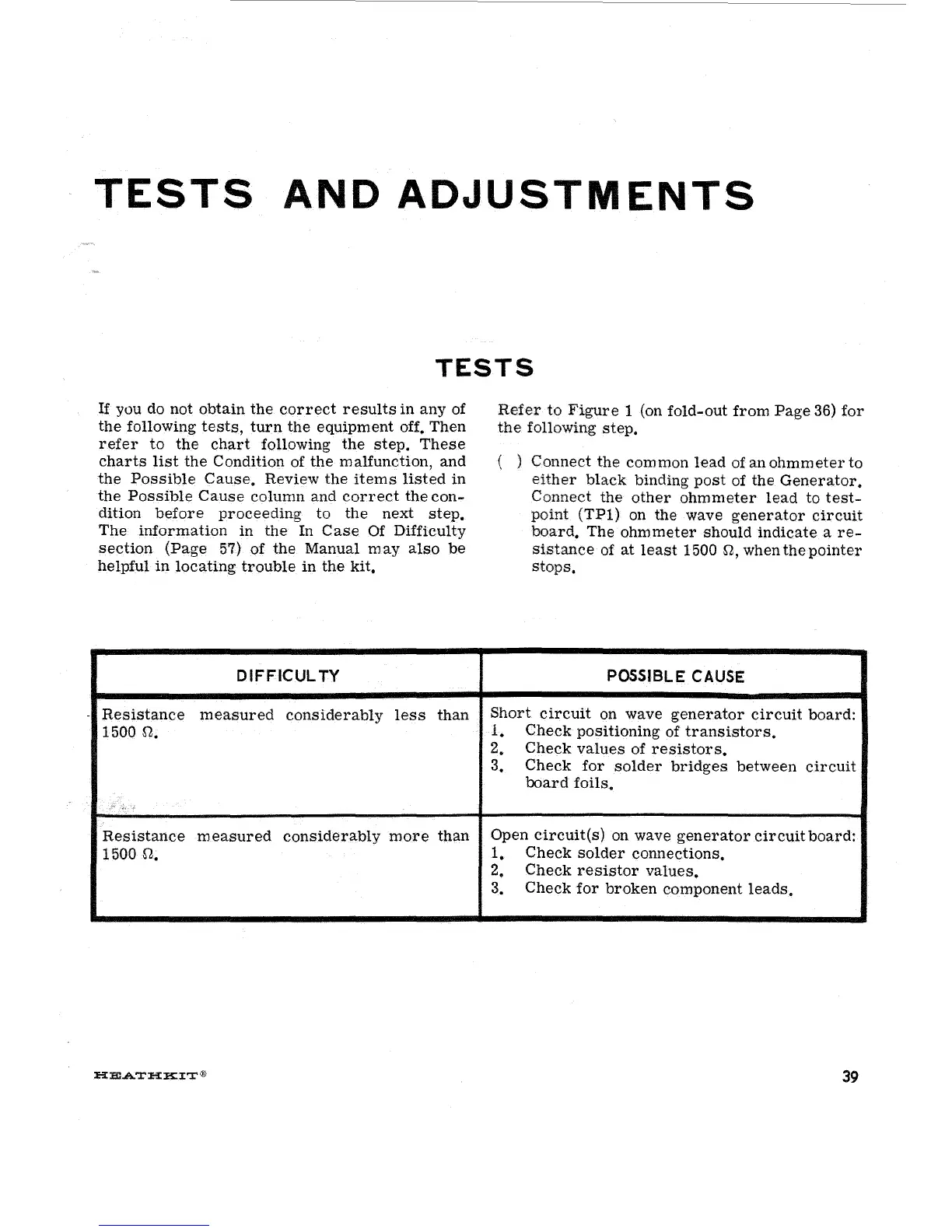

TESTS
AND
ADJUSTMENTS
TESTS
If you do
not
obtain
the
correct
results
in
any
of
the
following
tests,
turn
the
equipment
off.
Then
refer
to
the
chart
following
the
step.
These
charts
list
the
Condition of
the
malfunction,
and
the
Possible
Cause.
Review
the
items
listed
in
the
Possible
Cause
column
and
correct
the
con-
dition
before
proceeding
to
the
next
step.
The
information
in
the
In
Case
Of
Difficulty
section
(Page
57)
of
the
Manual
may
also
be
helpful
in
locating
trouble
in
the
kit.
DIFFICUL
TV
Resistance
measured
considerably
less
than
1500
Q.
"""
;"
Resistance
measured
considerably
more
than
1500
Q.
Refer
to
Figure
1 (on
fold-out
from
Page
36)
for
the
following
step.
( )
Connect
the
common
lead
of
an
ohmmeter
to
either
black
binding
post
of
the
Generator.
Connect
the
other
ohmmeter
lead
to
test-
point
(TP1) on the wave
generator
circuit
board.
The
ohmmeter
should
indicate
a
re-
sistance
of
at
least
1500
Q,
when
the
pointer
stops.
POSSIBLE CAUSE
Short
circuit
on wave
generator
circuit
board:
1.
Check
positioning
of
transistors.
2.
Check
values
of
resistors.
3.
Check
for
solder
bridges
between
circuit
board
foils.
Open
circuit(s)
on wave
generator
circuit
board:
1.
Check
solder
connections.
2.
Check
resistor
values.
3.
Check
for
broken
component
leads.
39
