Heathkit IO-4205 - Circuit Board X-Ray Views

CIRCUIT BOARD X-RAY VIEWS
NOTE: To find the PART NUMBER of a component
for the purpose of ordering a replacement part :
A.
Find the circ uit component number (R5 , C3,
etc.) on
the "X-Ray View ."
B. Locate this same number in the "Circuit Com-
ponent Number" column of the "Parts List."
C. Adjacent to the circuit component number, you
will find the PART NUMBER and DESCRIP-
TION
which mu st be supplied when you order a
replacement part.

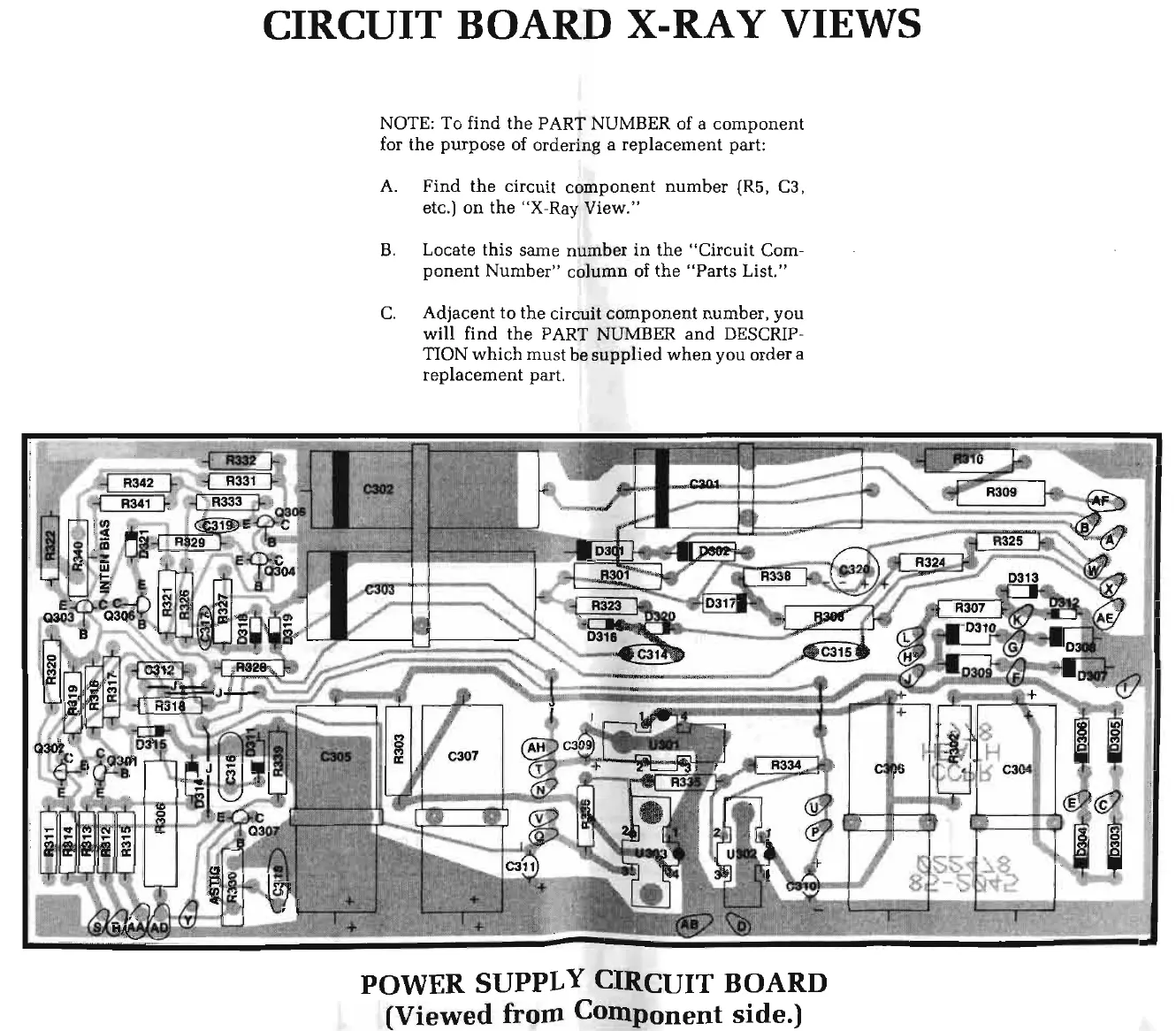

POWER SUPP LY CIRCUIT BOARD
(Viewed froill Component side.)
