Page 42
The steps performed in this Pictorial are
IDENTIFICATION
DRAWING
in this area of the
circuit board.
C202: .01
JLF ceramic.
CAUTION:
There are both non-
polarized and polarized electrolytic
capacitors
in this kit. Nonpolarized
capacitors are marked NP , and
polarized capacitors have a positive
"
+"or negative"-" marking. Be sure
to use an NP capacitor when it is
specified
in a step. All other electrolyt-
ic capacitors will be
the polarized type.
NOTE: NP capacitors
can be installed
with either lead in either hole .
C203: 10
JLF NP electrolytic.
C204:
33 pF ceramic.
C205: 56
pF ceramic.
NOTE: When you install a polarized
electrolytic capacitor, always
match
the positive ( +) mark on the capacitor
with the positive ( +) mark on the cir-
cuit board OR match the minus ( -)
mark on the capacitor with th e minus
( -) mark on the circuit board.
C225: 10
JLF electrolytic.
C234: 10
JLF electrolytic.
C217: 10
JLF electrolytic.
( vf C227: 10 JLF electrolytic.
( ) Solder
the leads to the foil and cut
off the excess lead length s.
- n_
PART
NUMBER
C207:
22 JLF electrolytic.
When you install the following electrolytic
capacitor (C231},
insert the positive"+" lead in the
negative "-" circuit board hole and the negative
capacitor
lead in the positive circuit boa d hole . !_he : ·
circuit board screen is incorrect .
1
:
~ - ..0... • ~-.----- ...... - - • . - - ----- - · -- - · -- -j
negative "-" circuit board hole and the negative I
1 capacitor lead in the positive circuit bo d hole. The
I board screen is incorrect.

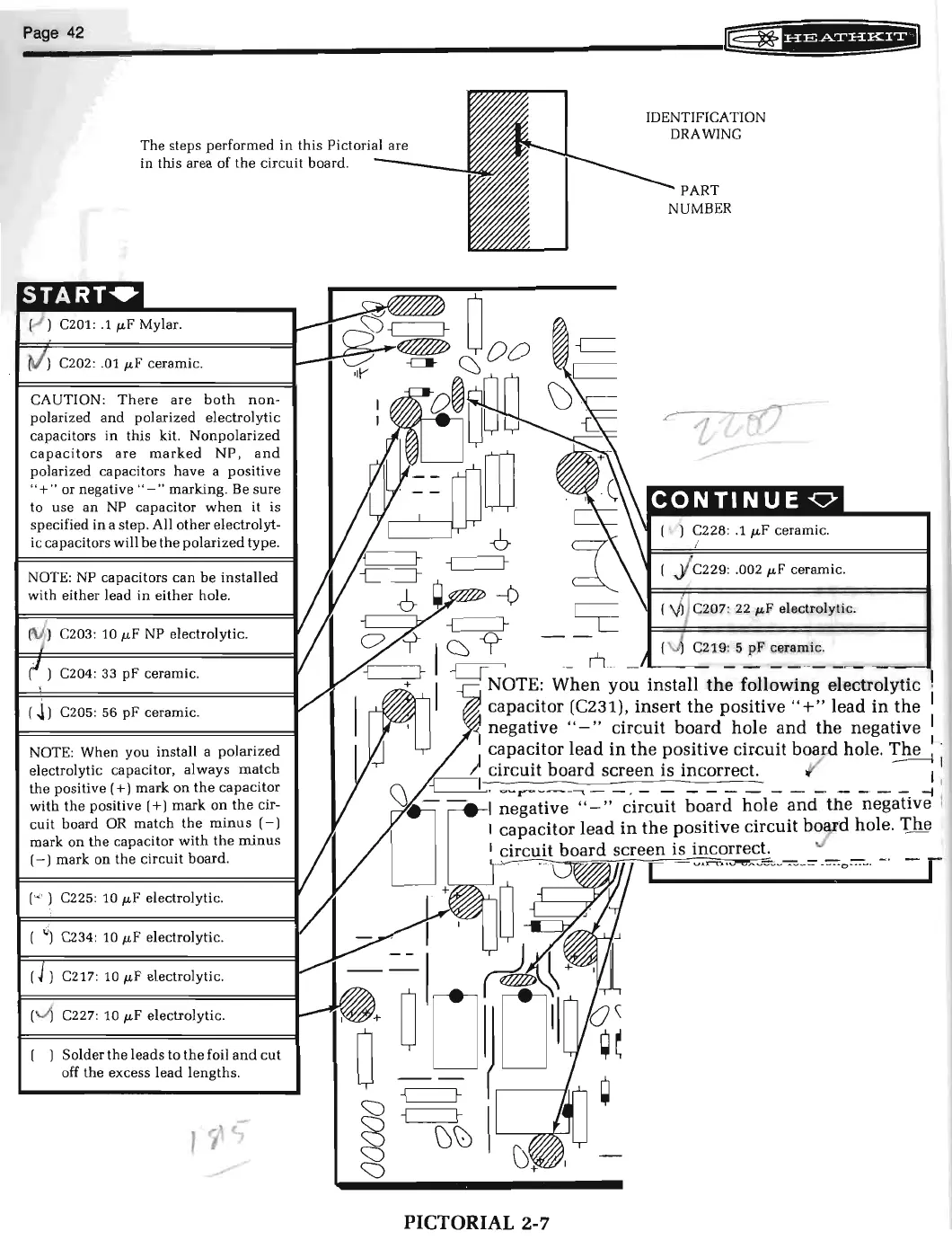

PICTORIAL 2-7
