The steps performed in this Pictorial are
in this area of the circuit bo a rd .
R327: 27 k!l (Red-Viol-Org).
0318: 1N4149 diode (#56-56).
{
0319 : 1N4149 diode (#56-56).
( tJ 0316 : 1N4149 diode (#56-56).
(
....-) R3 23: 1 1\1.0. (Brn-Blk-Grn).
(
/) Solder the leads to the foil and cut
off the excess lead lengths.
0310 : 1N2071 diode (#57-27).
0309 : 1N2071 diode (#57-27).
0308 : 1N2071 diode (#57-27).
0307 : 1N2071 diode (#57-27).
Solder the leads to the foil and cut
off the excess lead lengths .

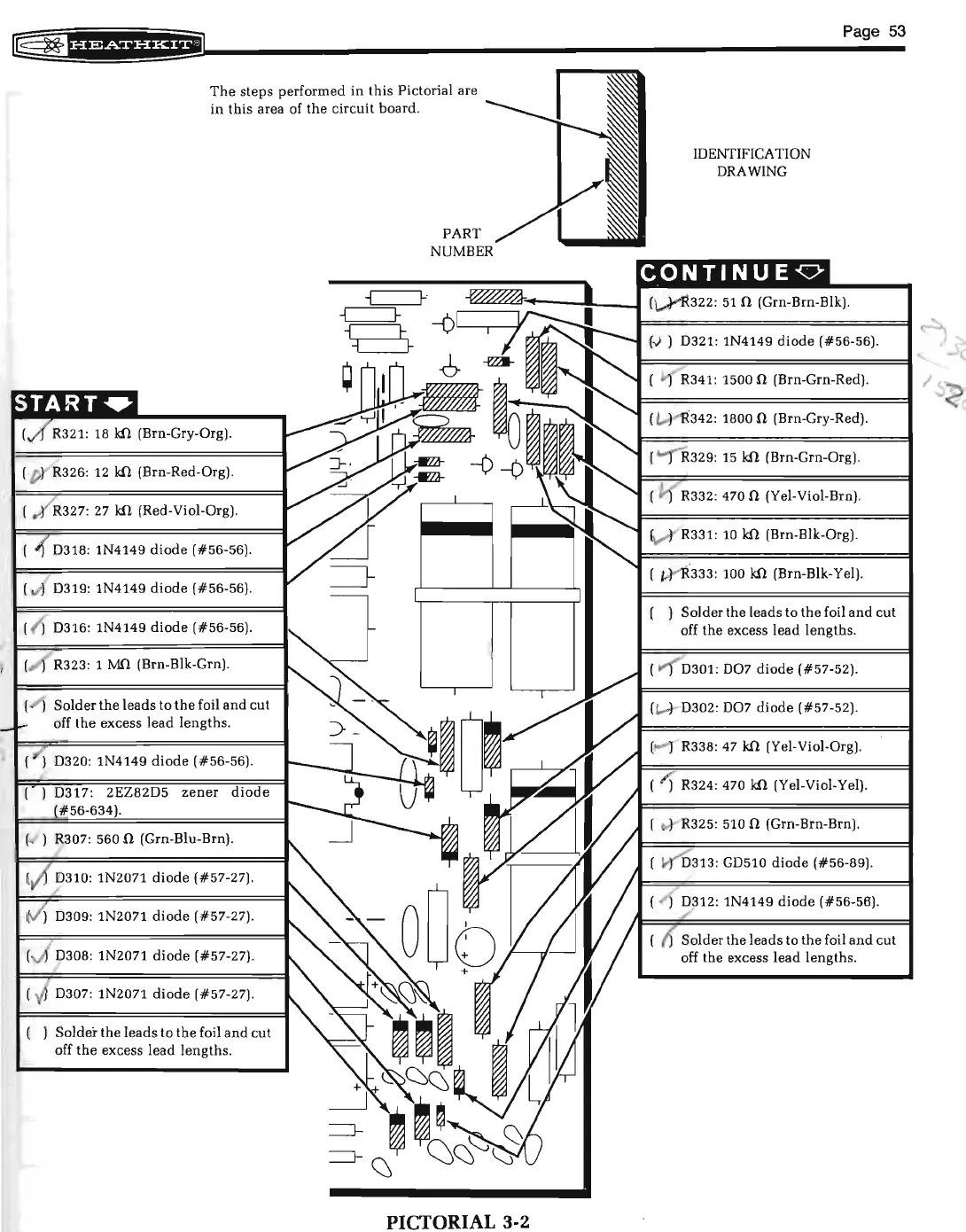

PICTORIAL 3-2
IDENTIFICATION
DRAWING
Page 53
r :;:=== =======l . J J(
Is
.342: 1800 n (Brn-Gry-Red).
R332: 470
n (Yel-Viol-Brn).
./
( IA""R 333: 100 k!l (Brn-Blk-Yel).
)
Solder t he leads to the foil and cut
off the excess lead lengths .
0301 : 007 diode (#57-52).
R324: 470 k!l
(Y el -V iol-Yel).
2: 1N4149 diode (#56-56).
Solder the l eads to the foil a nd cut
off the excess lead lengths .
'
