- 10 -
will be sent due to the action of the dot closure memory). Thus, the character is sent with a simple
"squeezing" of the paddles. This is often referred to as a "squeeze keyer". Several keyer timing ex-
amples are shown in Pictorial 6-4.

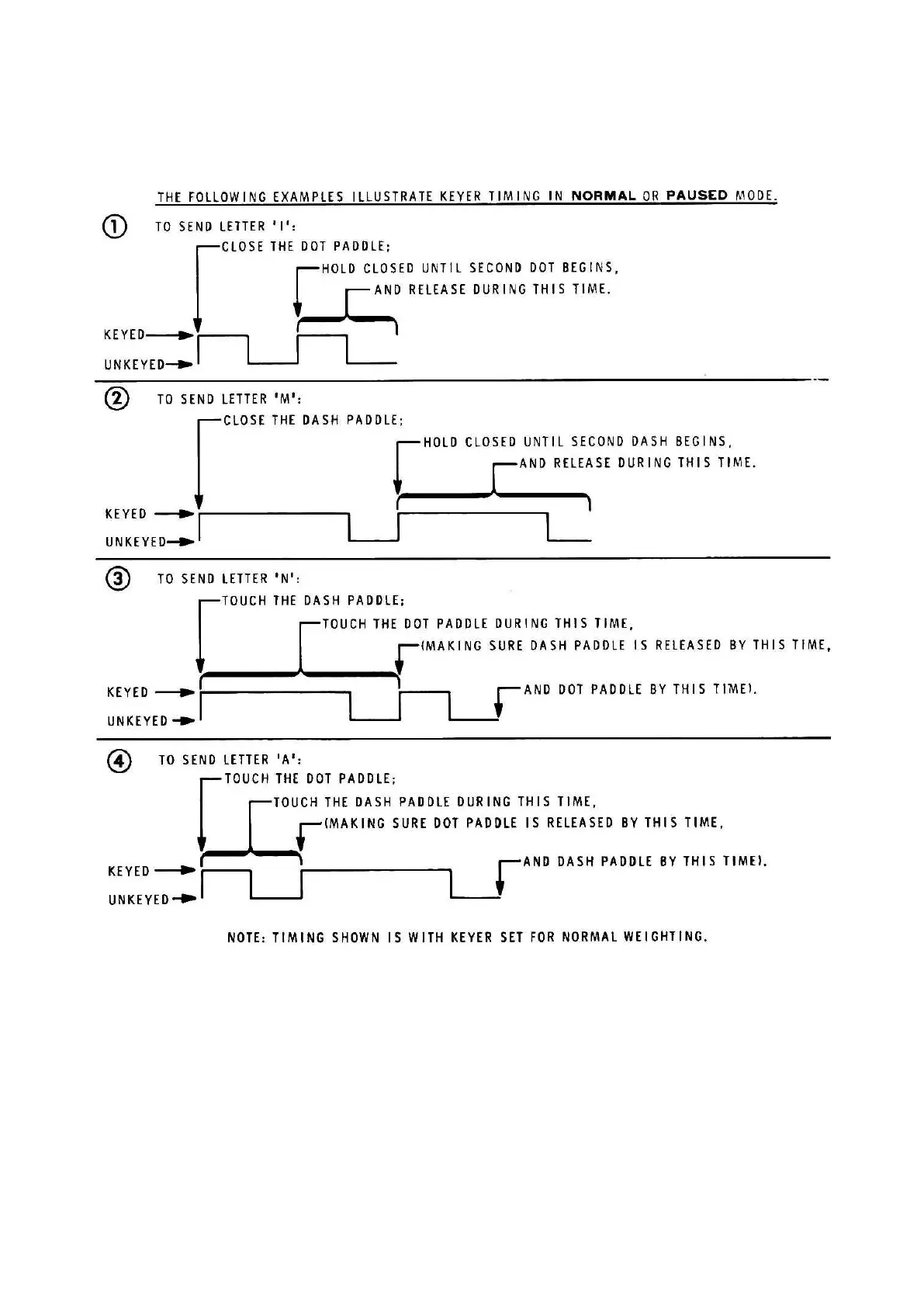

PICTORIAL 6-4
