K. Air Shutter Setting
The air shutter is provided in the closed position for natu-
ral gas and 1/8 in. open for propane. See Figure 14.10 for
location of air shutter.
• Loosen the set screw.
• Rotate the air shutter to the right to open.
• Rotate the air shutter to the left to close.
• Tighten the set screw.
NOTICE: If sooting occurs, provide more air by opening
the air shutter.

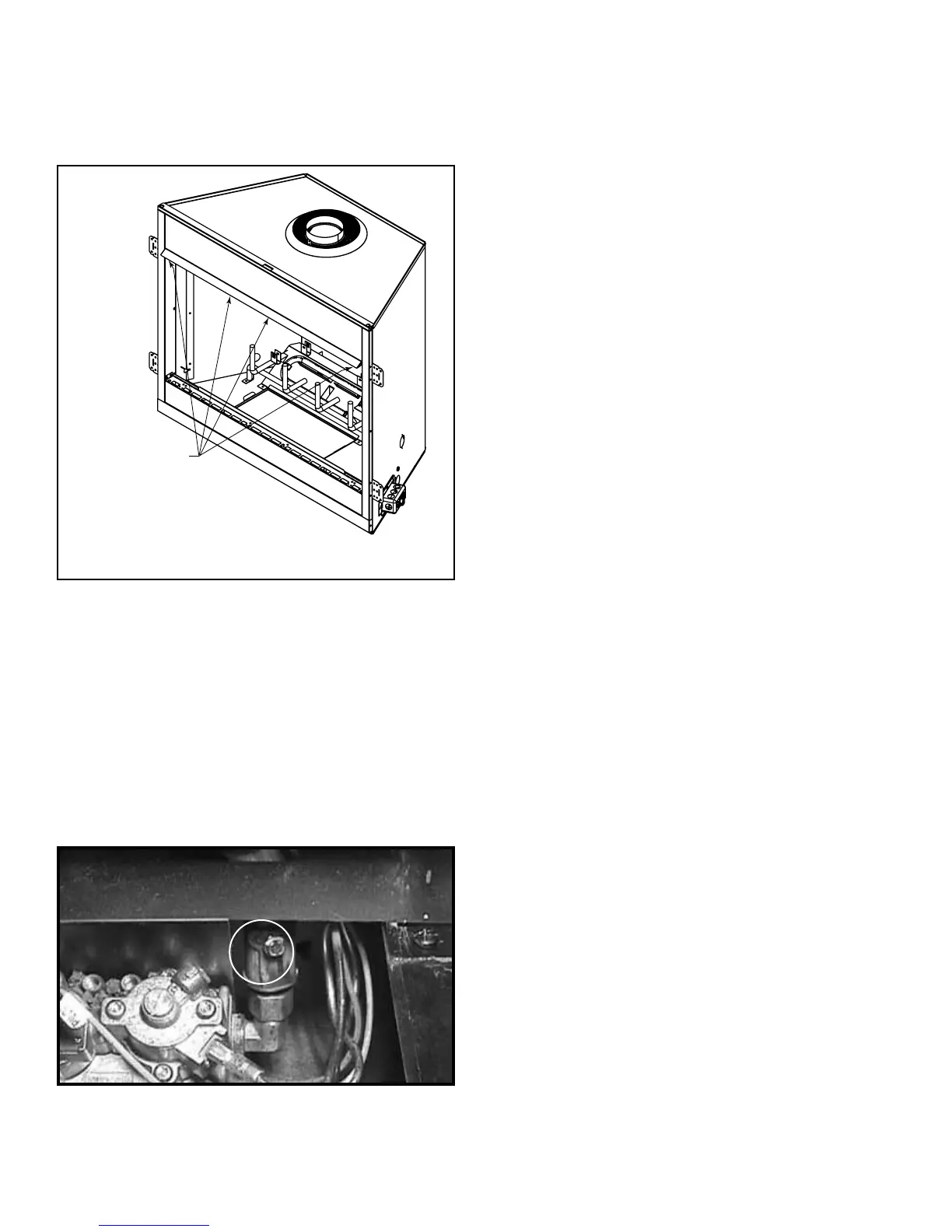

Figure 14.10 Air Shutter Location
J. Hood
The hood is located above the replace opening. The
hood must be attached or a re hazard may result. See
Figure 14.9 to locate four screws holding the hood in
place.
Screws holding
hood in place
Figure 14.9 Hood Installation/Removal
