Heatilator • NDV/NBV Upgrade Kit • 2382-955 • 1/16
See Table 1 for corresponding log set and individual logs for each size Novus model.
SIZE 3630 3933 4236 4842
ASSEMBLY SRV2380-070 SRV2381-070 SRV2382-070 SRV2383-070
LOG 1 SRV2380-071 SRV2380-071 SRV2382-071 SRV2383-071
LOG 2 SRV2380-072 SRV2381-072 SRV2381-072 SRV2383-072
LOG 3 SRV2380-073 SRV2381-073 SRV2381-073 SRV2383-073
LOG 4 SRV2380-074 SRV2380-074 SRV2382-074 SRV2382-074
LOG 5 SRV2380-075 SRV2380-075 SRV2380-075 SRV2383-075
Table 1.

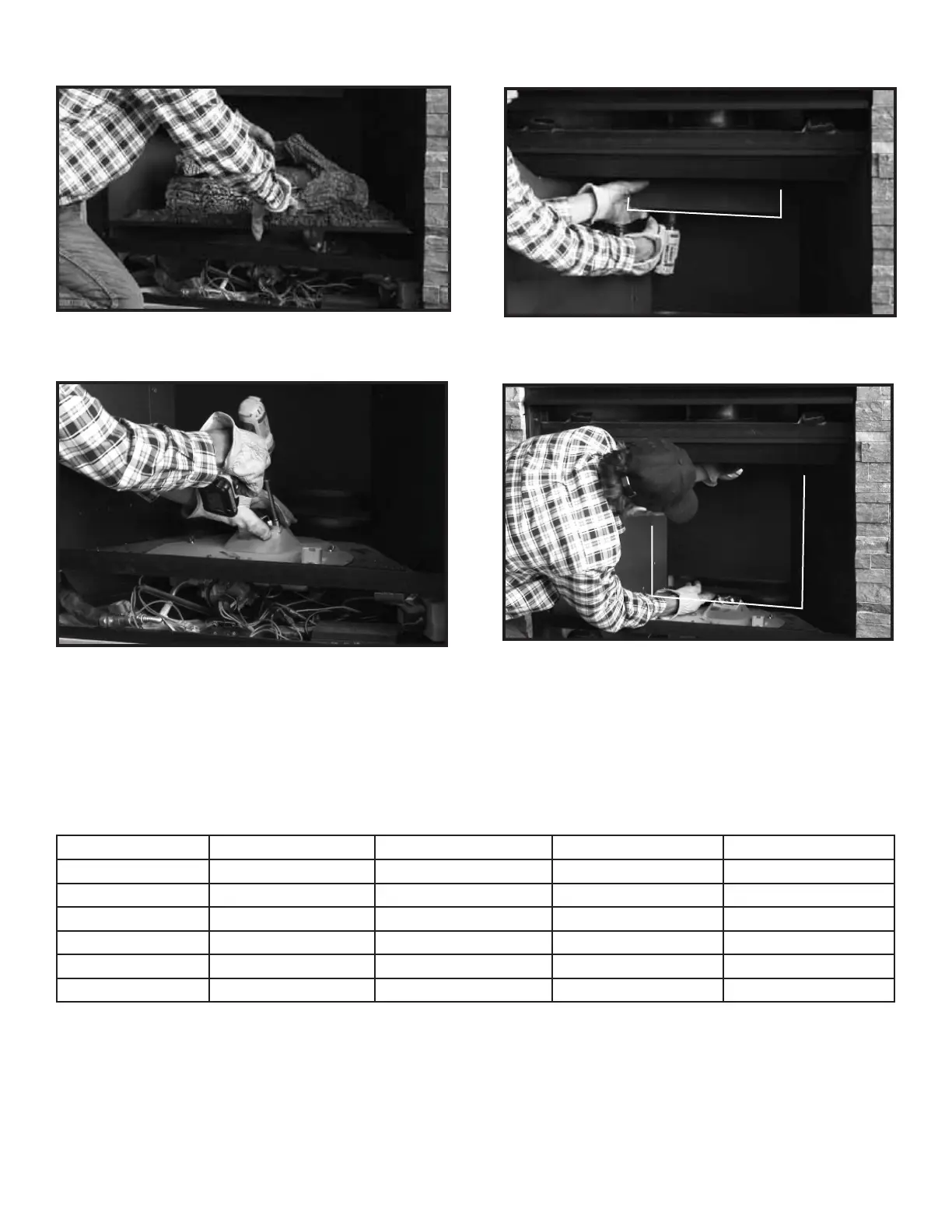

5. Install the logs on the hearth pan as shown on the next page.
4. Remove the false back. See Figure 5.
Figure 5.
3. Remove the fl ue visor. See Figure 4.
Figure 4.
1. Remove the hearth pan and log set. See Figure 2.
2. Remove the pilot shield. See Figure 3.
Figure 2.
Figure 3.
