Heatilator • NDV/NBV Upgrade Kit • 2382-955 • 1/16

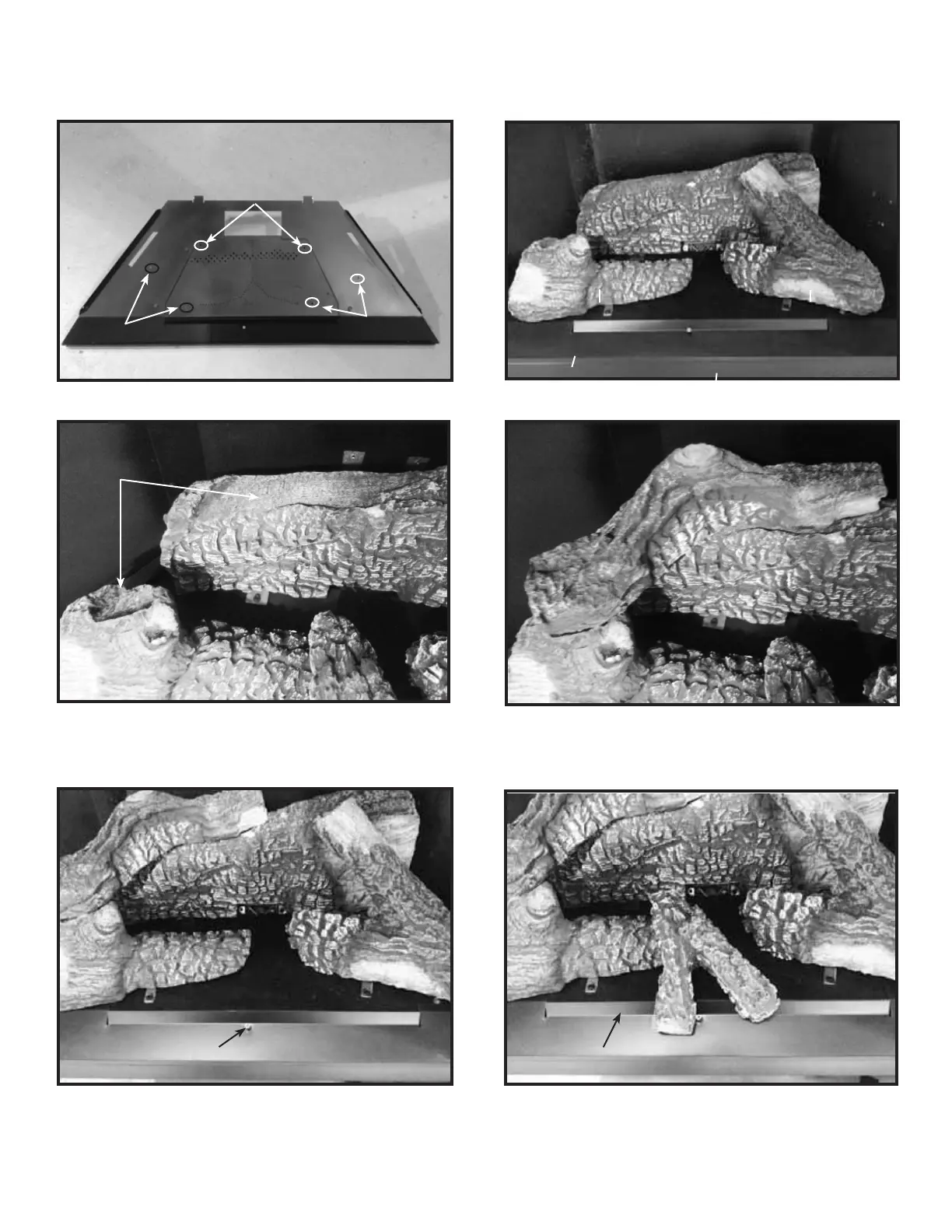

Figure 9. Log #4 in Position
1
1
Figure 8. Locations of Flat Spots for Log #4
2
2
Figure 7. Log Set Shown Assembled
1
1
2
2
3
3
CAUTION: Logs are fragile, handle with care.
FLAT SPOTS FOR LOG #4
FLAT SPOTS FOR LOG #4
LOG #4: Place Log #4 into position by setting the left end of Log #4 into the fl at spot on Log #2 and then resting the right
end, or nose, of Log #4 on the fl at spot on Log #1. Figure 8 shows locations of fl at spots. Figure 9 shows Log #4 installed.
4
4
See Figure 6 for locations of fasteners for each log.
Figure 6. Log Fastener Locations on Base Pan
FASTENERS-LOG #1
FASTENERS-LOG #1
FASTENERS-LOG #2
FASTENERS-LOG #2
FASTENERS-LOG #3
FASTENERS-LOG #3
Log #5: Place Log #5 into position. The forked end of Log #5 is positioned toward the front of the appliance, with the two
slots on the back side resting on the bent lip of the hearth pan. See Figure 11. Slide Log #5 toward the right until it contacts
the log pin as shown in Figure 11.
LOG PIN
LOG PIN
Figure 10. Log Pin Location Figure 11. Log #5 in Position
BENT LIP
BENT LIP
