Heatilator • NDV/NBV Upgrade Kit • 2382-955 • 1/16

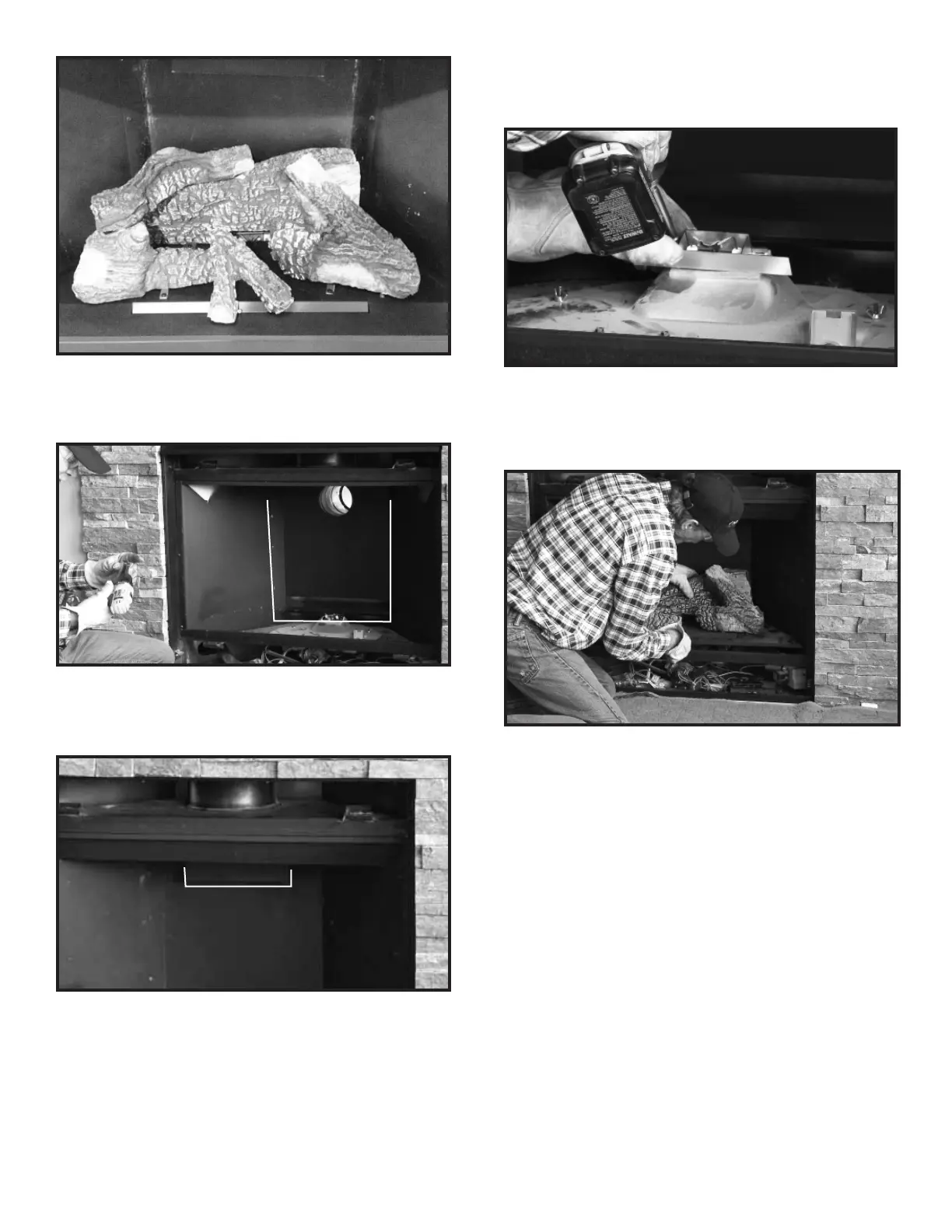

6. Assemble new false back. See Figure 13.
Heatilator, a brand of Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044
www.heatilator.com
10. Add embers and lava rock following the instructions
in the appliance installation manual.
11. Install the two top logs as shown in the log instruci-
tions on previous pages.
Figure 13.
7. Install new fl ue visor. See Figure 14.
Figure 14.
9. Install hearth pan and assembly. Place into appliance.
See Figure 16.
Figure 16.
Figure 15.
8. Install pilot shield. Pilot shield should be installed on
top of pilot assembly. See Figure 15.
4
4
5
5
1
1
2
2
3
3
Figure 12. Log Set Installed
BEND BOTH LEGS OF FLUE VISOR
BEND BOTH LEGS OF FLUE VISOR
TOWARD THE BACK OF THE FIREBOX
TOWARD THE BACK OF THE FIREBOX
