6.2 DESCALE THE STREAMLINE
1. Drain the Streamline (see section 6.1, p12).
2. Undo the locknut (rotate the locknut anticlockwise until it is clear of the inner
container)
3. Remove the Element Plate assembly (EPA) and gasket.
4. Remove scale from the element and the inner container.
5. Renew the gasket.
6. Ret to EPA and locknut to the inner container (ensure the EPA is aligned
correctly. The element should be horizontal. A location pin is included in the
EPA to ensure correct alignment).
7. Ret the locknut (rotate the locknut clockwise until the EPA is held securely
in place. NOTE: When tight, one of the locknut spokes should be at ‘9 O’
Clock’ and central to the live and neutral connections.
8. Ret the drain plug (push the drain plug fully into the inner container and
rotate clockwise 180 degrees using a 5mm allen key).
9. Ret the insulation.
10. Ret the wires and capillary bulbs (ensure the wires are re seated in the
insulation tracks and the capillary cut out and thermostat bulbs are fully
pushed home).
11. Recommission the Streamline (see section 4, p10).

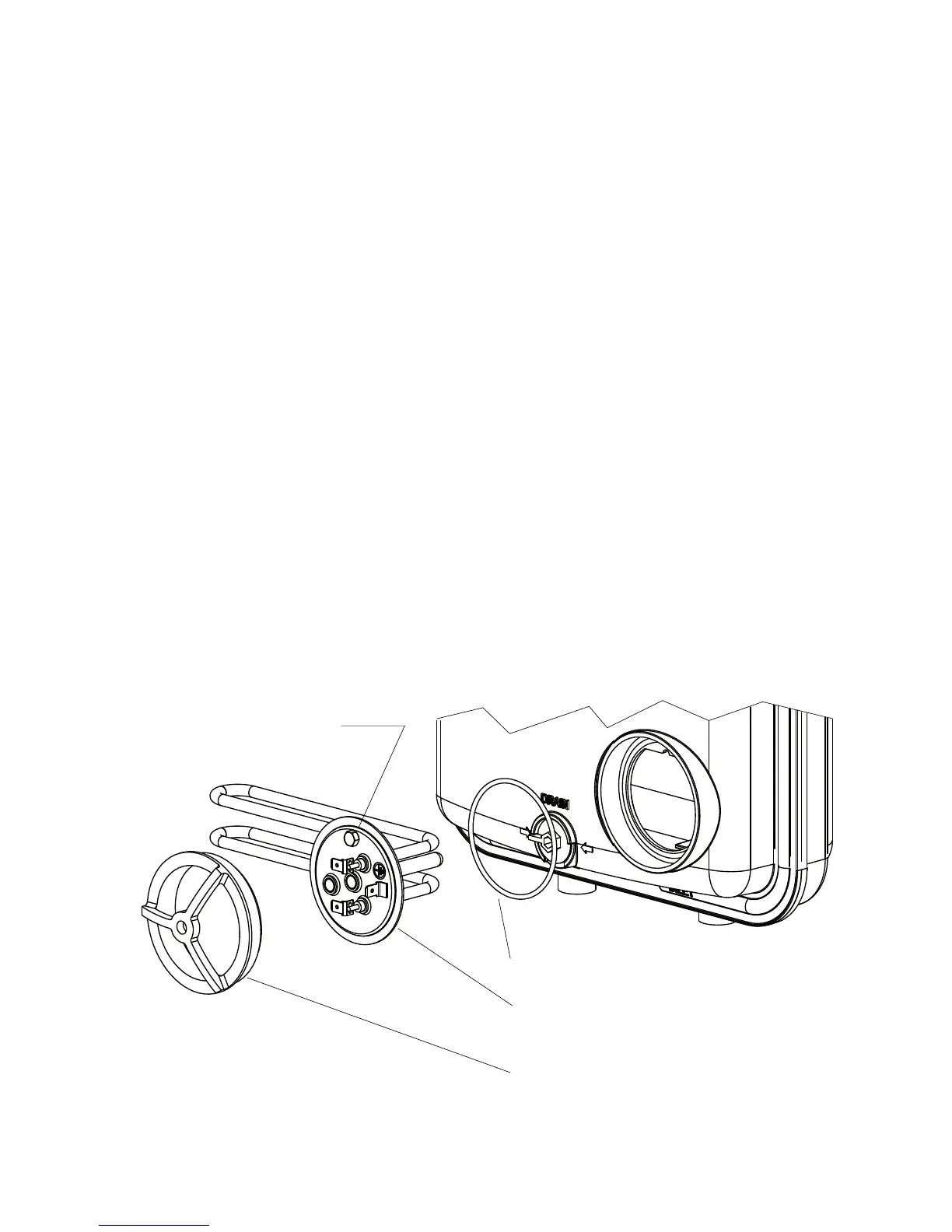

FIGURE 10 - ELEMENT PLATE ASSEMBLY
LOCKNUT
GASKET
ELEMENT PLATE ASSMBLY
LOCATION PIN
