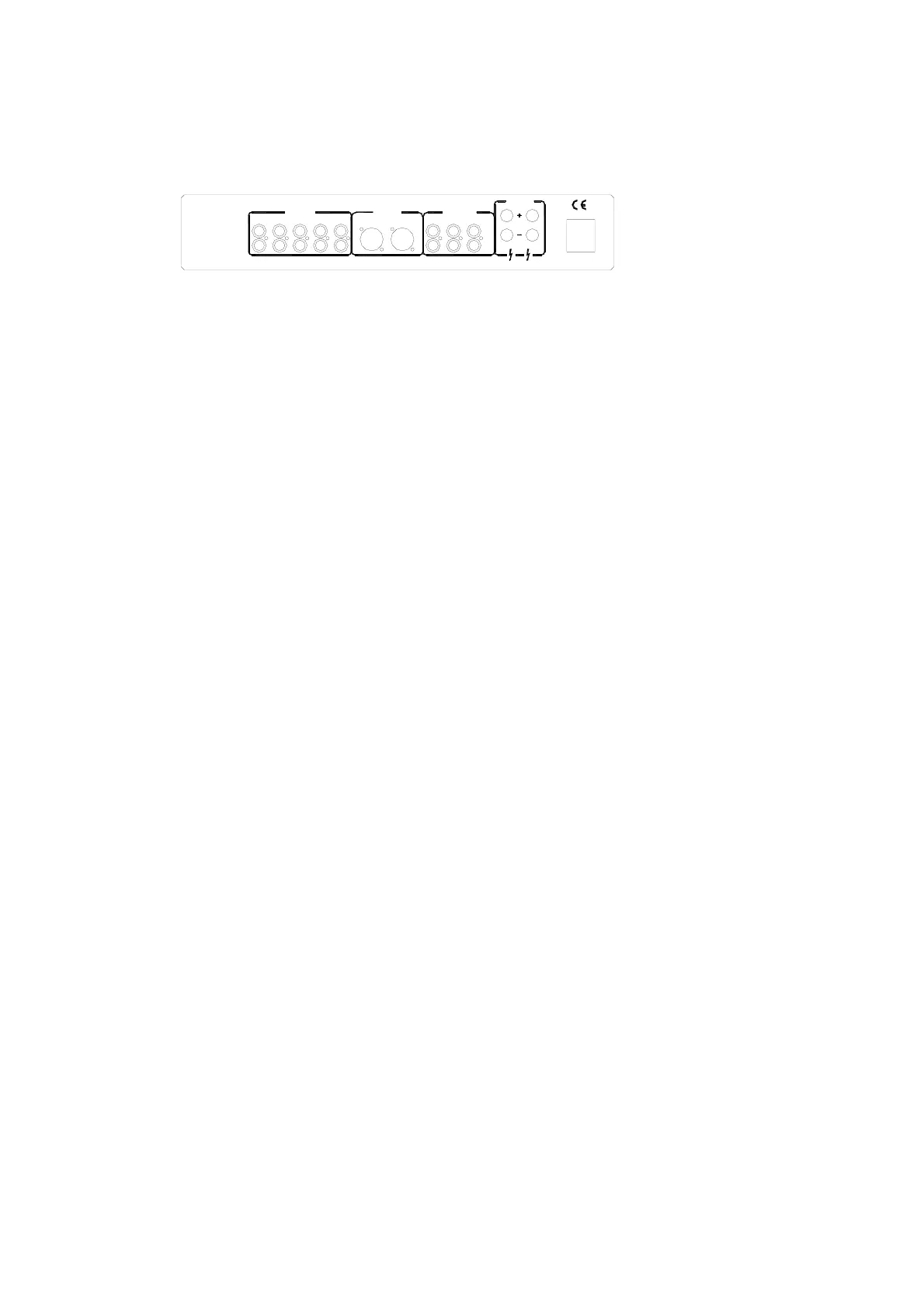

Hegel H1 - REAR PANEL CONNECTORS; Signal Input Terminals; Audio Output Terminals

Amplifier circuit protected by
Hegel US Patent no.6.275.104
H1
Integrated Audio Amplifier
Hegel Oslo. Norway
DVD
Unbalanced Input
CD Tape Aux.Tuner
Balanced Input
Right Left
Right channel
Right
Left
Unbalanced Output
PreOut 1Tape PreOut 2
Audio Outputs
Left channel
From left to right the connectors are:
Signal input Phono / RCA, right / left DVD
Signal input Phono / RCA, right / left CD
Signal input Phono / RCA, right / left tape
Signal input Phono / RCA, right / left tuner
Signal input Phono / RCA, right / left Aux.
Balanced signal input XLR right / left
Tape output Phono / RCA, right / left
Pre output 1 Phono / RCA, right / left
Pre output 2 Phono / RCA, right / left
Speaker output right
Speaker output left
AC Power connection 230V / 115V / 100V AC dependent on country. Fuse holder.
The preamplifier section of the H1 has two types of audio inputs: unbalanced audio signal with RCA
plugs (phono plugs) and true balanced audio signal with XLR plugs (pin 2 is positive phase, pin 3 is
negative phase and pin 1 is chassis earth).
