Designation Technical specifications
Protection rating IP54
Residual current detection DC 6 mA
Ambient temperature -25 °C to +40 °C
Ventilation No ventilation required
Protection class I
Overvoltage category III
Dimensions (HxWxDx) 386 mm x 295 mm x 112 mm
Weight approx. 8 kg
Tab. 1
1.7 Protective devices
FS.110.0373-000GRAUND_01

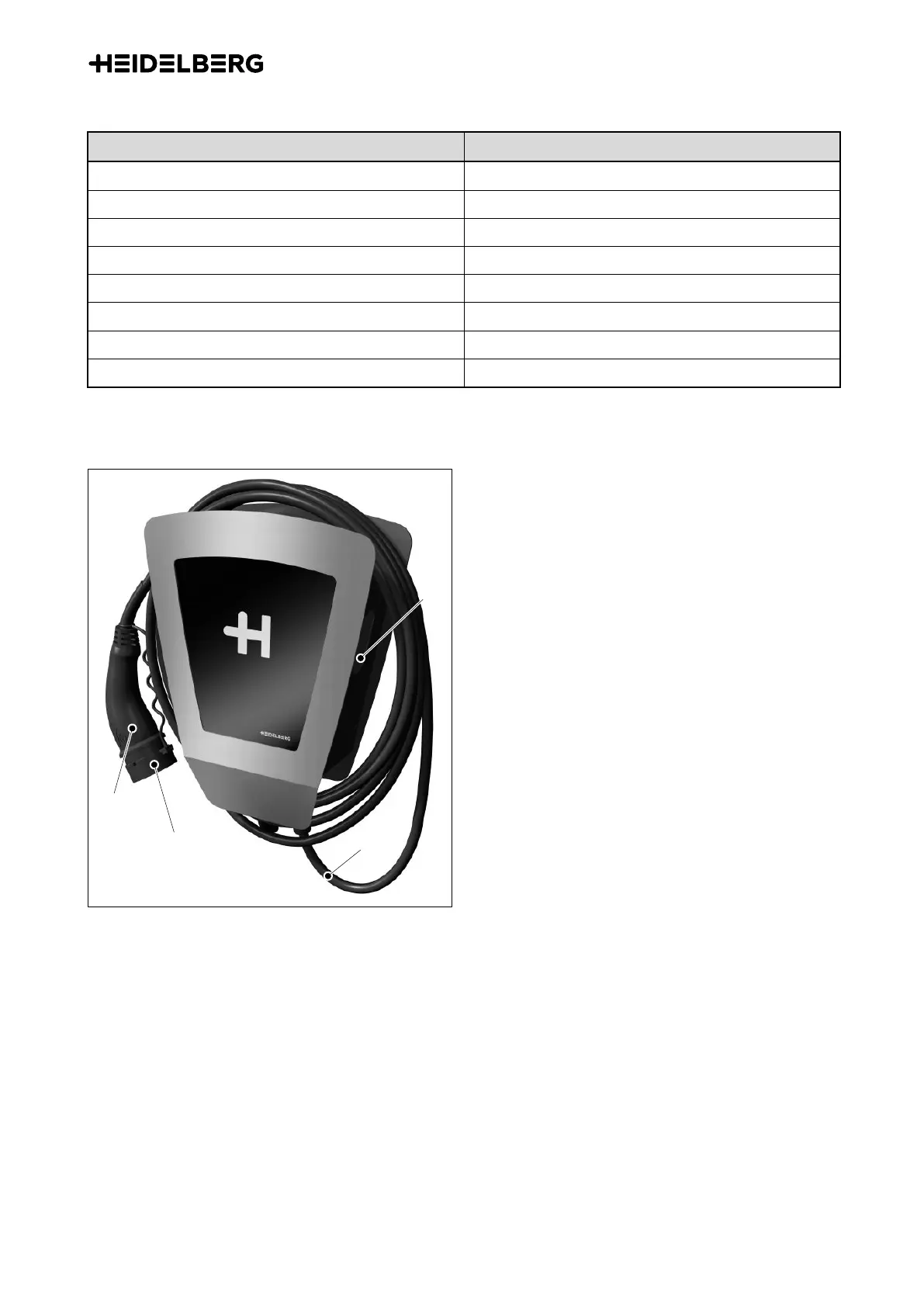

Fig. 1 Charging system
The following components are protective devices:
1 Housing
2 Charging cable
3 Protective cover
4 Charging coupler
Checking the protective devices
1. Before
every charging process, make a visual in‐
spection of the protective devices for damage.
2. Have a qualified electrician make regular electri‐
cal function tests in accordance with the national
regulations.
Safety instructions
00.999.3046/ A.1.7
