HEIDENHAIN POSITIP 880 - Position Drill

62 I Operating Instructions
I – 6 Programming POSITIP 880
Position Drill
Point X1: 20 mm
Point Y1: 20 mm
Depth: Z = -12.00 ABS
POSITION DRILL function will move your table to the position you
want based upon your desired X and Y values.
In the operating mode PROGRAMMING you can use the POSITIP 880 for
a position drill.
Select the cycle with the POSITION/DRILL soft key, and enter the
required data. See Fig. I.48. This data can usually be taken quite easily
from the workpiece drawing.
Example: Enter data for a position drill
Operating mode: PROGRAMMING
Press the PROGRAMMING FEATURES soft key.
Press MORE soft key.
Press the POSITION/DRILL soft key.
Begin data entry.
Enter the point for X. Press ENT.
Enter the point for Y. Press ENT.
Enter the cut depth. Press ENT.

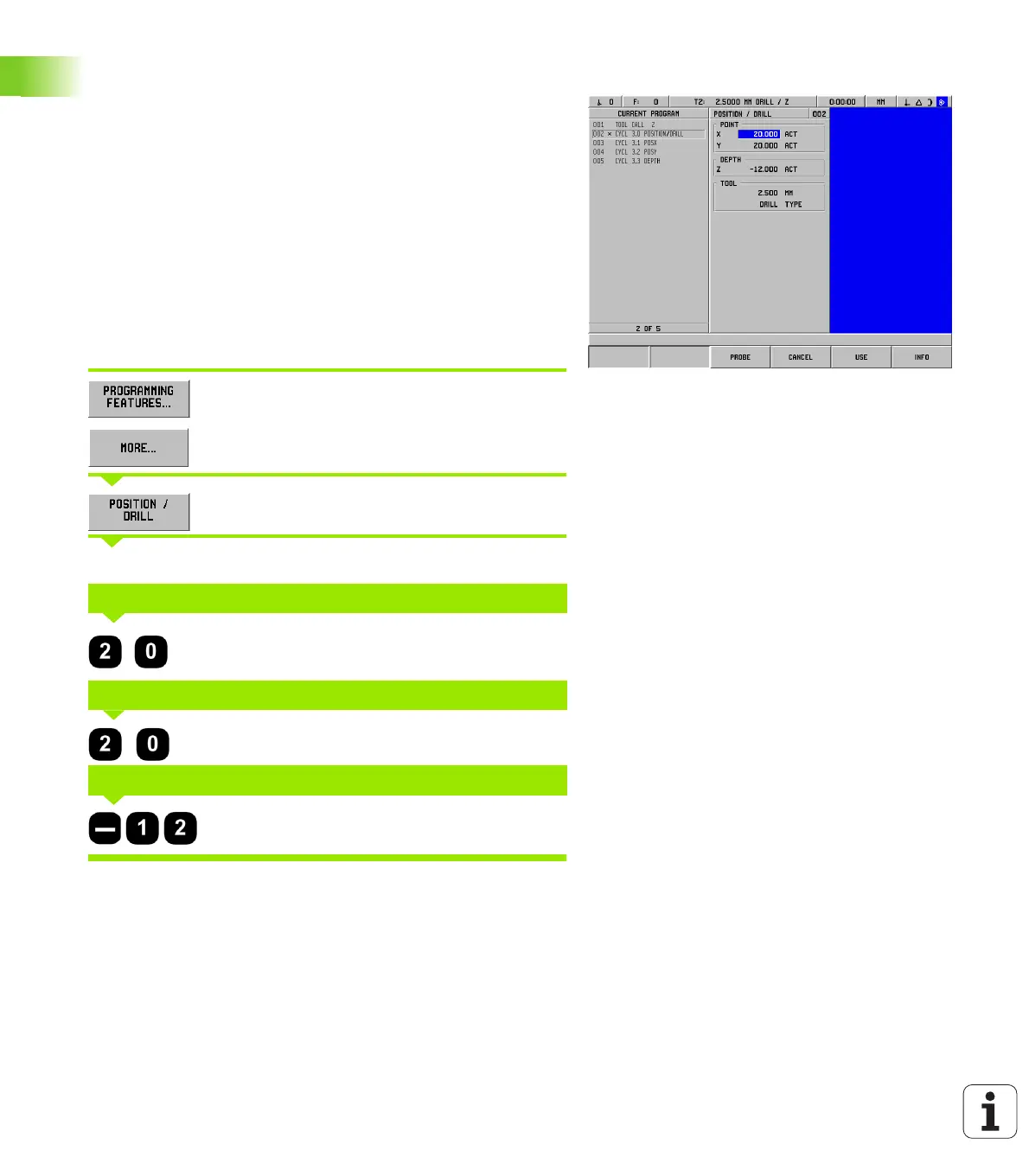

Fig. I.48 POSITION/DRILL form
X
Y
DEPTH
