8 Programming: Cycles
184

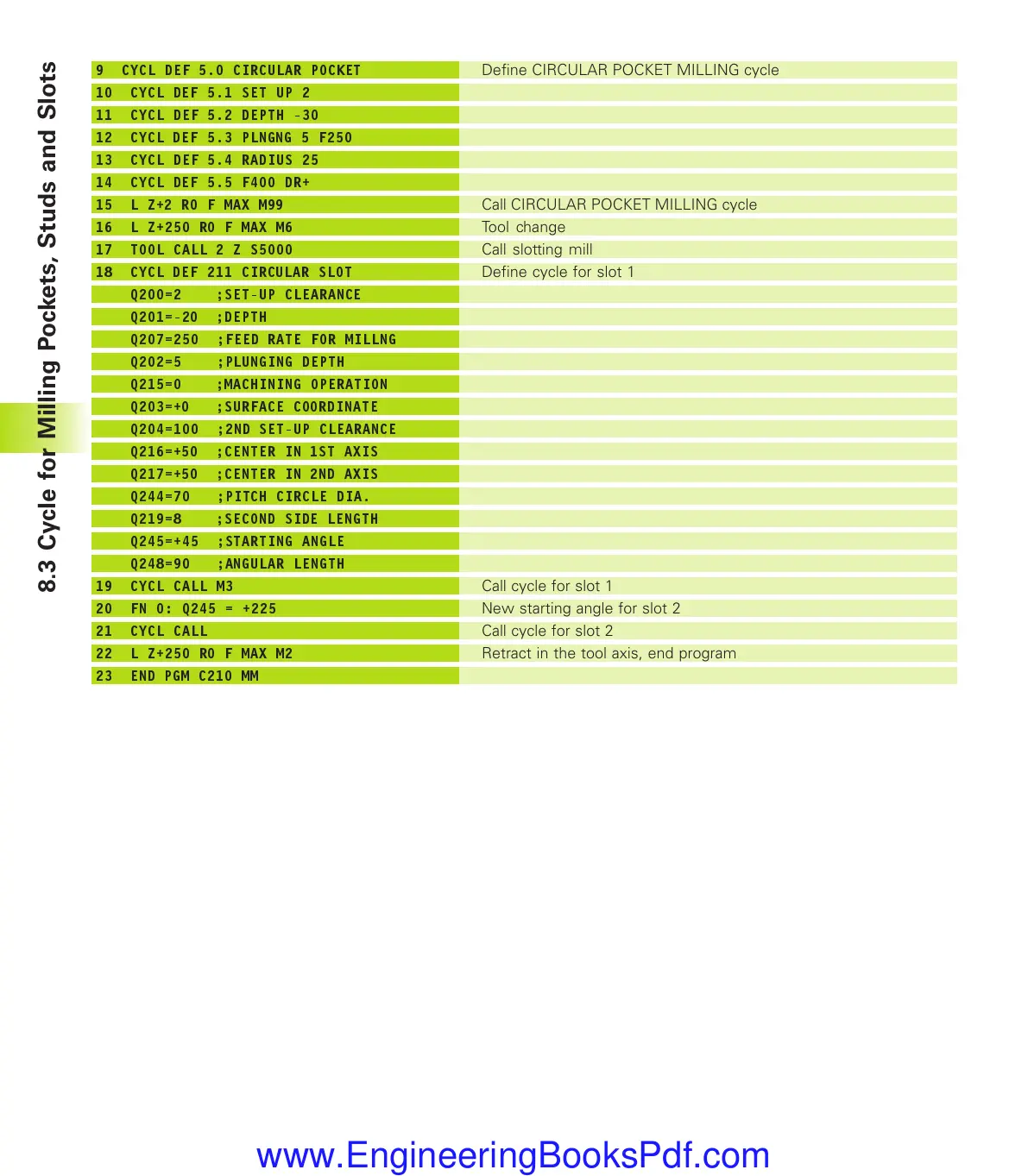

9 CYCL DEF 5.0 CIRCULAR POCKET
10 CYCL DEF 5.1 SET UP 2
11 CYCL DEF 5.2 DEPTH -30
12 CYCL DEF 5.3 PLNGNG 5 F250
13 CYCL DEF 5.4 RADIUS 25
14 CYCL DEF 5.5 F400 DR+
15 L Z+2 R0 F MAX M99
16 L Z+250 R0 F MAX M6
17 TOOL CALL 2 Z S5000
18 CYCL DEF 211 CIRCULAR SLOT
Q200=2 ;SET-UP CLEARANCE
Q201=-20 ;DEPTH
Q207=250 ;FEED RATE FOR MILLNG
Q202=5 ;PLUNGING DEPTH
Q215=0 ;MACHINING OPERATION
Q203=+0 ;SURFACE COORDINATE
Q204=100 ;2ND SET-UP CLEARANCE
Q216=+50 ;CENTER IN 1ST AXIS
Q217=+50 ;CENTER IN 2ND AXIS
Q244=70 ;PITCH CIRCLE DIA.
Q219=8 ;SECOND SIDE LENGTH
Q245=+45 ;STARTING ANGLE
Q248=90 ;ANGULAR LENGTH
19 CYCL CALL M3
20 FN 0: Q245 = +225
21 CYCL CALL
22 L Z+250 R0 F MAX M2
23 END PGM C210 MM
Define CIRCULAR POCKET MILLING cycle
Call CIRCULAR POCKET MILLING cycle
Tool change
Call slotting mill
Define cycle for slot 1
Call cycle for slot 1
New starting angle for slot 2
Call cycle for slot 2
Retract in the tool axis, end program
8.3 Cycle for Milling Pockets, Studs and Slots
