8 Programming: Cycles
204

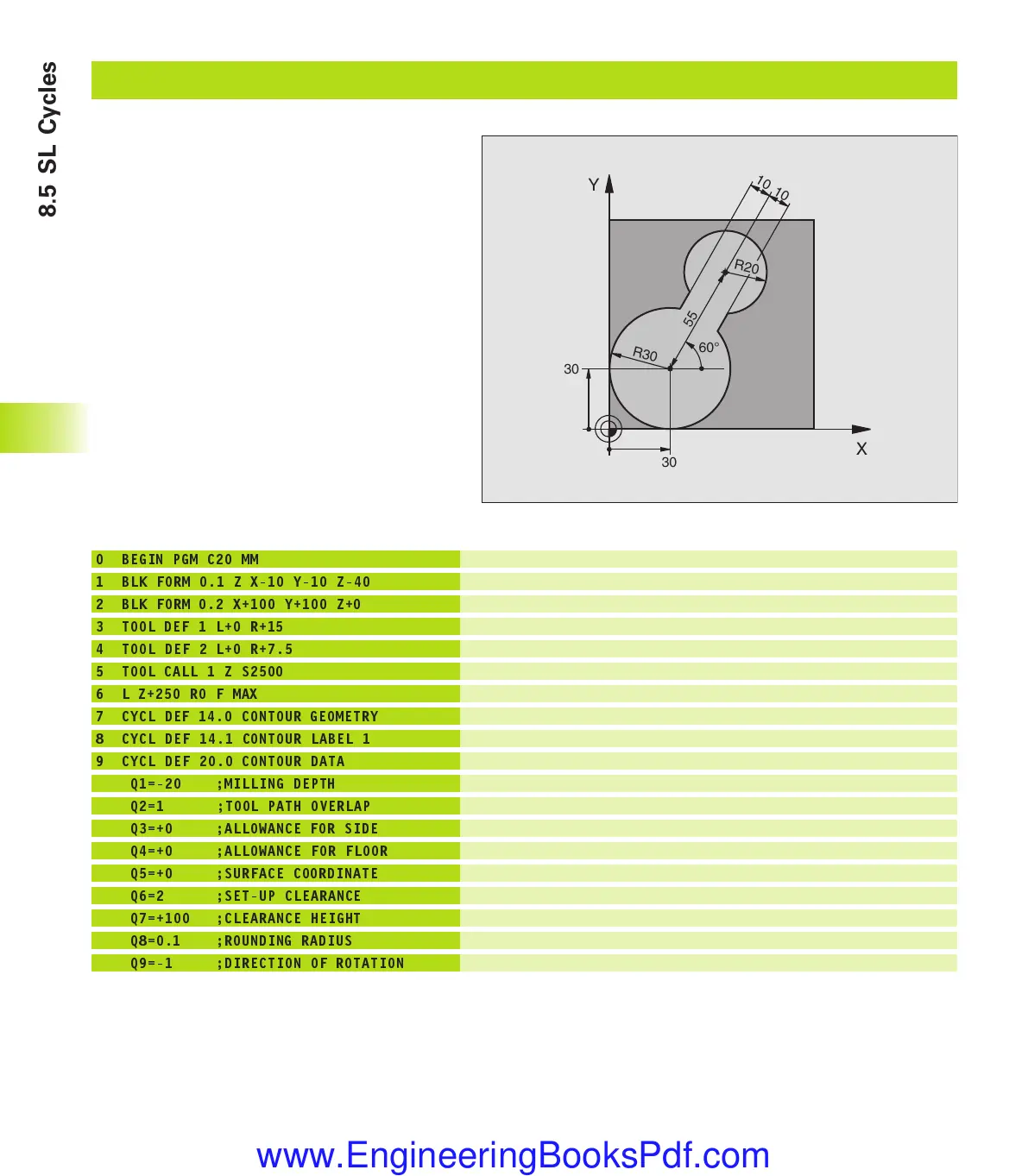

Example: Roughing-out and fine-roughing a pocket
Define the workpiece blank
Tool definition: coarse roughing tool
Tool definition: fine roughing tool
Tool call: coarse roughing tool
Retract the tool
Define contour subprogram
Define general machining parameters
0 BEGIN PGM C20 MM
1 BLK FORM 0.1 Z X-10 Y-10 Z-40
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL DEF 1 L+0 R+15
4 TOOL DEF 2 L+0 R+7.5
5 TOOL CALL 1 Z S2500
6 L Z+250 R0 F MAX
7 CYCL DEF 14.0 CONTOUR GEOMETRY
8 CYCL DEF 14.1 CONTOUR LABEL 1
9 CYCL DEF 20.0 CONTOUR DATA
Q1=-20 ;MILLING DEPTH
Q2=1 ;TOOL PATH OVERLAP
Q3=+0 ;ALLOWANCE FOR SIDE
Q4=+0 ;ALLOWANCE FOR FLOOR
Q5=+0 ;SURFACE COORDINATE
Q6=2 ;SET-UP CLEARANCE
Q7=+100 ;CLEARANCE HEIGHT
Q8=0.1 ;ROUNDING RADIUS
Q9=-1 ;DIRECTION OF ROTATION
X
Y
30
30
R30
R20
60°
55
10
10
8.5 SL Cycles
