10 Translation of the original instructions / Small animal clipper

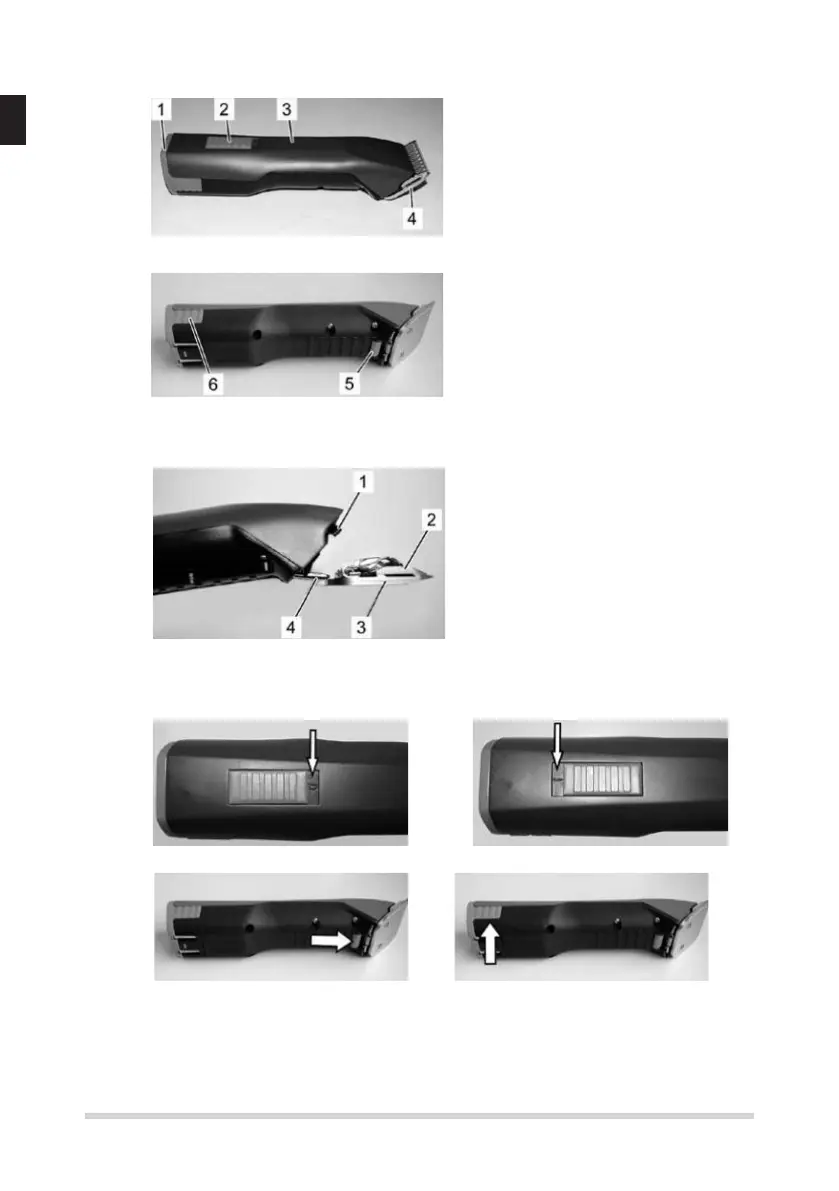

4.2 Overview
1 Battery
2 Switch lever
3 Clipper
4 Clipperhead
5 Interlock clipperhead
6 Interlock battery
Fig. 1
Fig. 2
4.3 Abstract
Fig. 3
The clipper serves to clip dogs,
cats, cattle and horses. Two comb-
shaped blades are the cutting tool.
The bottom blade facing the skin (3)
is standing rm and is xed on the
blade hinge (4). The top blade (2)
is agitated crossways that one. The
top blade is moving by the help of
a turning lever (1).
4.4 Operating elements
Fig. 4 Switch in OFF-position (“0”) Fig. 5 Switch in ON-position (“I”)
Fig. 6 Interlock clipperhead Fig. 7 Interlock battery
