CHAPTER 9 IMAGINGWIN - REGISTER CARDS
141

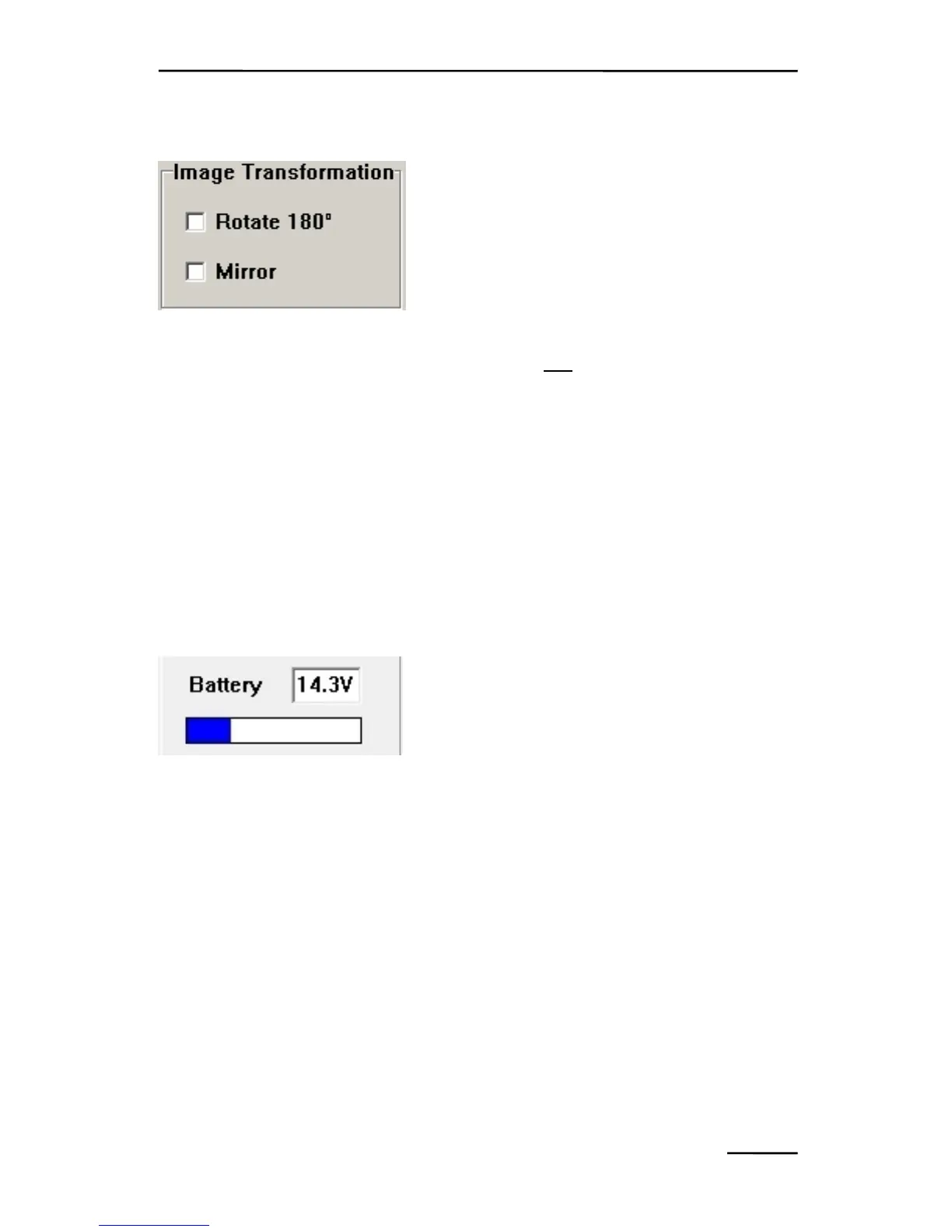

9.5.6 Image Transformation
The display of images can be
changed by the Image Transformation
function in order to account for
different positions of the camera with
respect to the user. Images can be
rotated by 180° or mirrored along the vertical midline. Default
settings (Rotate 180° and Mirror boxes not checked) apply for use
of the standard configuration, with the camera pointing downwards
and its wide side pointing towards the user. If, for example, in a
special application the Measuring Head would be pointing upwards,
the shifting of a sample to the left and the right (or up and down)
would cause opposite changes of the displayed image. In this case,
checking Rotate 180° as well as Mirror would be appropriate.
9.5.7 Battery
The Battery-status is indicated by a
blue bar, the height of which represents
the remaining capacity. In addition, the
battery voltage is shown. Please note
that the status display is updated in the Measure-mode only. The
display is updated every minute, except during Light Curve or
Induction Curve recordings. When the Battery Charger 2120-N is
connected, high capacity is indicated even when the battery is only
partially charged. Hence, the true Battery-status should be evaluated
with the Battery Charger being disconnected. When 14.0 V is
reached there is a Low Battery warning. At 13.5 V the instrument is
automatically switched off. The instrument should not be stored with
a discharged battery, which should be recharged every three month.
