9 Electrical installation
9.6.6 Connection without line surveillance (DIP 1 OFF)
The system is operated with three smoke switches and an external DKT 02.

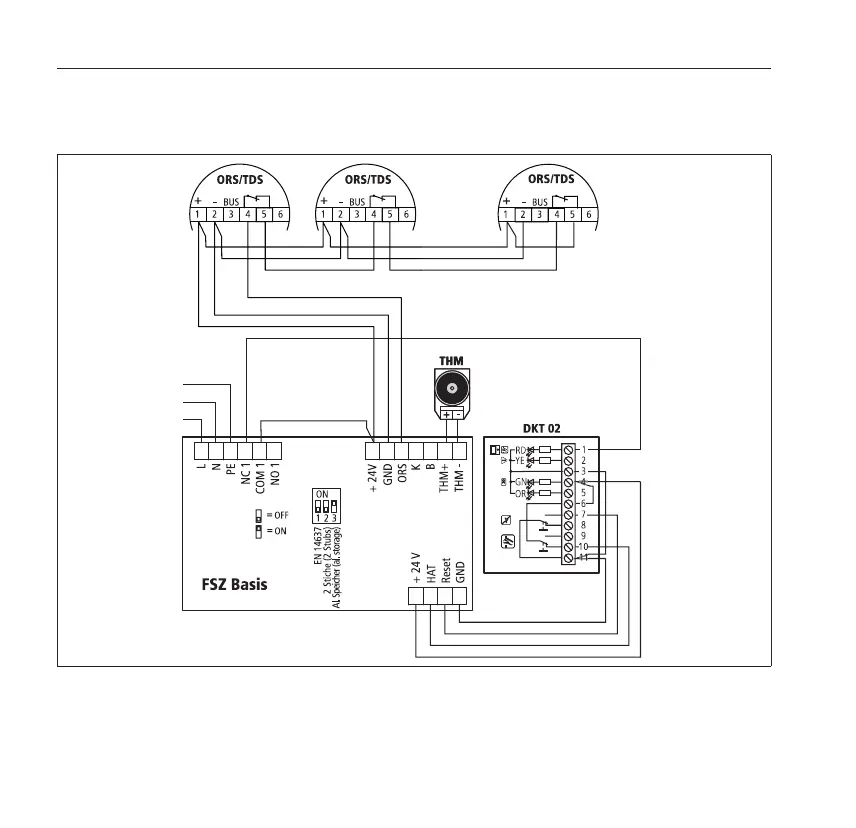

Fig. 10: Example connection without line surveillance with DTK 02
