Parker Hannifin Corporation
Helac/Cylinder Division
Enumclaw
, W
ashington USA
www
.helac.com
Helical, Hydraulic Rotary Actuators
L20 Series Service & Repair Manual
Catalog HY34-1120

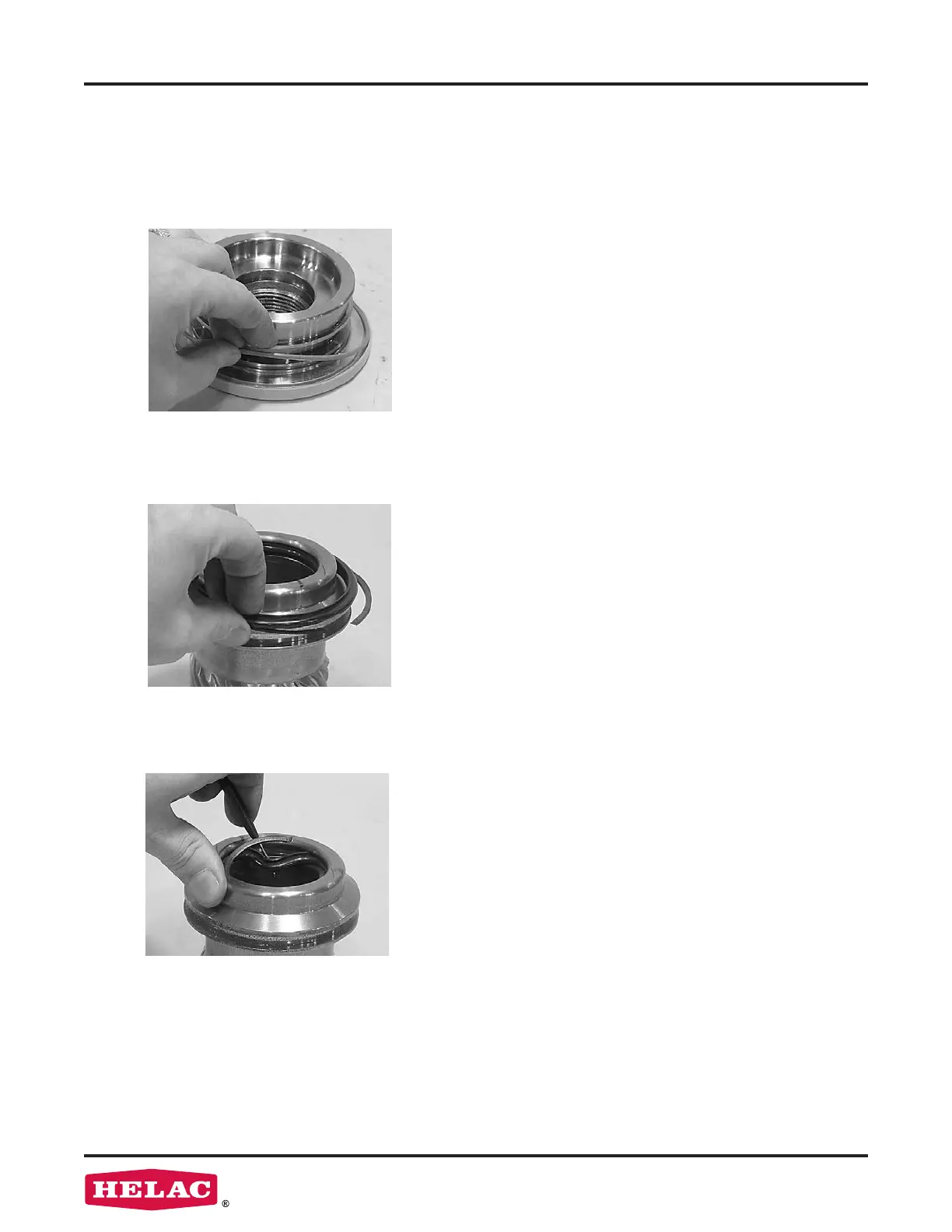

Disassembly
Disassembl
y
20.
Remove the outside diameter piston seal
(202) from the piston.
21.
Remove the inside diameter piston seal
(200).
19.
Remove the O-ring (206) from its groove
in the end cap (04) and shaft (02).
14
16
Table of Contents
Introduction Table of Contents
2
Table of Contents
2
General Safety Guidelines
3
Product Introduction
3
Product Identification
4
Operation Technology
5
Tools
6
Tools Required
6
Drawings
7
Spare Parts
7
Assembly Drawing
8
Exploded View
9
Parts List
10
Disassembly
11
Before Disassembly
11
Disassembly before Disassembly
11
Inspection
16
Assembly
17
Assembly Assembly
17
Post Assembly
22
Grease Thrust Washers
22
Testing the Actuator
23
Installation and Bleeding
24
Troubleshooting Guide
25
Warranty Information
26
