21

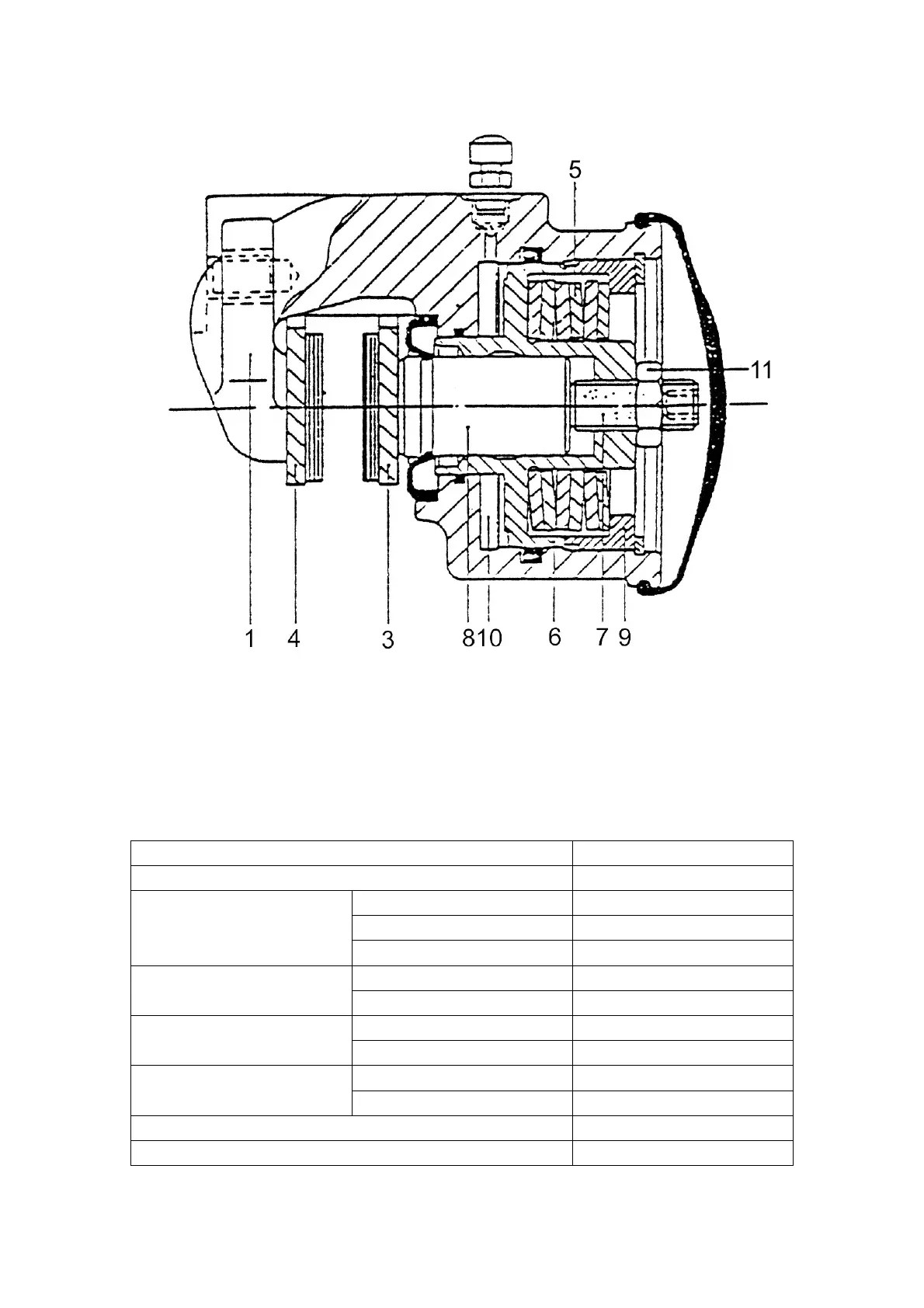

(1)Oil cylinder and braking caliper assembly (2)Piston (3)Friction lining
(4)Spring (5)Pushrod (6)Washer (7)Adjusting stud
(8)Locking nut (9)Oil chamber (10)Oil seal (11)O ring (12)Dust ring
Fig.3-1 Parking Brake
3.3 Primary Parameter of Drive Axle
CPCD140～160-Cu
Type Full-flowing, Box-weled axle
Tire 12.00－24－20PR
Rim 8.5-24
Drive Axle
Air Pressure 0.88MPa
Type Helical Bevel Gear Type
Differential
Speed Reduction Ratio 2.92
Type Planetary Gear Yype
Hub Reduction
Speed Reducton Ratio 6.0
Differential 19L
Oil Capacity
Hub Reduction 2.8x2L
Total Speed Reduction Ratio 17.52
Oil Type LS90
