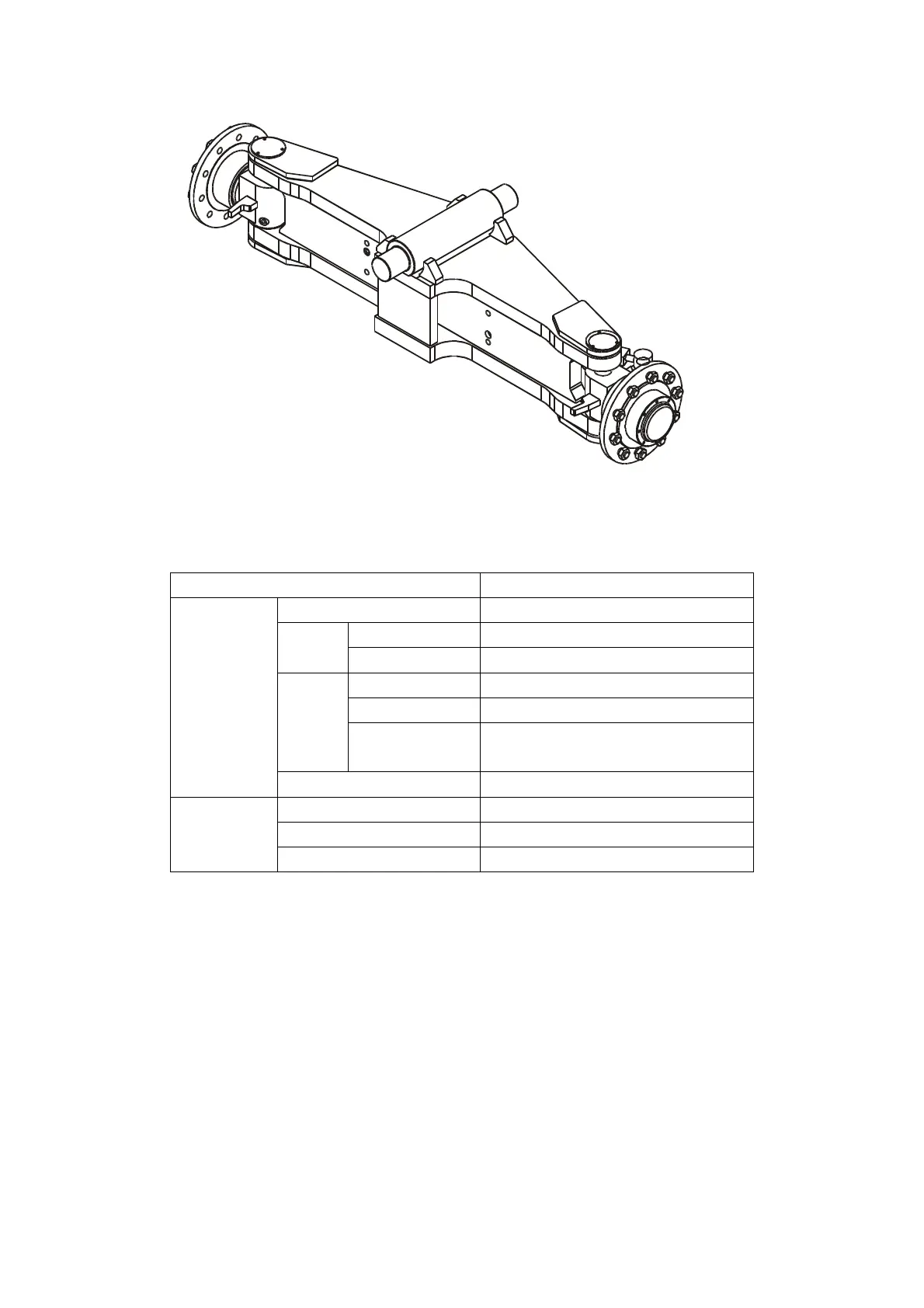

Fig. 5-1 Steering Axle
The main specifications of the steering axle
Model CPCD140～160
Type Supporting in middle
Inner wheel 80° Steering
angle
Outer wheel 56.19º
Interval 1800mm
Inner obliquity 0°
King
pin
Outer obliquity
of wheel
1°
Steering axle
Weight 1240
Tire 12.00-20-18PR
Rim 8.5-20
Steering(rear)
wheel
Inflation Pressure 0.88MPa
5.2 Steering Knuckles and King Pin
Both steering knuckles are fitted between the upper and the lower bushes by two
king pins, tapered bearings and adjustive pads.
5.3 Steering(rear) Wheel Bearing Pre-load Adjustment
(1) With lubricating grease, fill up the chamber formed by wheel hubs,wheel hub
bearings, wheel hub covers and coat of the lips of the oil seals
(2) Press the hub bearings into the hub and fit the hub on the knuckle shaft.
(3) Fit a flat washer and tighten a castle nut to a torque of 206-235Nm and loosen it
