HELIX HLT2500 Assembly Manual

3/ ASSEMBLY
- 8 -
Step 3:
Insert the Stabilizer Leg assembly bolts into the legs and secure as shown.
Tightentheseboltsrmly.
Step 4:
Align the bolt holes on the pedal frame with the bolts on the yoke of the
Crankarm.ThesetwopartsshouldttogethertoallowthePedalFrame
andyoketobecomeevenandushwitheachother.
Whileholdingtheframeinplace,rstinstallthetopboltspartiallytoallow
the pedal frame to “hang” on those bolts. Now partially install the bottom
left and bottom right bolts.
Slowly tighten all the bolts until the two parts become perfectly aligned to
eachotherwithnospacebetweentheparts.Thenrmlytightenallfour
bolts.
Repeat for the other Pedal Frame.
PLEASE NOTE THAT VISUAL INSPECTION IS REQUIRED TO
CONFIRM THAT THE PEDAL FRAME FLANGE AND THE CRANK YOKE
ARE ALIGNED AND FLUSH TO EACH OTHER.
Failuretoconrmthismayresultinboltfailure.

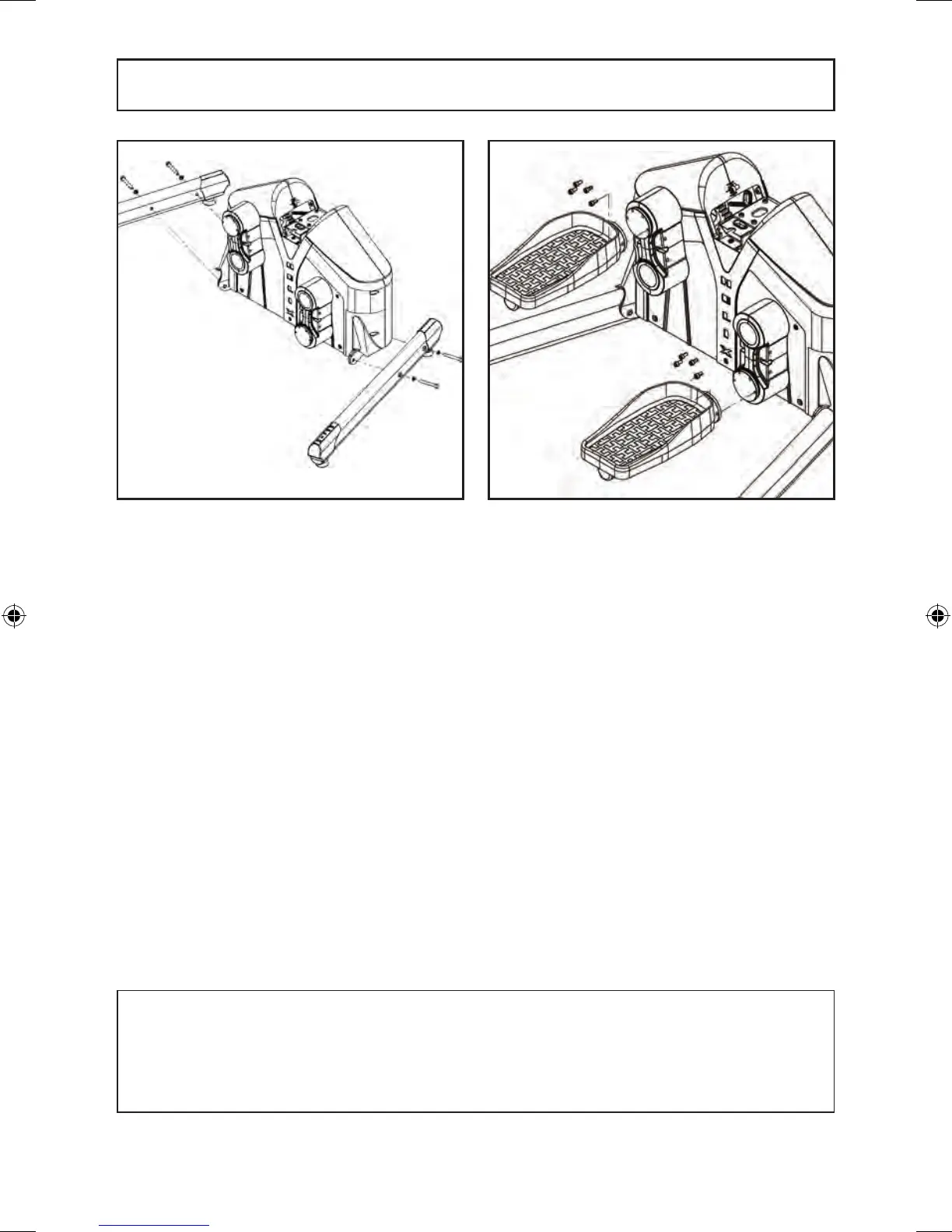

Step 3: Step 4:
A5-HLT3500.indd 8 14/12/2012 19:48
